6.19 Group d0
The parameters of Group d0 are used to monitor
some states of drives and motors.
d0.00 Main reference
frequency
This parameter is used to monitor main reference
frequency at normal operation mode.
d0.01 Auxiliary
reference frequency
This parameter is used to monitor the auxiliary
reference frequency at normal operation mode.
This parameter is used to monitor the frequency
combined by main reference frequency and
auxiliary reference frequency. Positive indicates
running forwards, negative indicates running
reverse.
d0.03 Frequency after
Acc/Dec
This parameter is used to monitor the drive’s output
frequency (include direction) after the drive
accelerating or decelerating.
This parameter is used to monitor the drive’s output
frequency (include direction).
This parameter is used to monitor the drive’s output
voltage.
This parameter is used to monitor the drive’s output
current.
This parameter is used to monitor the percentage of
drive’s torque current that corresponding to the
motor’s rated current.
d0.08 Magnetic flux current
This parameter is used to monitor the percentage of
drive’s magnetic flux current that corresponding to
the motor’s rated current.
This parameter is used to monitor the percentage of
drive’s output power that corresponding to the
motor’s rated power.
d0.10 Motor
estimated frequency
This parameters is used to monitor the estimated
motor rotor frequency under the condition of
open-loop vector control.
d0.11 Motor actual
frequency
This parameter is used to monitor the actual motor
rotor frequency measured by encoder under the
condition of close-loop vector control.
This parameter is used to monitor the drive’s bus
voltage.
d0.13 Drive
operation status

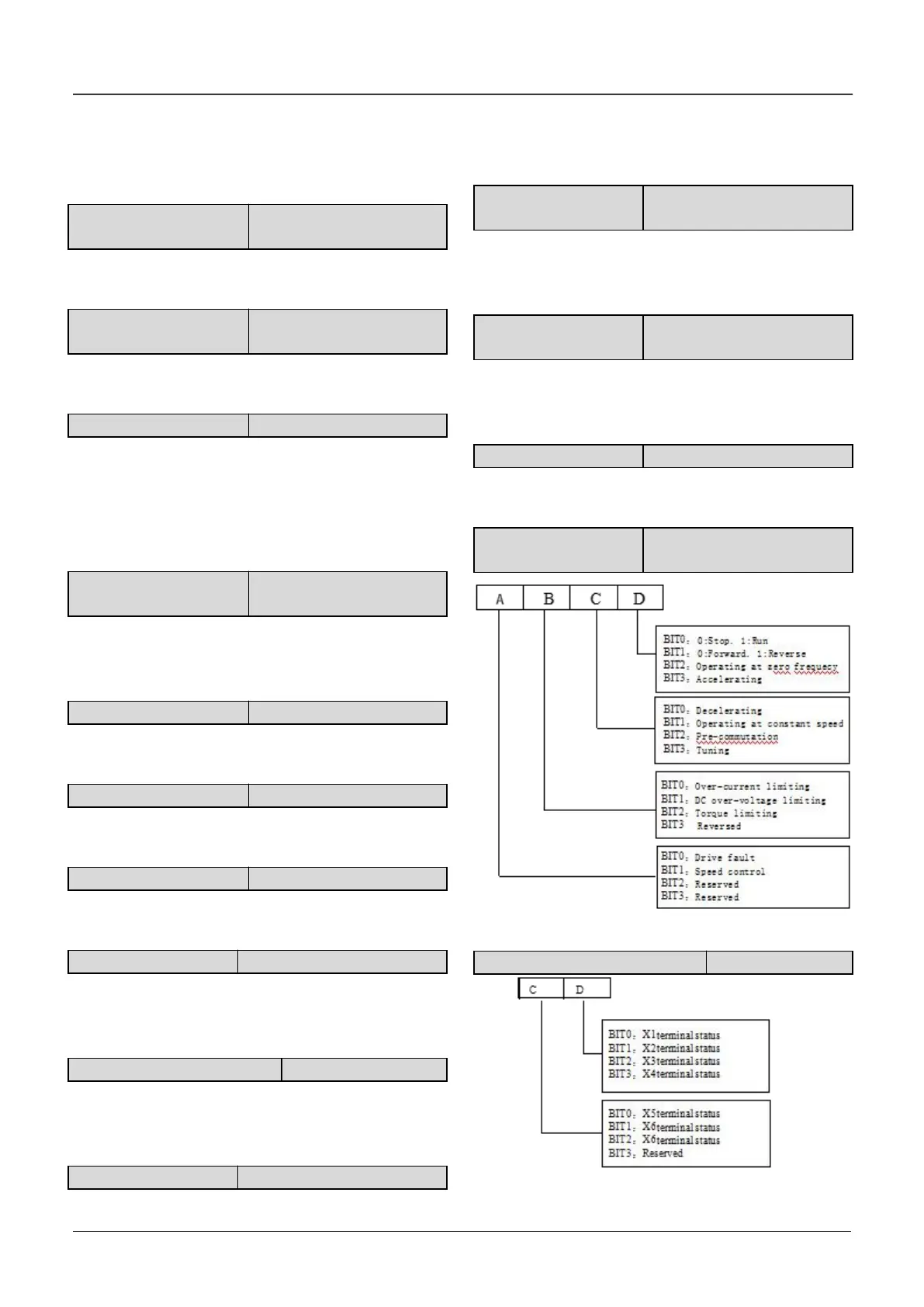

Fig.6-47 The drive’s operation status
d0.14 Input terminals status
Fig.6-48 Input terminals status
