Kinco-HP
User
Manual
23
System
will
show
”Display
Mode”,
we
can
choos
e
“Horizonta
l”
or
“Vertical
”
Click
【
OK
】
③
cho
ose
device—ch
oose
PLC
type
（
co
mmunication
protocol
）

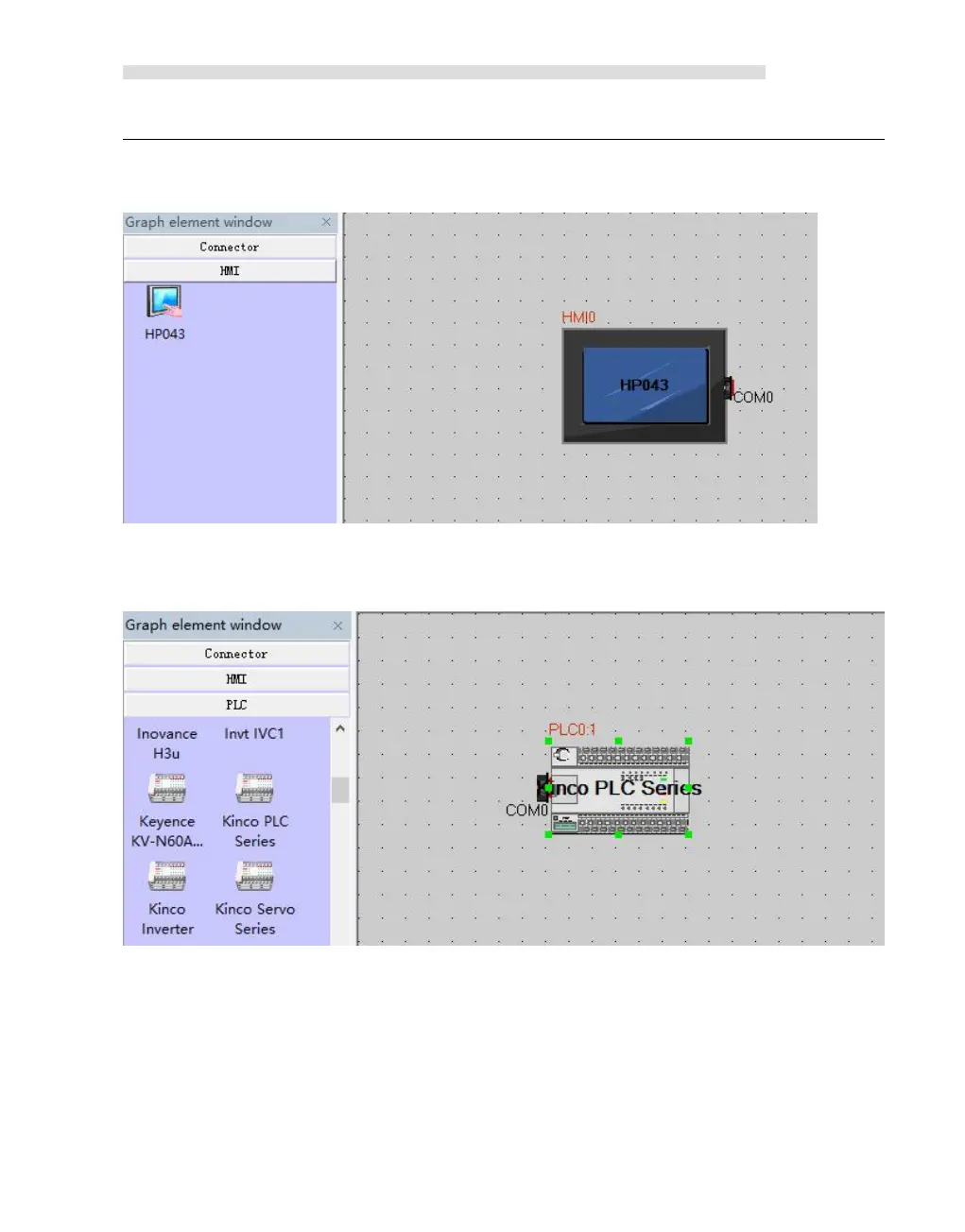

Drag
“Kin
co
PLC
se
ries”
in
【
Graph
ele
ment
window
】
to
co
nstruct
window
1.3
co
nnect
devices
Drag
“CO
M”
of
HMI
to
close
left
side
of
connector,
until
connector
and
“
COM”
move
together.
Co
nnec
t
PLC
and
serial
p
ort
with
sa
me
way.
22
24
Table of Contents
default chapter
1
Table of Contents
1
Chapter 1 General Introduction
3
Summary
3
Product List
3
Environmental Condition
3
Specification
5
Display Specification
5
PLC Specification
5
Appearance
9
Dimension
11
Chapter 2 PLC Introduction
11
Functions
11
CPU Status and Leds
11
USB Programming Port
12
Serial Communication Port
13
High Speed Counter and High Speed Pulse Output
13
Edge Interrupts
14
Data Retentive and Data Backup
14
Real-Time Clock (RTC)
15
Backup Battery
15
Wiring Diagram
16
Dimension
19
Technical Specification
20
Chapter 3 Software Introduction
22
HMI Programming
22
Create Project
22
Edit Configuration
25
Download Link for HMI Manual
25
Plc
25
Introduction
25
Install Driver of USB Programming Port
25
High Speed Counter
38
Operation Modes and Inputs of the High-Speed Counters
38
Control Byte and Status Byte
39
Preset Value (PV Value) Setting
41
CV=PV" Envent no
43
How to Use High Speed Counter
44
How to Use High Speed Pulse Output
46
High Speed Pulse Output Instruction
47
How to Use PLS Instruction
47
High-Speed Pulse Output Function of HMI-PLC
48
PTO/PWM Register
50
PTO Operations
51
PWM Operations
53
How to Use Position Control Instructions
54
How to Modify the Current Value of Position Control Instructions
54
Can It Change Maximum Output Frequency When Position Control Instruction Is
57
Executing
57
The Use of Analog Quantities
57
Wiring Diagram
58
Measurement Ranges and the Measured Value Representation
58
Configuration in Software
59
