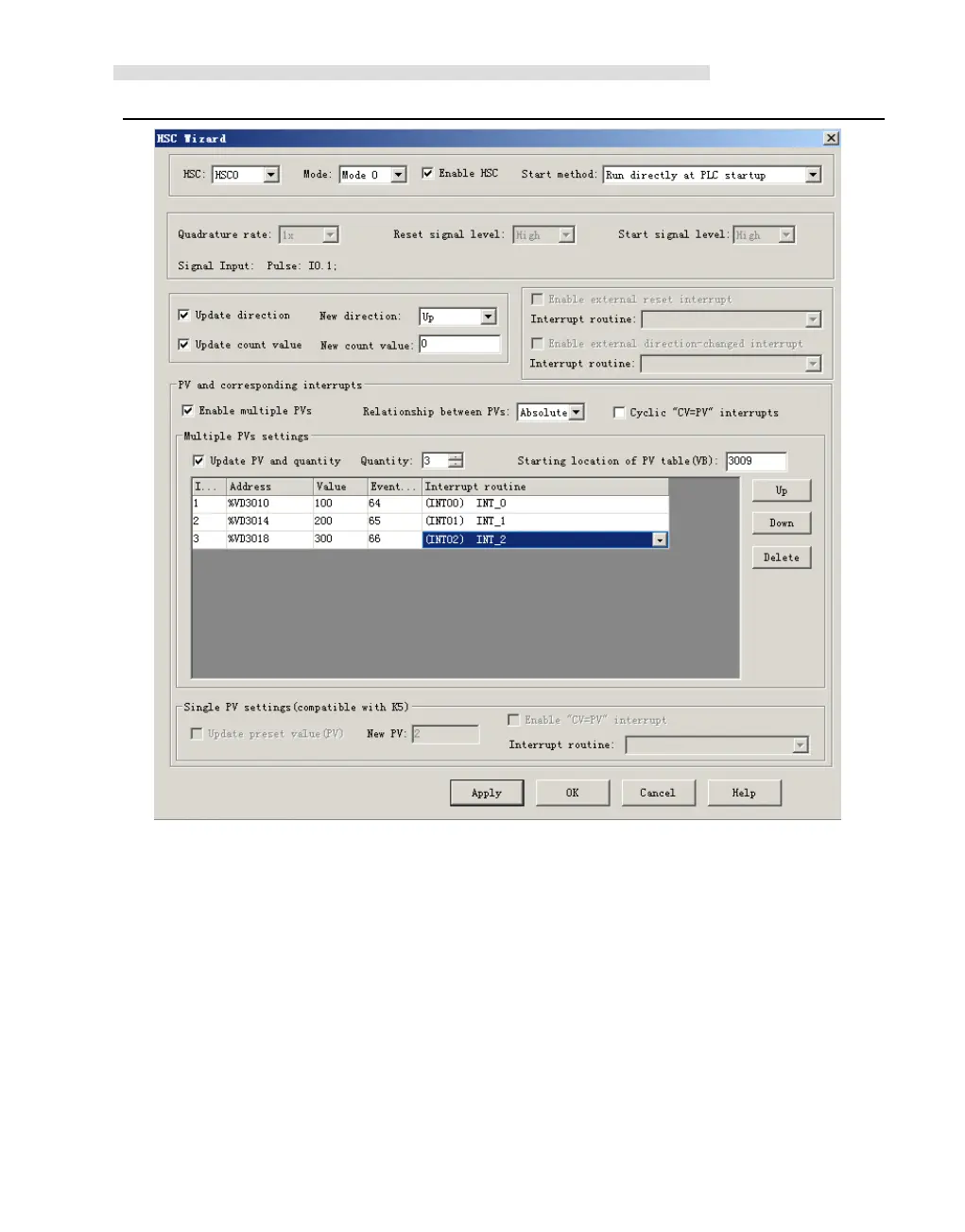

How to use HSC wizard:
1
）
Select the counter in
【
HSC
】
.
2 ） Check 【 Enable HSC 】 , and then continue following configuration.
3 ） Select counter mode in 【 Mode 】 .
4 ） Select the starting mode in 【 Start method 】 .
There are two starting method :
“ Using HSC instruction ” : If selecting this method , then it needs to execute HSC instruction to start the
HSC . Before executing HSC instruction, it doesn ’ t need to configure the registers and execute HDEF
