1. Tighten the hose fitting into the venturi with a torque wrench, up to a torque of 95 to 105 lb./in.
Alternatively, hand tighten securely and then, using a wrench, tighten an additional 1-1 1/2 turns.
2. Go to the Use and Care section of this manual for further instructions.
ADJUSTABLE
REGULATOR
VENTURI TUBE
AIR
SHUTTER
1/8 MALE PIPE
THREAD
WITH ORIFICE
TYPE 1
CONNECTION
* Model May Vary From Picture

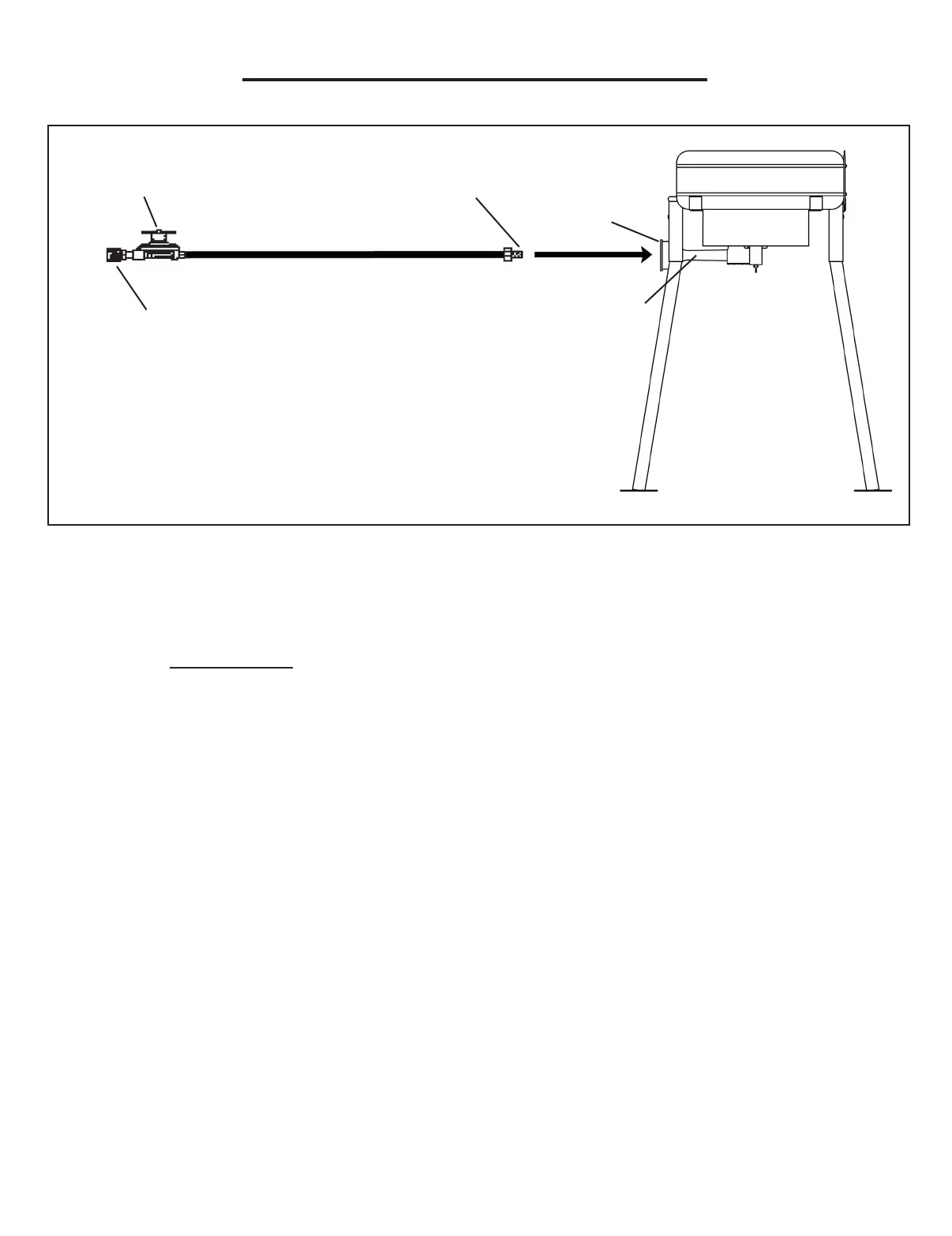

HOSE ASSEMBLY INSTRUCTIONS
