Code Reader Controls
CONTROLS AND INDICATORS
CanScan Controls
CONTROLS AND INDICATORS
Figure 1. Controls and Indicators

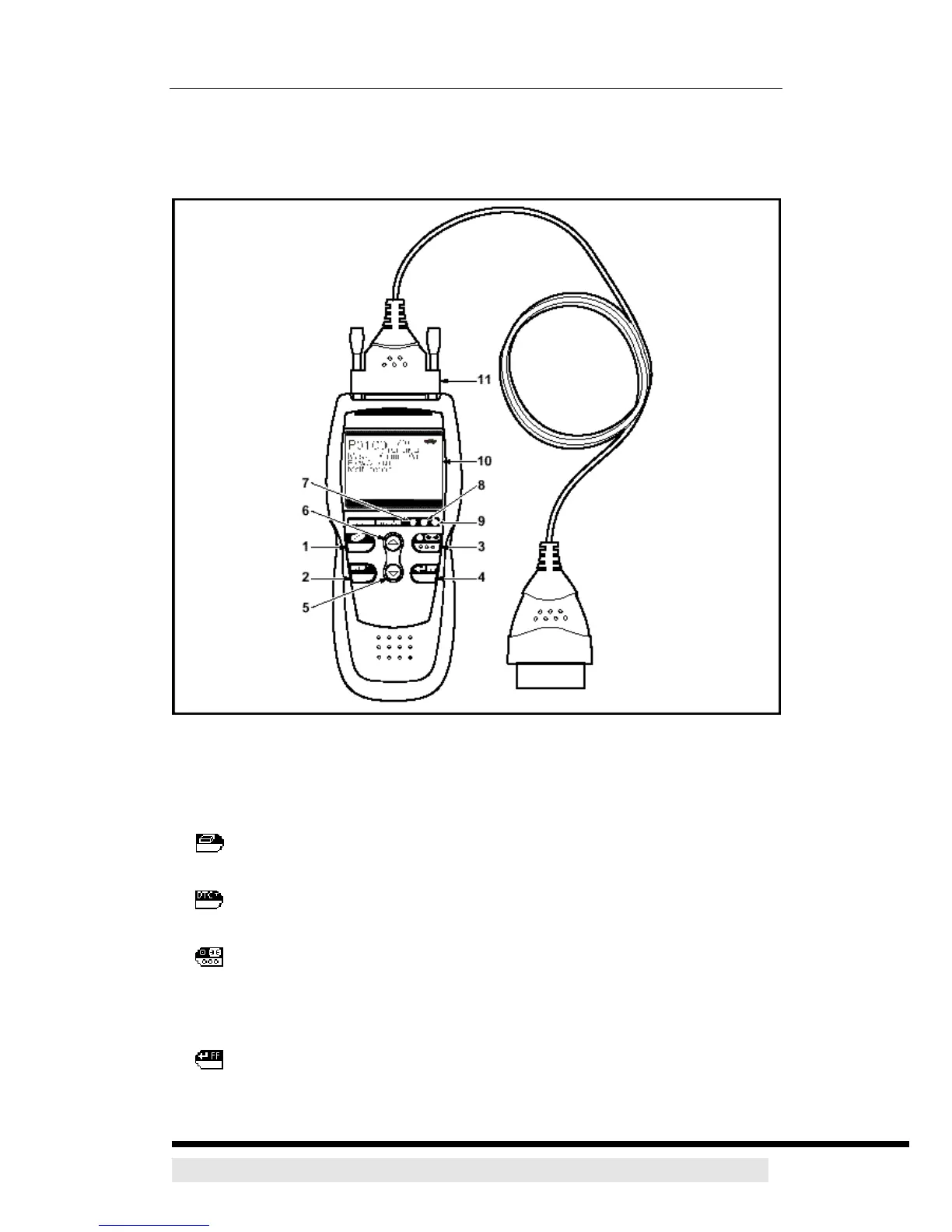

See Figure 1 for the locations of items 1 through 11, below.
1. ERASE button - Erases Diagnostic Trouble Codes (DTCs), and
“Freeze Frame” data from your vehicle’s computer, and resets Monitor status.
2. DTC SCROLL button - Displays the DTC View screen and/or scrolls
the LCD display to view DTCs when more than one DTC is present.
3. POWER/LINK button - When the CanScan IS NOT connected to a
vehicle, turns the CanScan “On” and “Off”. When the CanScan is connected
to a vehicle, links the CanScan to the vehicle’s PCM to retrieve diagnostic data
from the computer’s memory.
4. ENTER/FREEZE FRAME button - When in MENU mode, confirms
the selected option or value. When retrieving and viewing DTCs, displays
Freeze Frame data for the highest priority code.
D900 CanScan 9
