14. 設定針高
針棒在行程的最高點，由左邊算起第 4 支針
距針板面高度為：
調整時拿下孔塞，放鬆螺絲，上下移動
針棒到適當的位置，完成後確實鎖緊螺絲，
再放回孔塞。
※ 注意，移動針棒且不可使針棒轉動造成
縫針與針板干涉。

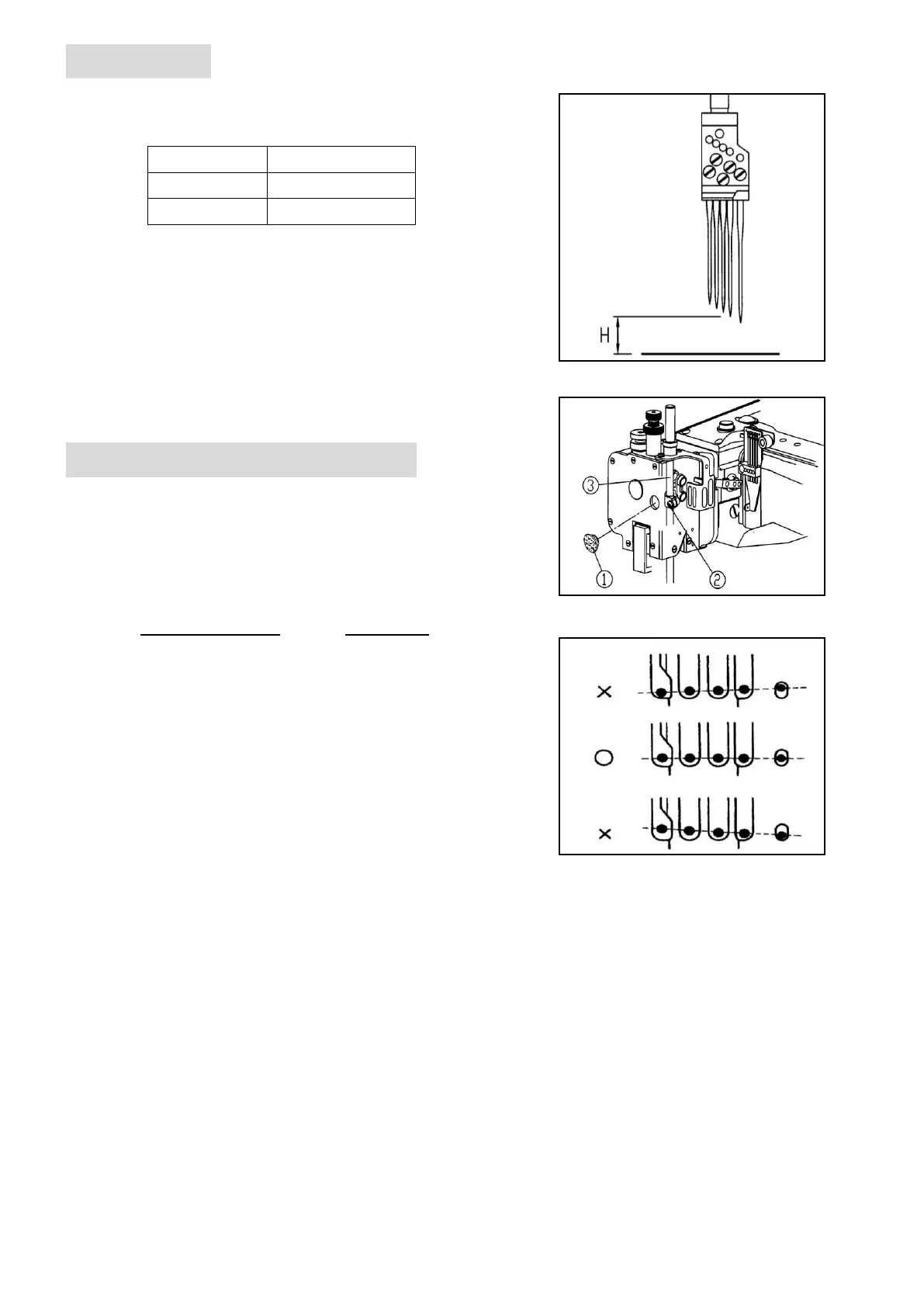

14. Setting Height of needle
Setting the height “H” of the needle
from the top of the stitch plate to the
tip of the fourth needle from the left
when the needle is at the highest point.
Needle distance Height(H)
R: 5.2 mm 13.49 mm
S: 6.0 mm 12.7 mm
Adjusting height:
(1) Remove the seal plug.
(2) Loosen the screw.
(3) Move the needle bar up or down to
Adjust the height.
(4)Tighten the screw securely.
(5) Reset the seal plug.
※ Caution: When moving needle bar, please
make sure, there is no interference between
needles and needle plate.
