Kingtex NT67 - Replacing Presser Foot - Spring Plate; Removing Presser Foot Spring Plates; Resetting Presser Foot Spring Plates

32

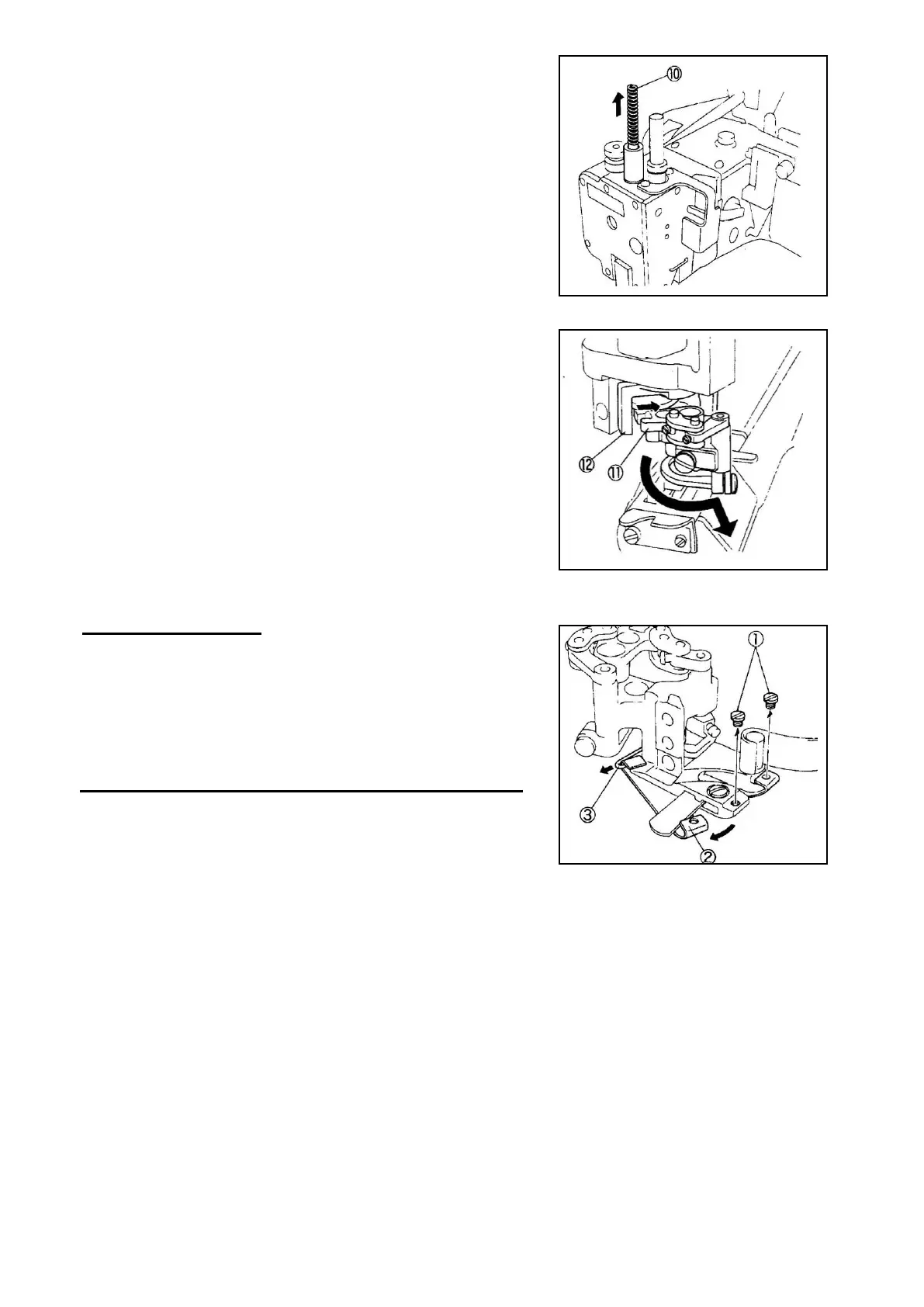

6. 旋轉手輪將針棒升到最高點。將壓力彈簧
與壓腳棒同時抽出。
(6) Rotate the hand wheel to raise the needle
bar at its highest point.
Remove the adjusting screw and keep
the presser bar and the presser spring
upward when taking off from the presser foot.
7. 將驅動梢○
12
與驅動叉○
11
脫離。
8. 依箭頭指示方向旋轉壓腳組，即可取出壓腳組。
(7) Remove the carrier/hook driving segment○
11
from the lever○
12
on the carrier/hook
driving sleeve.
(8) Turn the presser foot set to the left
and remove it through the presser foot
guides (left) and (right) backward as shown
as arrow direction.
20-2 更換彈性壓板
1. 取下螺絲。
2. 依箭頭方向先取下一邊的彈性壓板，再取下
另一邊。
3. 更換後依反方向再次裝回壓板
20-2 Replacing presser foot spring plate:
Removing:
(1) Remove the screws.
(2) Remove the presser foot spring plates from
the presser foot.
(3) Remove each plate from the spring plate holder.
Resetting
(1) Reset each presser foot spring plate with the spring plate holder.
(2) Reset the plates parallel each other underneath the presser
foot.
(3) Tighten the screws securely.
