Description
Manual 1843 Rev C p/n 001843 0000

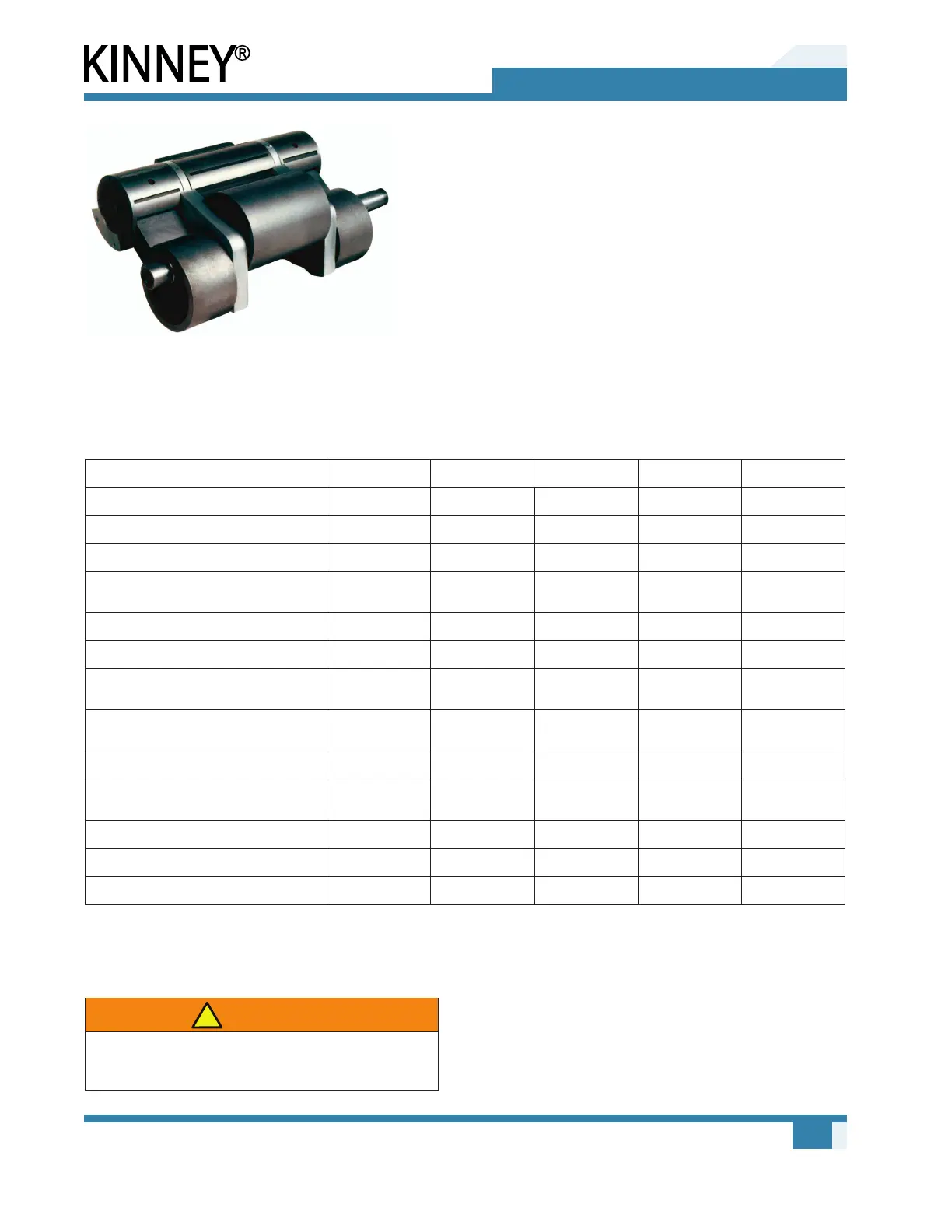

Figure 4-2 – Triplex Arrangement
SPECIFICATIONS
UNIT KT-150 KT-300 KT-500 KT-850
Nominal Displacement cfm (m
3
/h) 150 (255) 300 (510) 490 (840) 780 (1325)
Motor Power HP 7.5 15 30 40
Rotation Speed RPM 1055 870 721 581
Oil Capacity (Total/Refill U.S. gal (L) 6/5 (23/19)
10/8.5
(38/32)
15/12.5
(57/47)
28/25
(106/95)
Cooling Water at 60°F (16°C) gpm (L/min) 1 (4) 1.5 (6) 2.5 (9) 3.5 (13)
Cooling Water Inlet Connection NPT 1/4 in. 3/8 in. 3/8 in. 3/8 in.
Suction Connection
150 lb ANSI
Flanged
3 in. 4 in. 6 in. 8 in.
Discharge Connection
150 lb ANSI
Flanged
2 in. 3 in. 4 in. 5 in.
Height Without Oil Mist Eliminator Inches (mm) 43 (1092) 51 (1295) 63 (1600) 71 (1803)
Floor Space Required Inches (mm)
24 × 26
(609 × 660)
27 × 34
(686 × 864)
34 × 38
(864 × 965)
38 × 49
(965 × 1245)
Weight lb (kg) 800 (363) 1,525 (692) 2,625 (1,191) 4,175 (1,894)
Ultimate Pressure microns 10 10 10 10
Noise Level (Typical at .1 Torr)* dBA 71 72 73 75
* Noise level may vary based upon motor selection.
Table 4-1 – Specifications
WARNING
Do not exceed maximum rotation speed
(RPM) as stated in Table 4-1.
