Parts Lists and Assembly Drawings
Manual 1843 Rev C p/n 001843 0000
FILTER SYSTEM KIT PARTS LIST – KT-500D
ITEM
NO.
PART DESCRIPTION QTY
1 Nipple *
1
2 Elbow *
1
3 Male Elbow *
1
4 Steel Tubing
1
5 Male Connector *
1
6 Hex Head Bushing *
1
7 Hex Head Bushing *
1
8 Nipple *
1
9 Y-Strainer *
1
10 Nipple *
1
11 Tee *
1
12 Hex Head Bushing *
1
13 Pressure Gauge
1
14 Nipple *
1
15 Valve Spring Check
1
16 Male Connector *
1
17 Steel Tubing
1
18 Male Elbow *
1
19 Filter Change Indicator/Gauge
1
20 Hex Head Cap Screw *
2
21 Plain Washer *
2
22 Oil Filter Housing
1
23 Bracket, Oil Filter
1
24 Oil Filter Spin-on
1
25 Hex Head Cap Screw *
2
26 Lock Washer Reg. Spring *
2
27 Male Connector *
1
28 Steel Tubing
1
29 Male Elbow *
1
30 Label *
1
31 Sealant, Loctite #567 *
1
OTE: N *Not available for individual purchase.
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
14
17
18
19
20,21
22
23
24
25,26
27
28
29
30

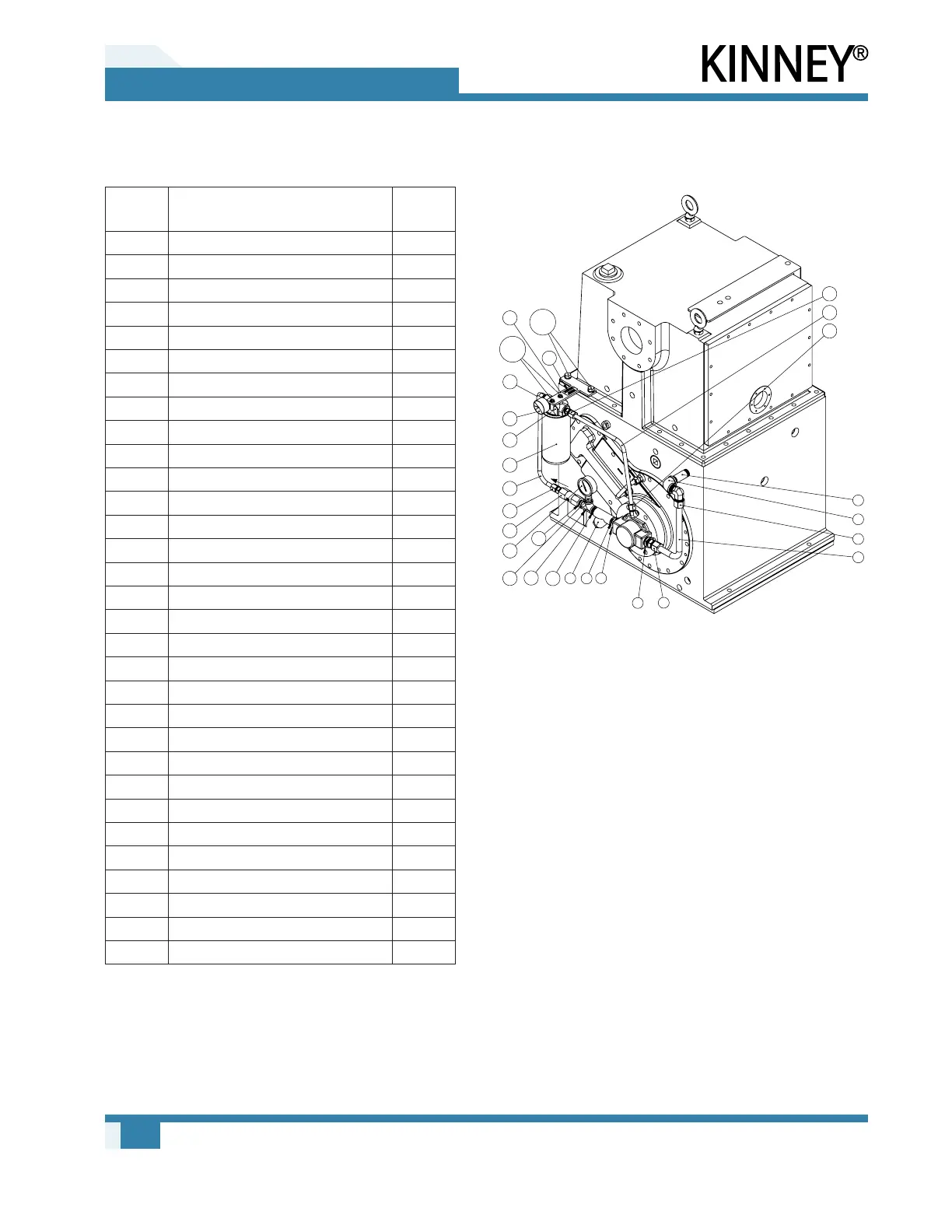

KT500 FILTER SYSTEM
FIGURE 2
FLOW
