KINNEY KT300 - Filter System Kit Parts List - KT-150 C

43
Parts Lists and Assembly Drawings
Manual 1843 Rev C p/n 001843 0000
FILTER SYSTEM KIT PARTS LIST – KT-300D
ITEM
NO.
PART DESCRIPTION QTY
1 Nipple *
1
2 Female Elbow *
1
3 Steel Tubing
1
4 Male Connector *
1
5 Nipple, Steel *
1
6 Tee *
1
7 Hex Head Bushing *
1
8 Pressure Gauge
1
9 Nipple *
1
10 Valve Spring Check
1
11 Male Elbow *
1
12 Steel Tubing
1
13 Male Elbow *
1
14 Filter Change Indicator/Gauge
1
15 Hex Head Cap Screw *
2
16 Plain Washer *
2
17 Bracket, Oil Filter
1
18 Oil Filter Housing
1
19 Oil Filter Spin-on
1
20 Hex Head Cap Screw *
2
21 Lock Washer Reg. Spring *
2
22 Male Connector *
1
23 Steel Tubing
1
24 Male Elbow *
1
25 Label *
1
26 Sealant, Loctite #567 *
1
OTE: N *Not available for individual purchase.
1
2
3
45
6
7
8
9
10
11
12
13
14
15,16
17
18
19
20,21
22
23
24
FLOW

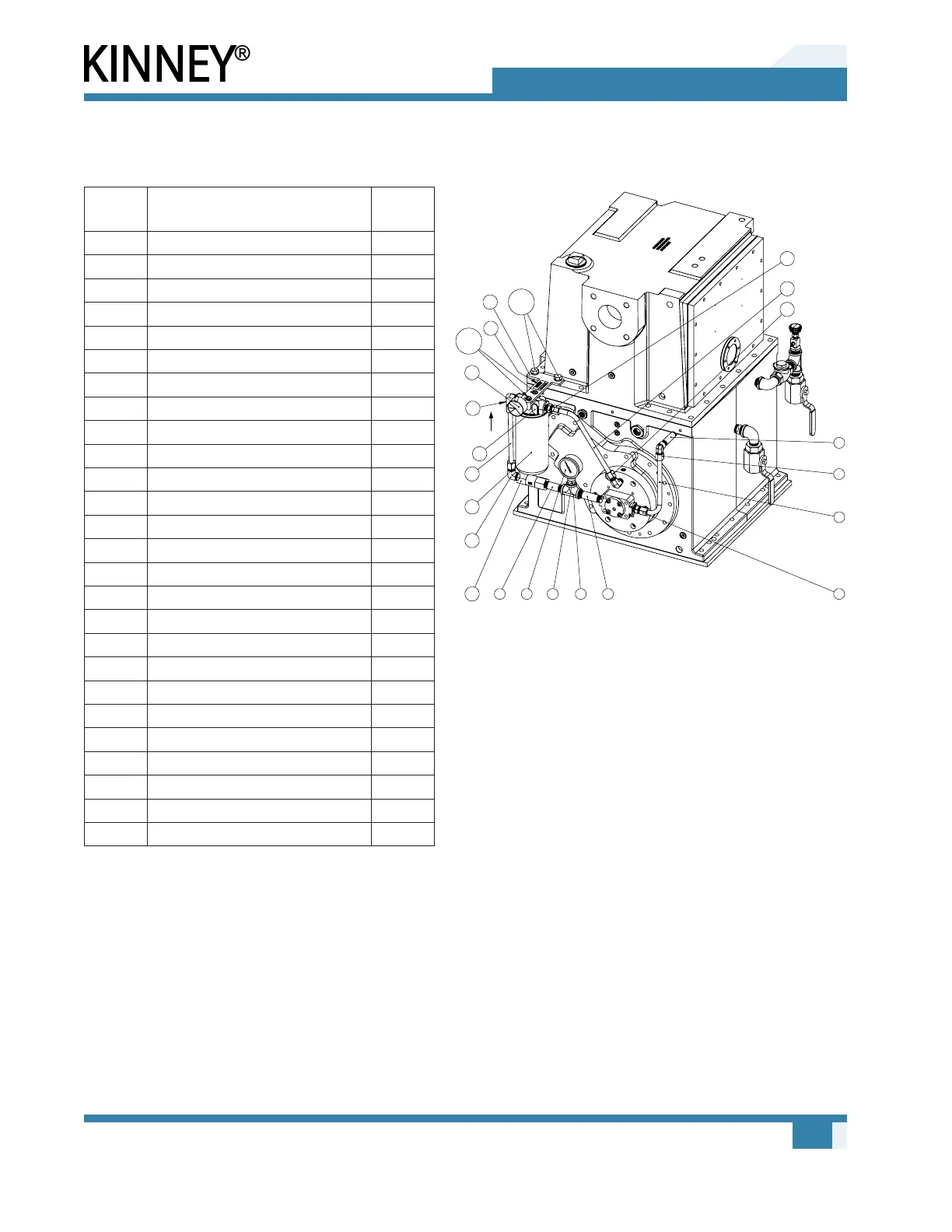

KT300 FILTER SYSTEM
FIGURE 2
25
