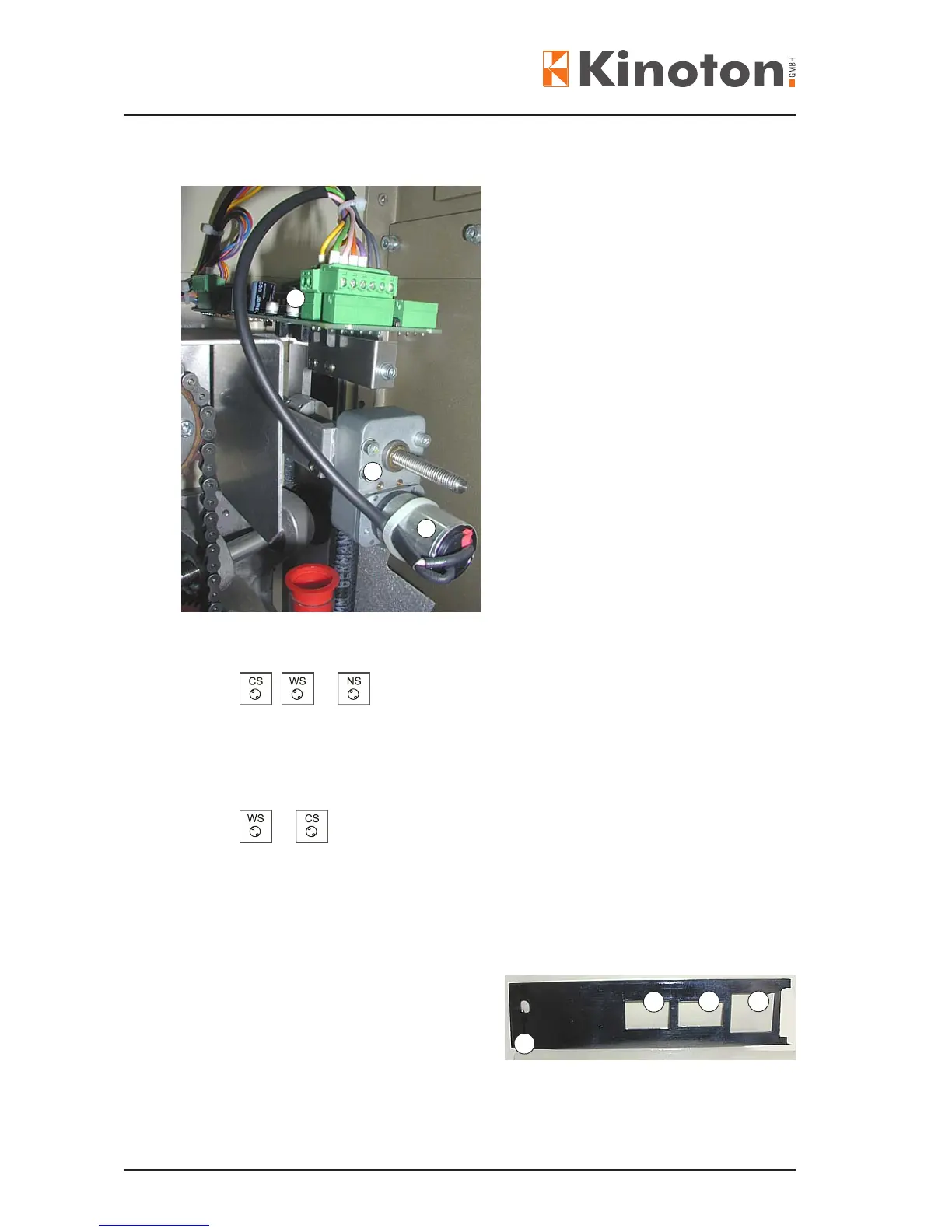

Kinoton FP 30 D - Drive and Control; Format Change with Three Lenses; Format Change with Two Lenses Turret


Issue: 04/2011

 
 Aperture changer motor
 Aperture changer drive
 Aperture changer/lens turret
control board
 
• Push
, or on the operating panel.
$The aperture changer places the selected aperture into the lm gate and the
matching lens in position.
 
• Push
or on operating panel (if existing).
$If the lens turret is equipped with two lenses and the aperture has three openings
you can select any two of the three aperture openings to work with the two lenses.
For example for some shows the format change could be between CS (Cinema-
Scope) and WS (1:1.85) and for other shows the format change could be between
WS (1:1.85) and NS (1:1.33).
The following format combinations are available:
- format combination  and  or
- format combination  and  or
- format combination  and 
2
1
3
2
3
1
4
