The pad shoe has a brass bearing tube which pivots on the pad shoe shaft, and is
positioned with a ring nut and a spring.
To avoid damaging the pad shoe and causing the brass tube to revolve within the pad
shoe, the pad shoe must be handled gently.
Follow these points:
• Do not slam the pad shoe closed.
• Only open the pad shoe as far as the stop pin.
• Do not open the pad shoe too far - over the stop pin - the spring will break and the
brass tube will be damaged.
X
Z Changing a constant speed sprocket and a pad shoe and adjusting the pad shoe
spring, see chapter 6.4.2.
Z Adjusting the distance between the pad shoe and the sprocket, see chapter 6.4.8.
Z Adjusting the lm break sensor, see chapter 6.4.9.

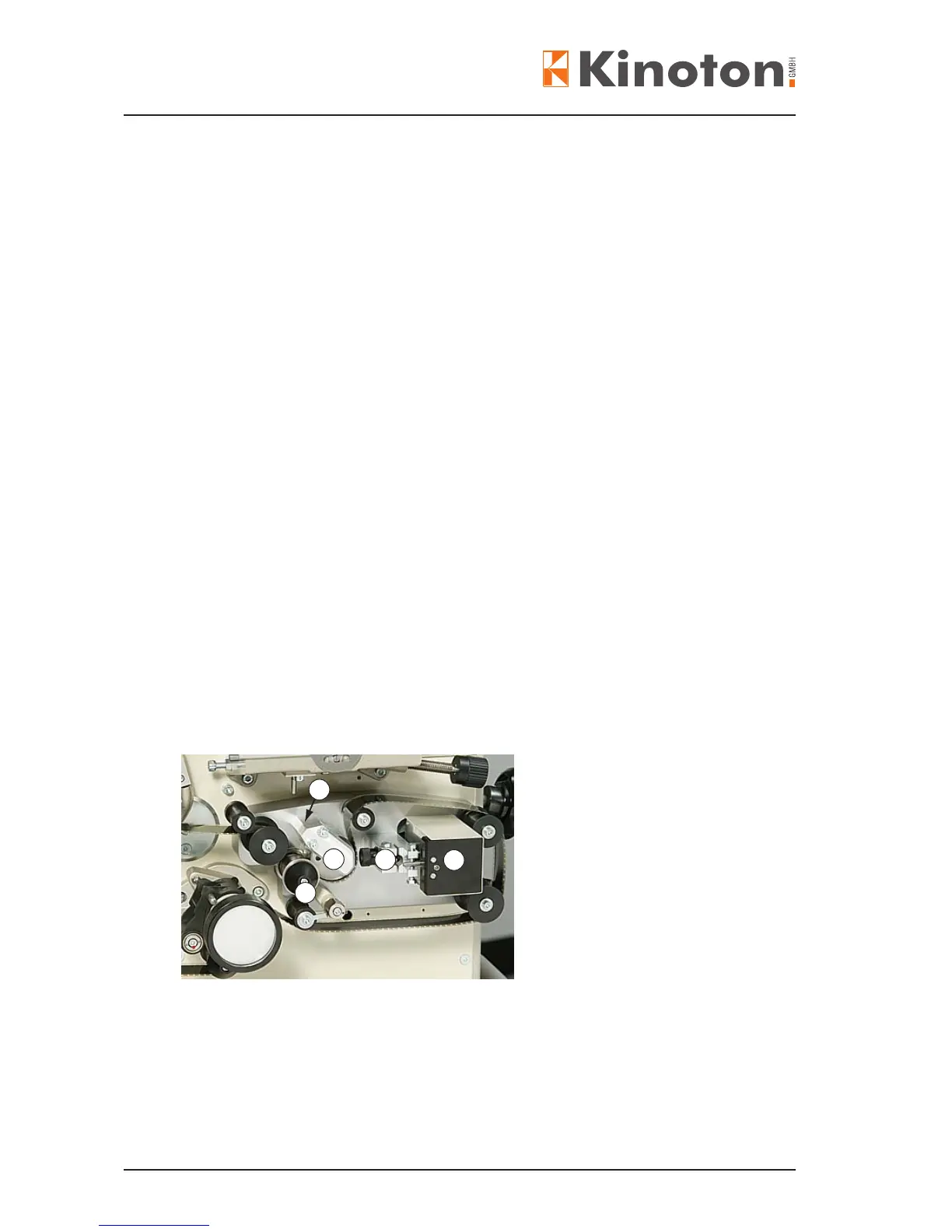

Reverse-scan sound devices scan the sound track (analog and optional DOLBY
digital) on the lm by means of red LEDs.
LED holder with LED
Sound drum
Sound pressure roller
Analog sound optics
P.C. board with solar cell
X
A non-upgradeable analog reader will not accept cue detectors.
