Z The reector should only be changed by the projectionist in case of need.
At the next opportunity the reector should be adjusted nely by service personnel
who has the necessary alignment tool.
Z At normal case the reector should be changed and adjusted by service personnel.
Z The following chapter describes how the reector can be changed in case of need.

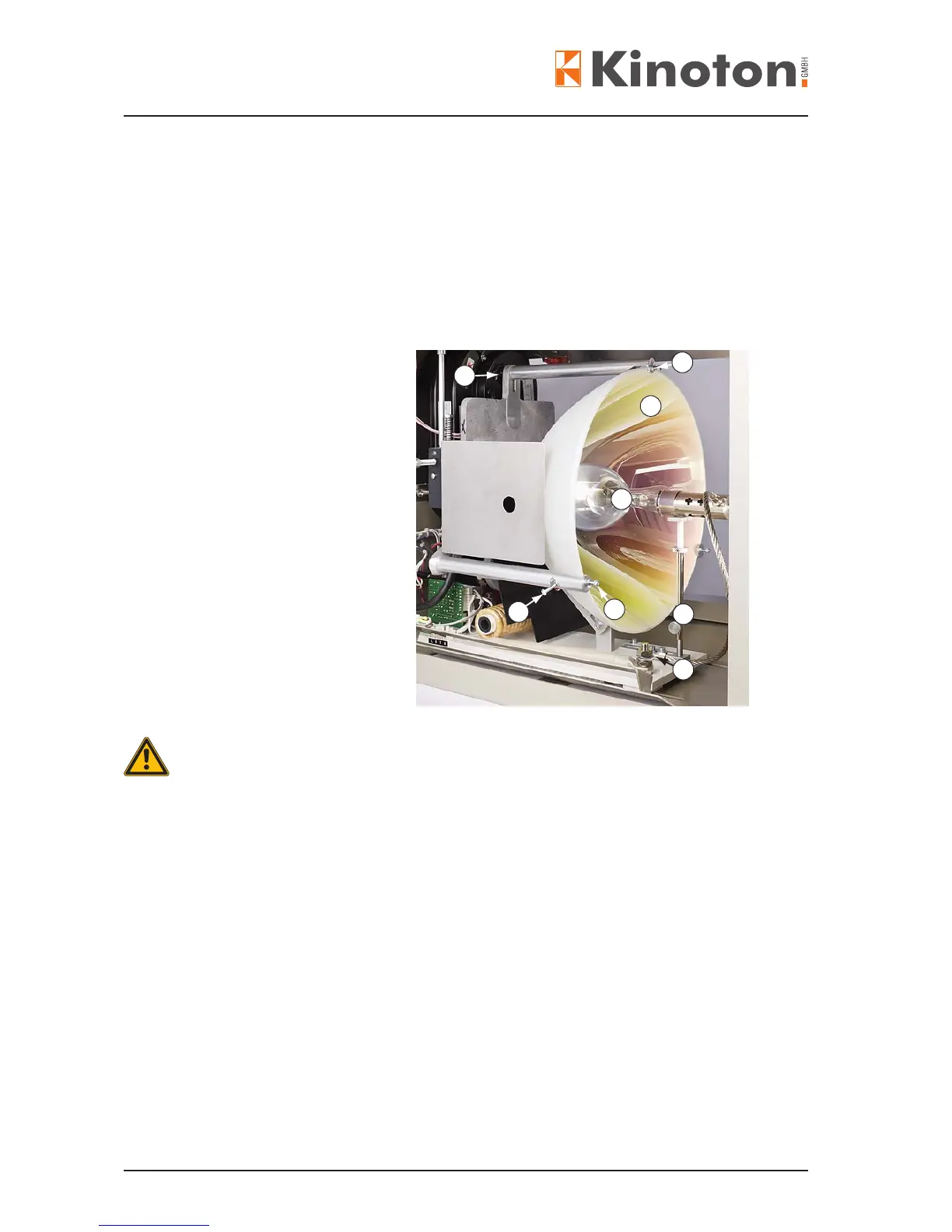

Xenon bulb
Reector
Bulb support (only big lam- p-
houses)
Anode connecting bolt
Adjusting/xing screws
Å Counterscrew
Æ Handle star
Observe the safety instructions, when opening the lamphouse.
- Switch off the projector.
- Wear protective clothes.
- Open the lamphouse only after waiting period of at least 10 minutes.
• Remove the lamphouse door.
• Remove the xenon bulb.
• Loosen the upper holder rod by turning the handle star Æ.
• Carefully take out the reector by tilting it forwards while the upper holder bar is
moved upwards.
• At this opportunity clean lamphouse by blowing compressed air in the lamphouse and
nally remove the dust with a vacuum cleaner.
2
1
3
4
5
5
6
7
