Kinoton FP 30 D - Operation and Troubleshooting; Projector Start-up and Shut-down Procedures


Components
Issue: 04/2011

 
X 

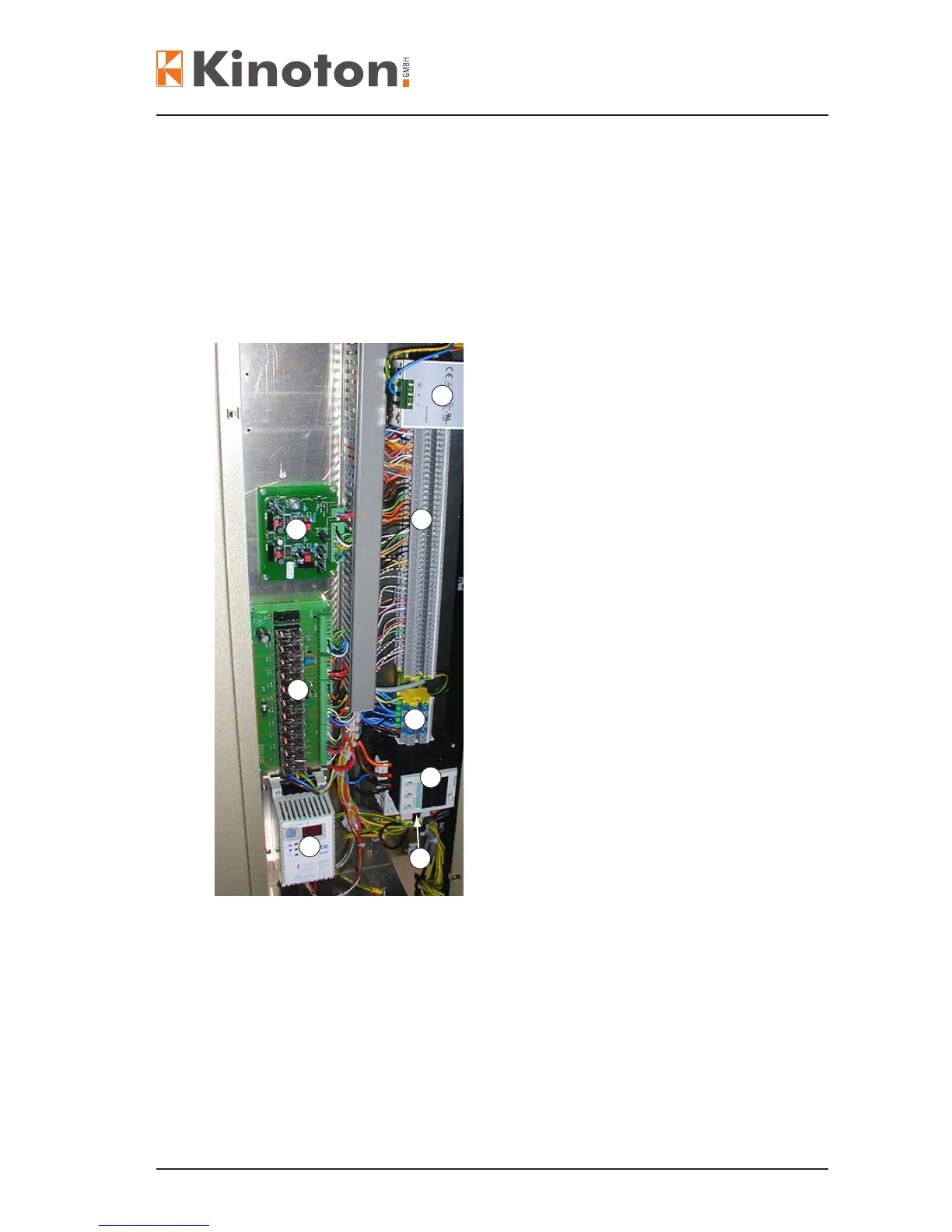

Z In this chapter you will get an overview of the electronic components, which are
mounted in the projector console.
Z The console door should only be opened by authorized service staff.
Z All work on electronic parts must be carried out only by experts.
 24 V power supply unit
 Terminal strip (with automation system)
 Internal terminal strip
 Main contact
 Neutral + ground connection
Å Frequency inverter
Æ Control board with relays
 LED power supply board
X 
Z Plan of terminal connections, see chapter 8.2.1 and 8.3.4.
Z Wiring schemes, see chapter 8.3.1, 8.4.2 and 8.4.3.
2
3
4
6
1
7
8
5
