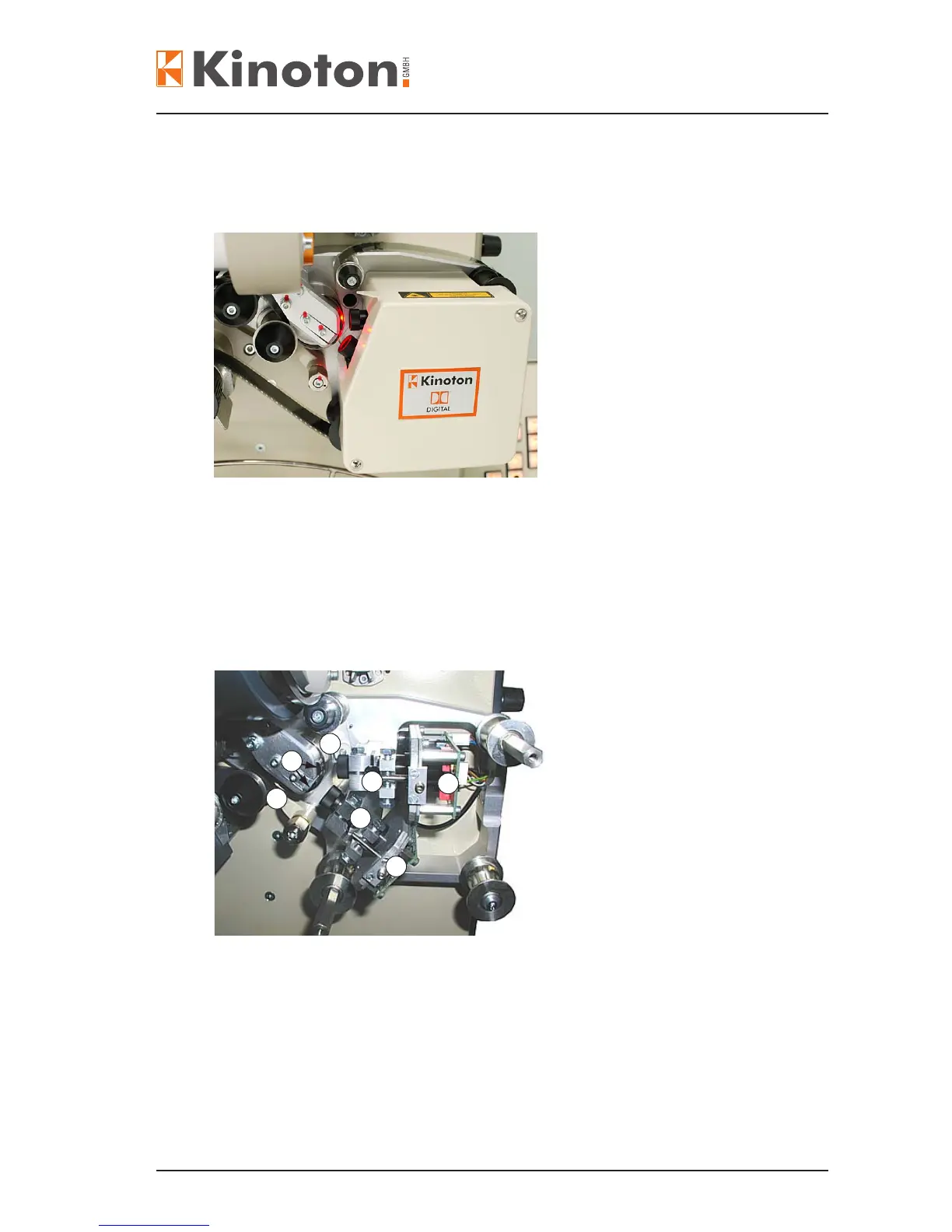

Kinoton FP 30 D - Reverse-Scan Sound Device Analog and Optional DOLBY Digital (Upgradeable); Components


Film Gate Components
Issue: 04/2011

 
The Reverse-Scan Sound Device contains an analog sound reader and optionally a
Dolby digital reader.
X 
Z An only analog sound device is upgradeable with DOLBY digital.
Z The reverse scan sound head is delivered factory checked and adjusted.
Z Optional cue sensors for reading metal foil tapes can be mounted in the reverse
scan sound device.
 
3
5
4
2
4
6
1
 LED holder with optional second digital LED
 Sound drum
 Sound pressure roller
 Analog (upper) and optional digital (lower) sound optics
 P.C. board with solar cell (analog)
Å P.C. board with CCD-unit (digital)
