Issue: 04/2011
» after 50 operating hours after the rst running
» after 500 total operating hours or after a quarter of year
» after every 4000 operating hours or once in a year, whichever comes rst
Procedure to change oil (Use Kinoton type 3672 oil only.):
• Remove the oil gauge cap and remove hose from clip. Move open end of hose down
into empty container. Let the oil drain out completely. Add oil through the hose. The
oil level must be between the red and green ring.
• During lling, turn the mechanism slowly, by hand, so that any air bubbles can
escape. Several times turn the framing knob alternately between the left and right
stops to distribute the oil. If necessary add more oil.
• Put the cap on the oil gauge and hang the hose back in the clip. There should be a
vent hole in the oil gauge cap. There must not be any cap on the hose.
X
Z The quantity of oil to ll the movement is about 6.8 . oz (200 ml).
Z Do not overll the intermittent.
Before opening the shutter housing, wait until
the shutter stands still!

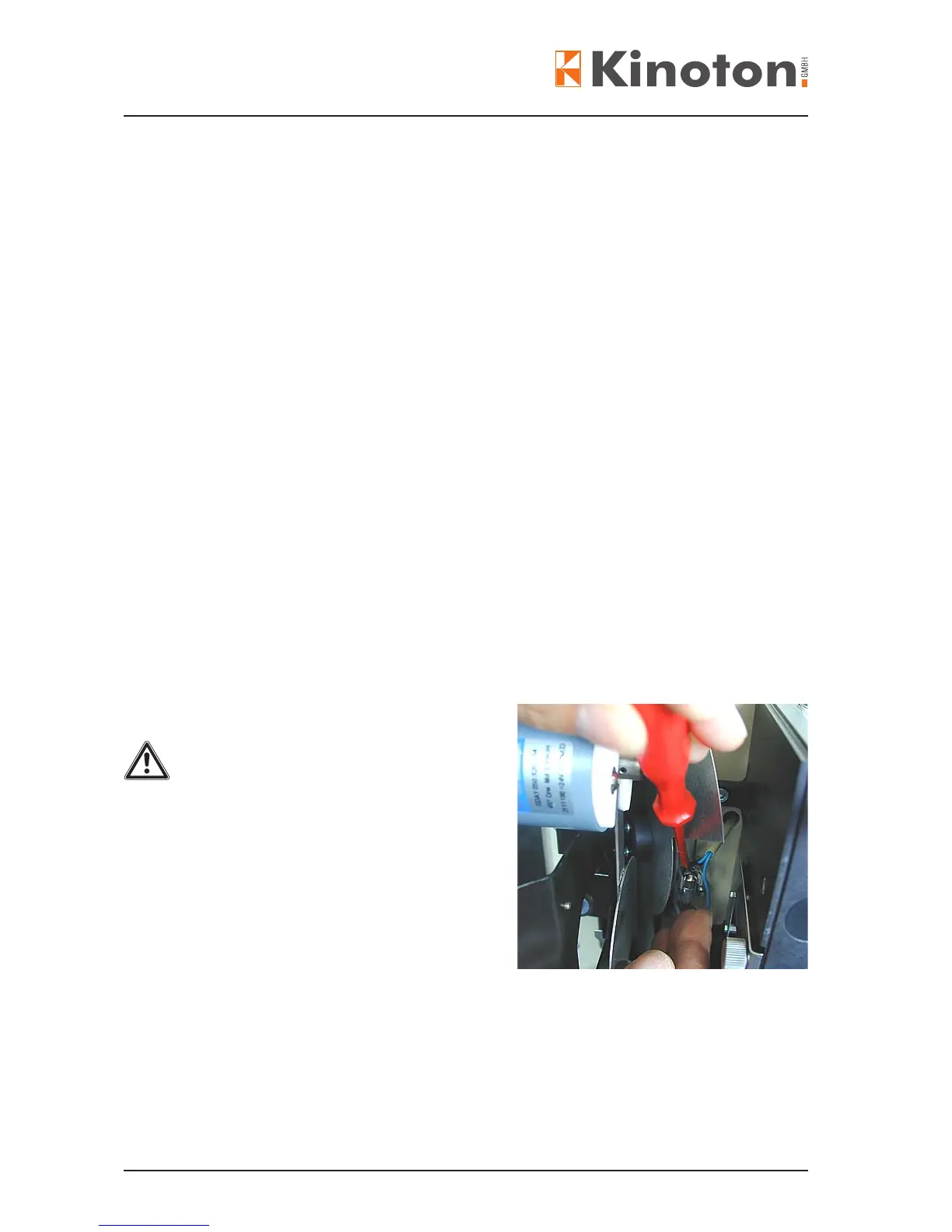

• Remove the shutter housing.
• Put the screw driver behind the lamp
socket and lift the lamp out of the socket.
• Push the new pilot lamp into the socket
and close shutter housing.
