Issue: 04/2011

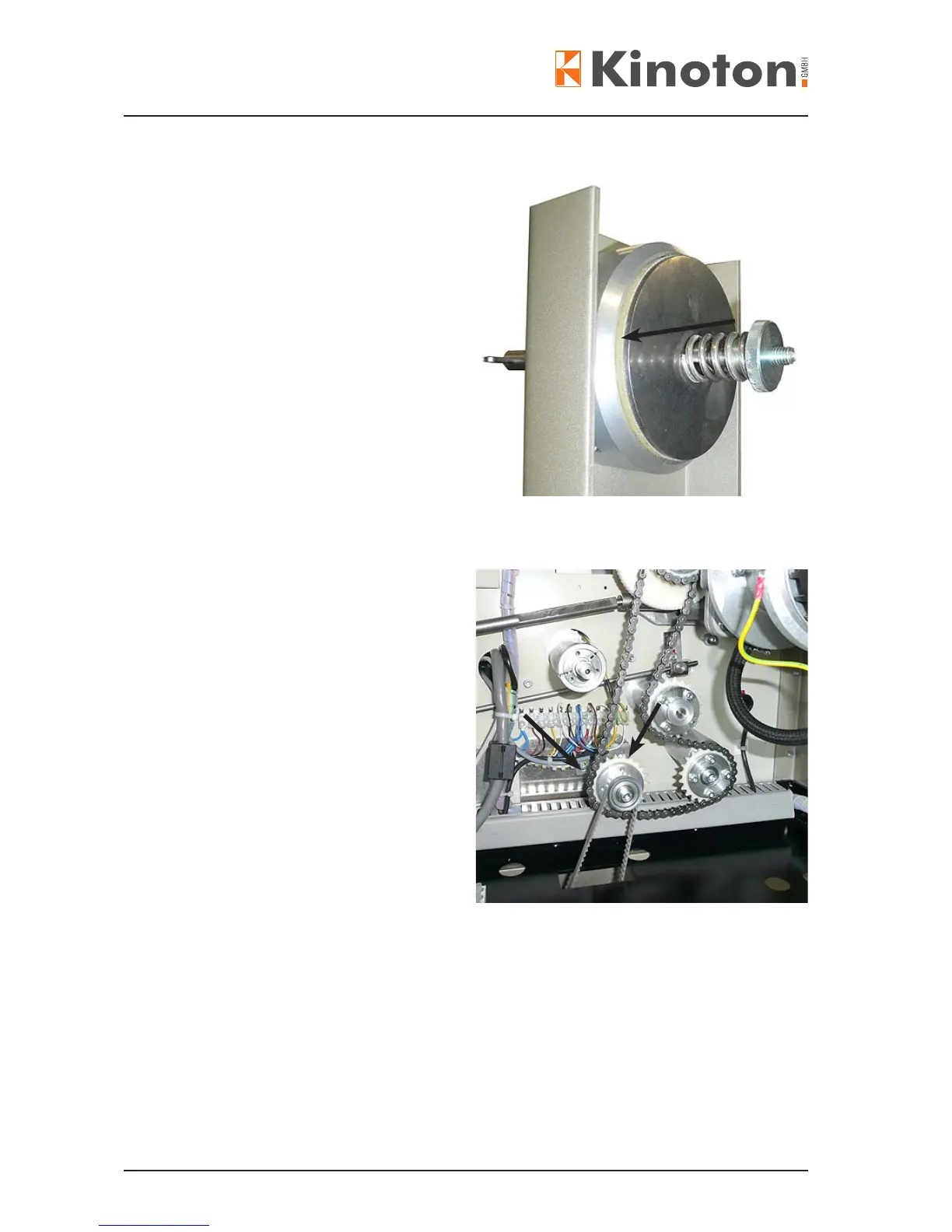

• Remove the knurled nut, the spring,
the friction plate and the felt disk on
the friction shaft (arrow).
• Once in a year the felt disk should
be put in a Cardan oil bath. If the felt
disk is worn (surface is hardened) it
has to be changed and oiled.
• Mount the friction again.
• Thread a lm and adjust the friction
(see chapter before).
• To tension the toothed belt loosen
the 2 Allen locking screws (arrows)
of the tension jack.
• Move the tension jack up to tension
the toothed belt.
• Fasten the locking screws again.
X
Due to the moved gear on the tension check, you have to check the chain tension and if
necessary to adjust it.
