DRAFT CONTROL (IF APPLICABLE)

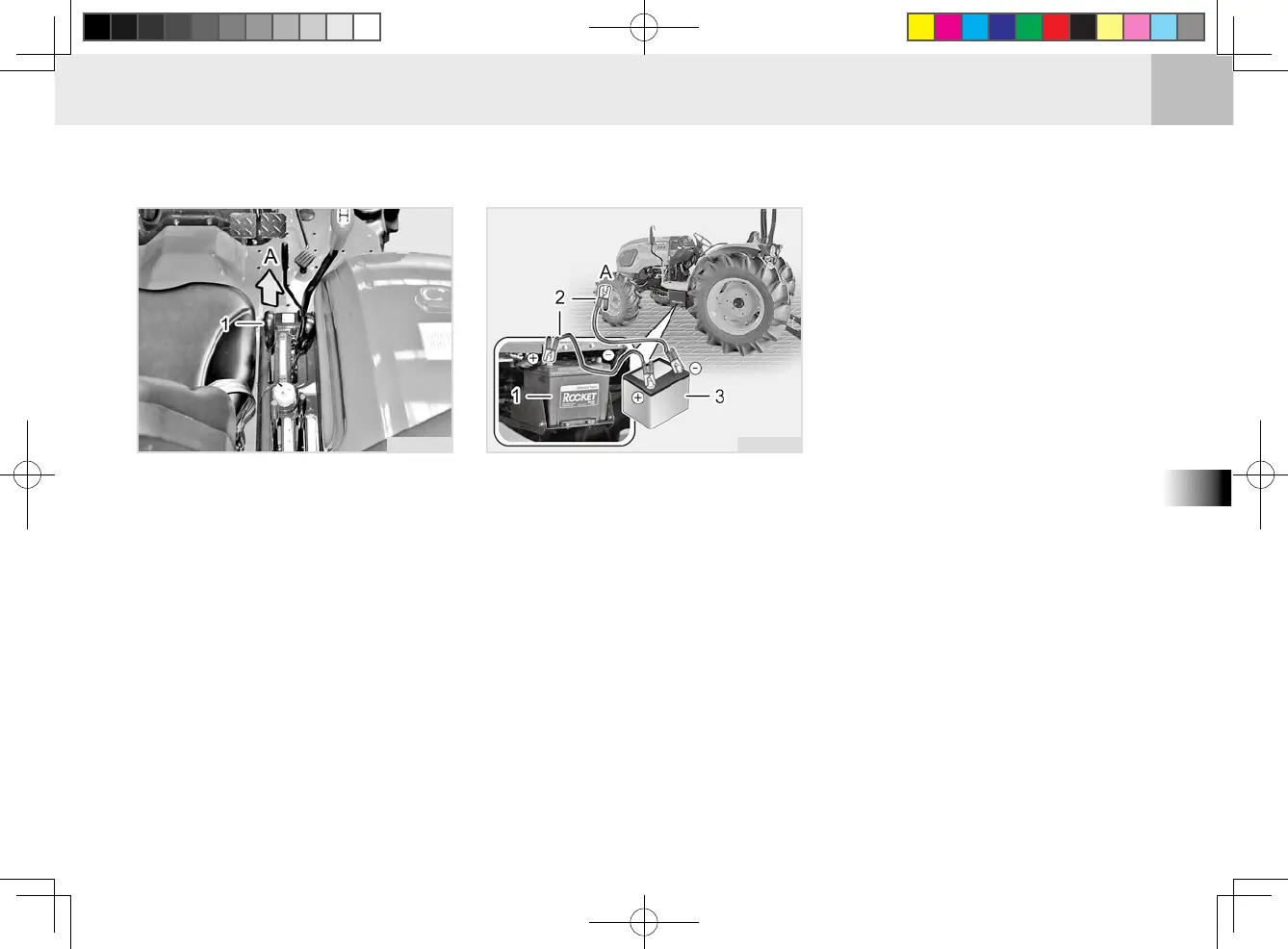

(1) Draft Control Lever
(A) Lowering
1. The draft control function is used
to prevent the wheels from rotating
idle and the engine from stopping
due to excessive draft load when
the tractor is used for work whi-
ch requires a lot of draft, such as
plowing.
td2O522a
(1) Top Link
2. The draft function is activated
when the top or middle hole on the
top link of the 3-point hitch is used.
The top hole is for sensitive draft
control.
3. To keep the plowing depth shal-
low, put the draft control lever to
the rear (Shallow) position. The
plowing depth tends to become
deeper naturally by outer condi-
tions. When the load increases by
td2O532a
the increase of the plowing dep-
th while the draft control lever is
set to the “Shallow” position, the
plowing depth is maintained as
shallow because the reaction force
is transferred to the internal sy-
stem via the top link and the lifting
arm is automatically lifted.
4. To keep the plowing depth deep,
put the draft control lever to the
front (Deep) position.
5. The position of the draft control
lever should be different based
on the condition of soil to keep
the plowing depth constant. When
working on a new eld, it is recom-
mended to put the draft control
lever to the proper position for the
desired plowing depth and lock the
lever with the lock bolt.
6.
When using an implement which
requires no draft function, such as
a rotary tiller and mower, use the
bottom hole on the top link and put
the draft control lever in any position.
