Kioti DK4810 - Checking Wheel Bolt;Nut TORQUE (Q); Adjusting Clutch Pedal (R)

7
-
20
DK4810/5310/5810(HS)

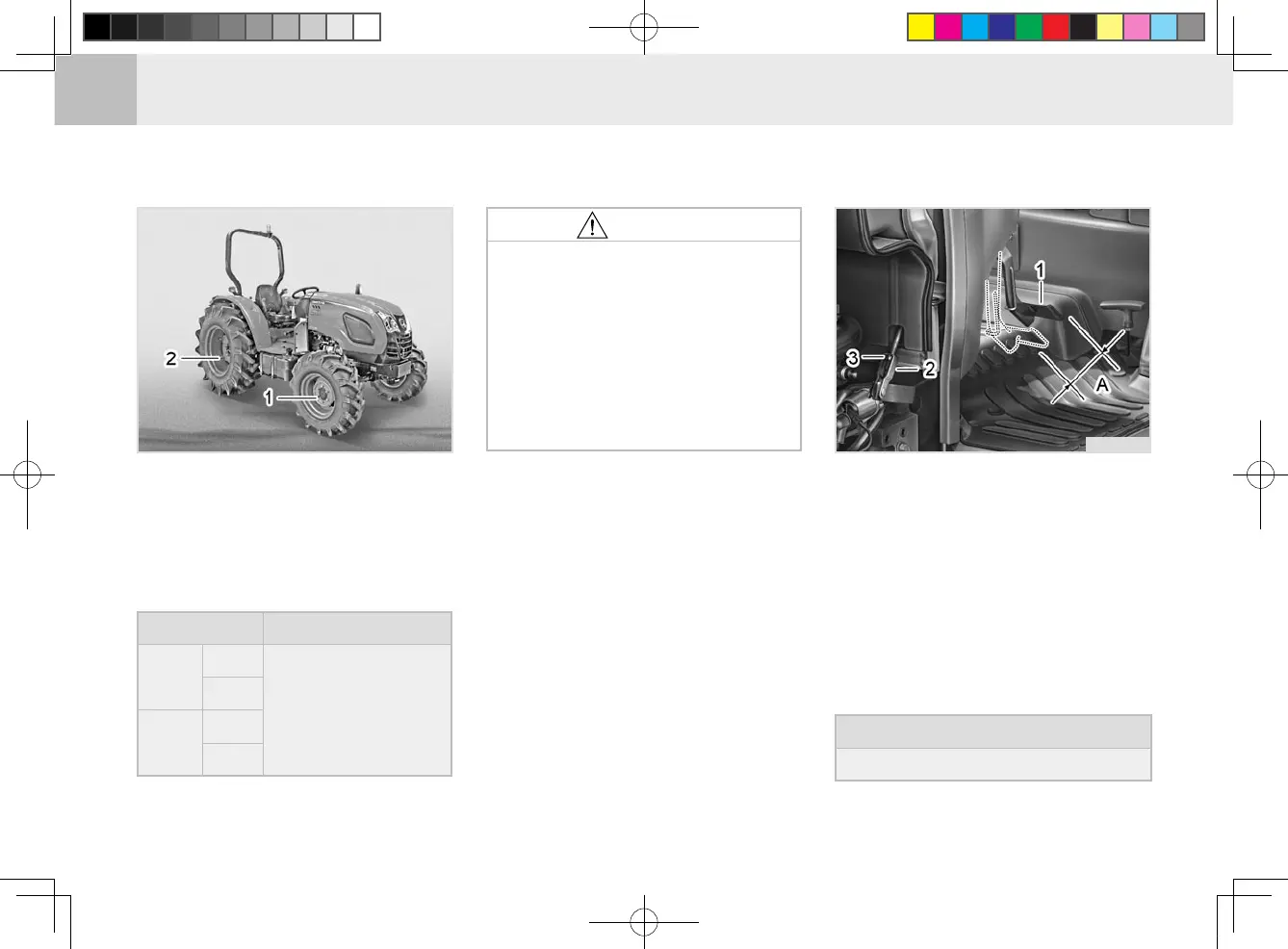

(1) Brake Pedal (2) Clutch Cable
(3) Lock Nut
(A) Free Play
ADJUSTING CLUTCH PEDAL (R)
Item Tightening torque
Front
wheel
Bolt
225 N·m
166 lbf·ft
20~23 kgf·m
Nut
Rear
wheel
Bolt
Nut
1. If the clutch does not operate pro-
perly due to its excessive play, or
periodically, adjust its play.
2. To adjust the free play, unscrew its
lock nut and adjust the clutch cable.
3. After setting the play properly, ti-
ghten the lock nut rmly.
Proper clutch pedal free play (A)
0.78~1.18 in. (20~30 mm)
td2O720A
h11O726A
CHECKING WHEEL BOLT/NUT TORQUE (Q)
(1) Front Wheel Bolt/nut
(2) Rear Wheel Bolt/nut
Check wheel bolts and nuts regularly
especially when new. If they are loo-
se, tighten them as follows.
CAUTION
To avoid injury:
Never operate tractor with a
loose rim, wheel, or axle.
Any time bolts and nuts are
loosened, retighten to speci-
ed torque.
Check all bolts and nuts fre-
quently and keep them tight.
•
•
•
