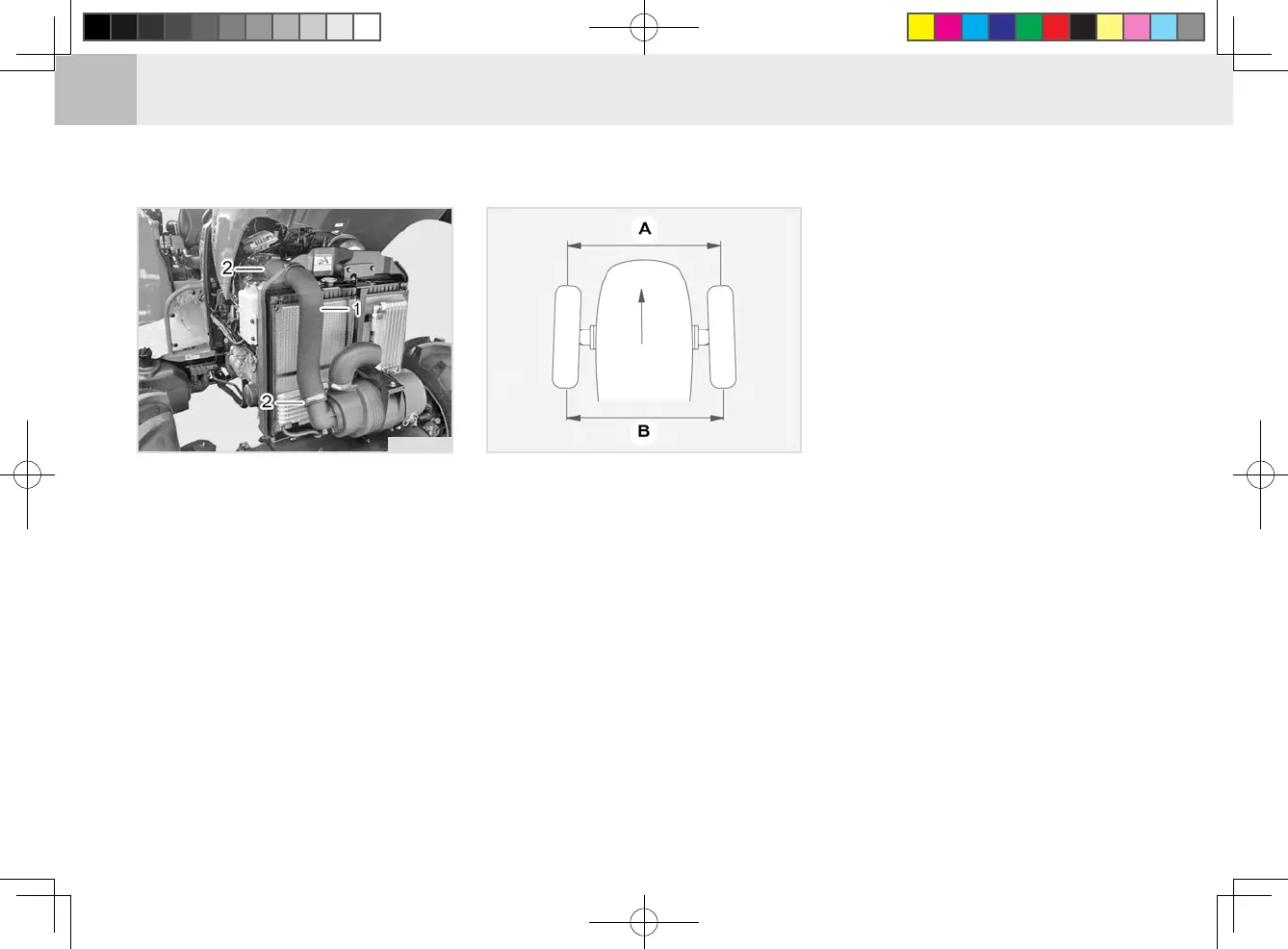

(1) Air Line Hose (2) Clamp
1. If the hose clamps are loose, ti-
ghten clamps securely.
2. If the hoses and clamps are da-
maged, you must replace them at
once. Failure to do so could lead
to engine damage.
td2O727A
CHECKING INTAKE AIR LINE (X)
t46OA36A
(A) Wheel - To - Wheel Distance At Front
(B) Wheel - To - Wheel Distance At Rear
1. Park tractor on a at surface.
2. Turn steering wheel so front wheels
are pointed straight ahead.
3. Lower the implement, lock the
parking brake and stop the engine.
4. Measure distance between tire
beads (Center) at front of tire and
hub height.
5. Measure distance between tire bea-
ds at back of tire and hub height.
ADJUSTING TOE-IN (Y)
ADJUSTING PROCEDURE
6. Front distance should be 2 ~ 8 mm
(0.079 ~ 0.315 in.) less than rear
distance. If not, adjust the length
of the tie rod joint.
To Next Page
