FUNCTION DESCRIPTION AND OPERATING TIPS

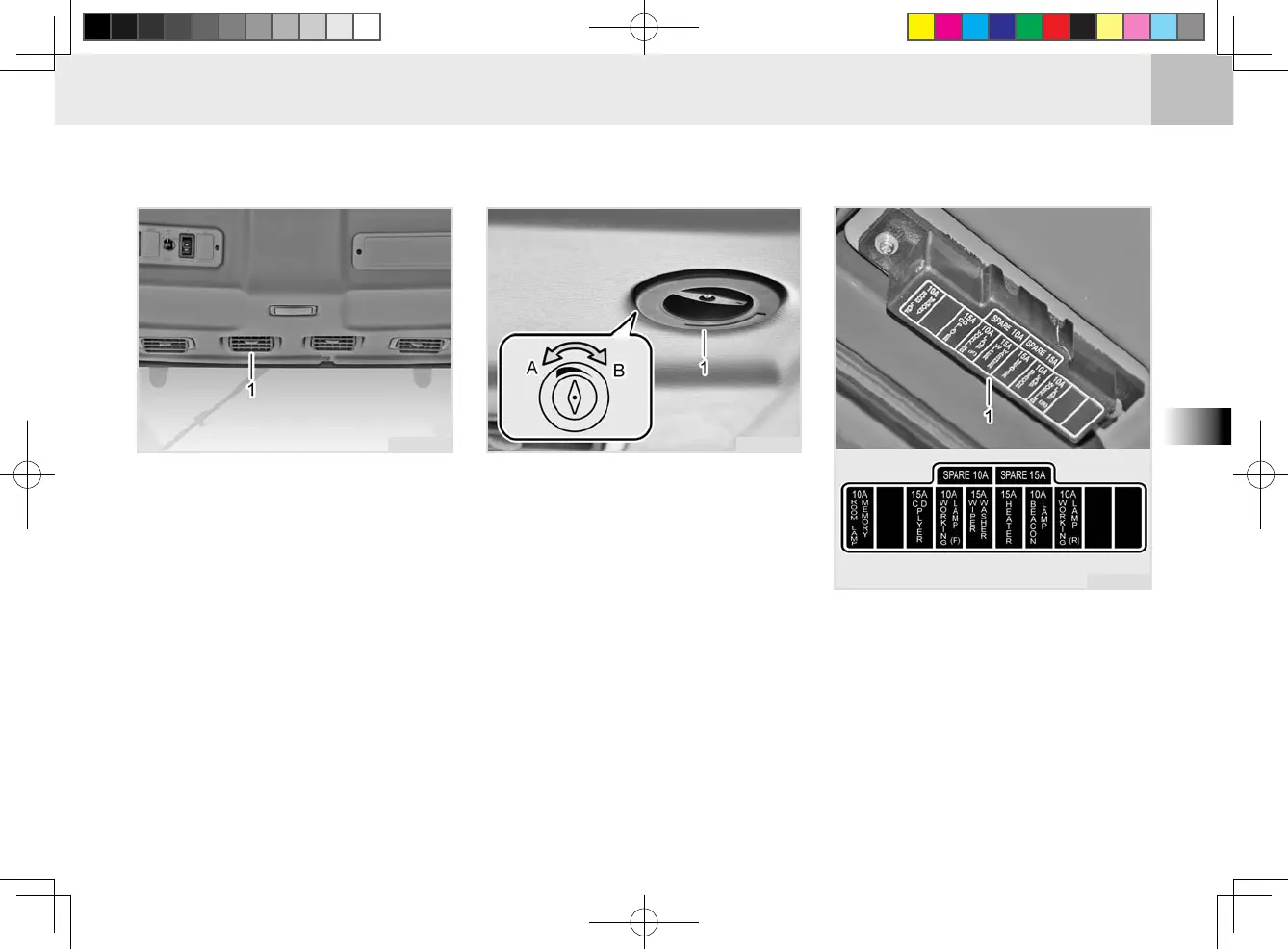

(1) Vent
VENT
Turn the lever of vent left, right and
front, back to adjust the direction of
ow.
td2O485A
(1) Temperature Control Knob
(A) Increase (B) Decrease
TEMPERATURE CONTROL KNOB
Turn the lever counterclockwise to in-
crease the supply of warm water that
increase the temperature of heater
flow. Turn it clockwise to decrease
the temperature.
td2O486A
(1) Fuse Box
FUSE BOX
Pull the fuse box cover out to see
attached fuses of different values
inside. Replace the required fuse
of standard capacity referring to the
size of fuse for each device on the
cover.
td2O487A
