2. Stop the engine, apply the parking
brake and remove the drain plug.
3. Wait until the oil is cooled down.
4. Place the oil pan under the en-
gine and unscrew the drain plug
counterclockwise to drain the oil
completely. All the used oil can be
drained out easily when the engine
is still warm.
(1) Drain Plug
td2O710A

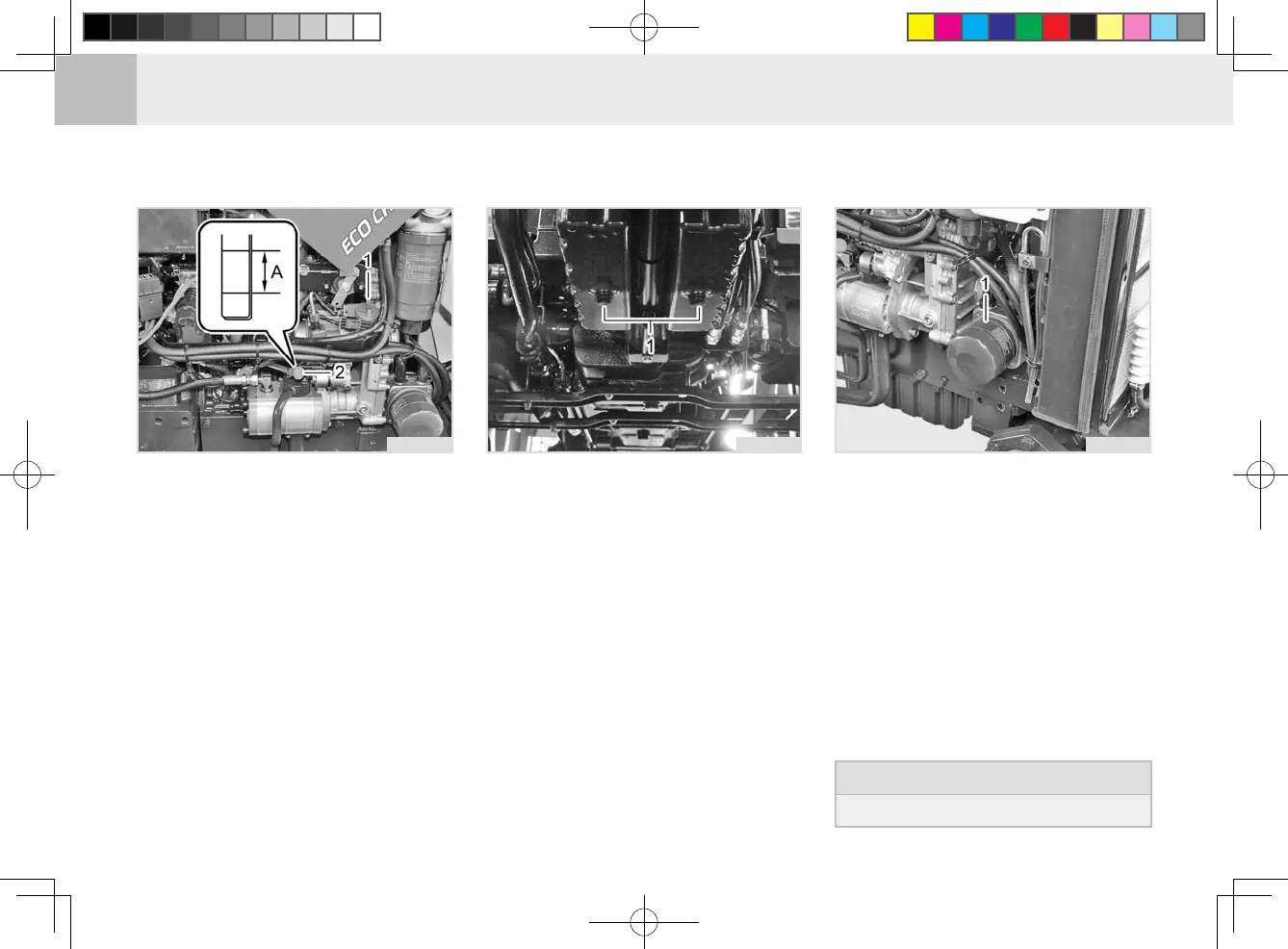

CHANGING ENGINE OIL AND REPLACING FILTER (L)
(1) Oil Filler Hole (2) Oil Dipstick
(A) Oil Level Is Acceptable Within This Range
1. Park the tractor on a level ground
and start the engine to warm it up.
td2O706A
(1) Engine Oil Filter
5. Remove the oil filter from the
bottom of the fuel lter on the right
side of the engine.
6. Apply a thin lm of oil to the O-ring
of a new lter and tighten the new
lter rmly by hand.
7. Fill the engine oil to the specied
level and tighten the oil lter to the
specied torque.
td2O711A
Oil Capacity [U.S. gal(L)]
2.4 (9.0)
