DESCRIPTION OF OPERATING SYSTEM

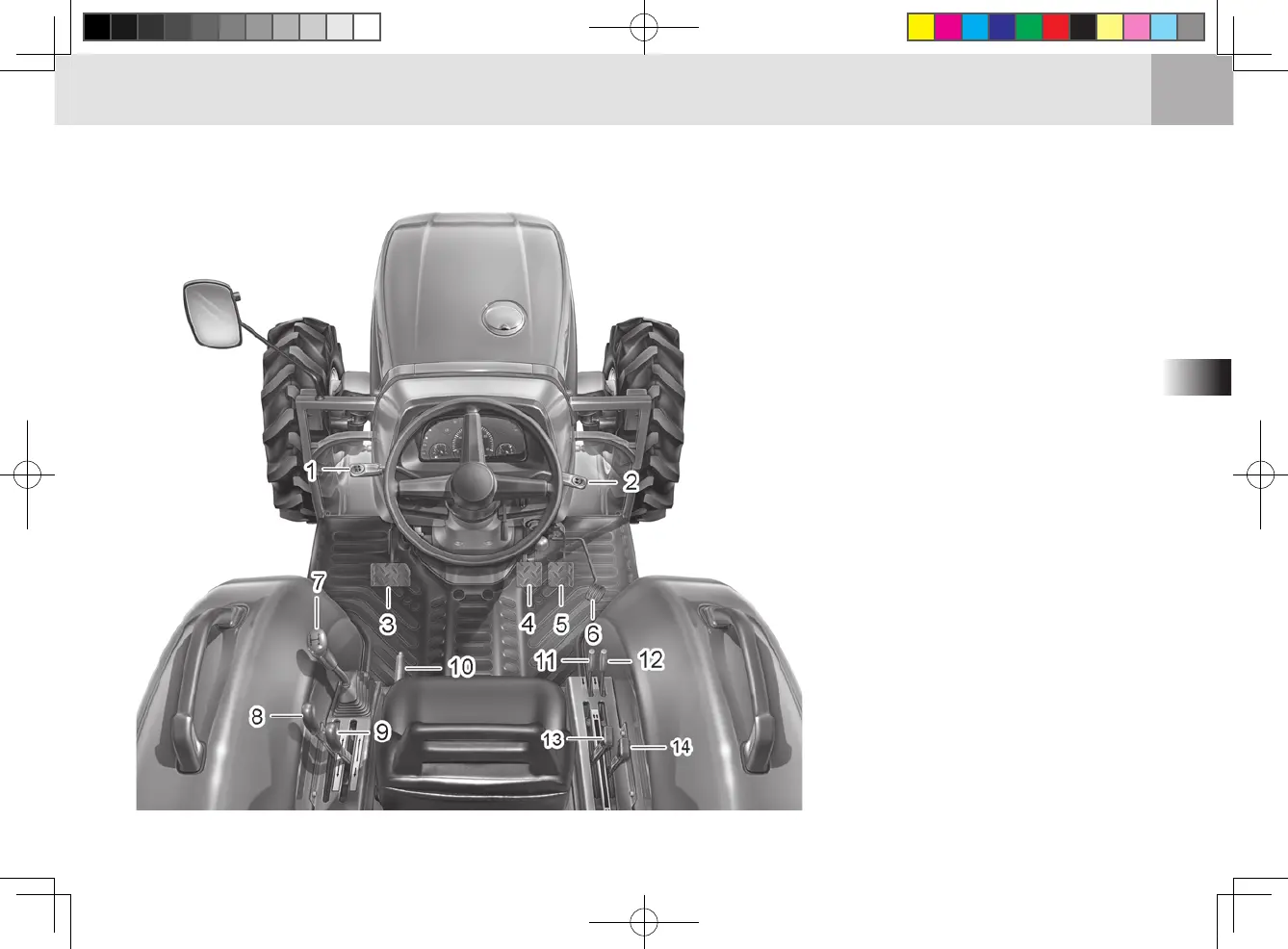

OPERATING ThE CONTROlS
(1) Forward / Reverse Shift Lever
(2) Hand Accelerator Lever
(3) Clutch Pedal
(4) Brake Pedal (LH)
(5) Brake Pedal (RH)
(6) Throttle Control Pedal
(7) Main Shift Lever
(8) Range Shift Lever
(9) Creep Shift Lever
(10) Parking Brake Lever
(11) Double Acting Lever (A, B)
(12) Double Acting Lever (C, D)
(13) Draft Control Lever
(14) Position Control Lever
S76O404A
