6
-
4
Lx500L
LIFT ROD (RH)
Turn the handle of the lift rod (RH)
to adjust the horizontal position of
the lift rod implement. Most of the
implements are designed to keep the
horizontal alignment. Set the handle
to the desired position and x the lock
system.
ADJUSTING THE LOWER LINK
Implement
Adjusting the
stabilizer
Smooth connection
Inserting the pin
in the slot hole.
Rough connection
(Moving, etc.)
Inserting the pin in
the location other
than the slot hole
as the implement
is not swaying.
When you are attaching an
implement (like plow) requir-
ing some traction, mount the
assembling spot of the top link
into the hole C.
When you are moving with an
attached implement, you have
to mount the top link into the
hole A or B. If not, the lifting part
can be troubled, and it can fall
down because the draft sensor
is activated.
CAUTION

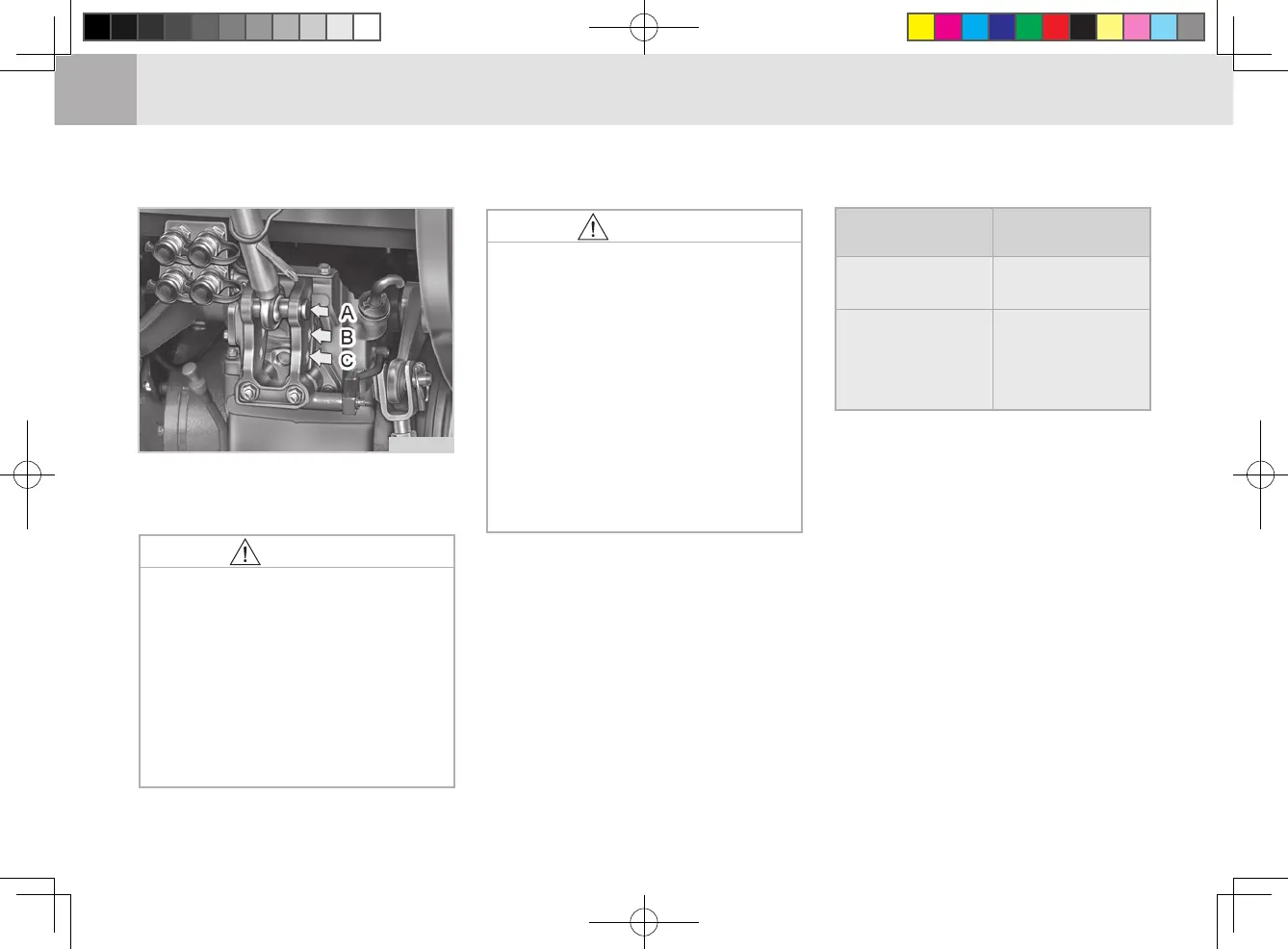

TOP LINK
S76O602A
(A) Traction power is not required
(B) Heavy load traction work
(C) Normal load traction work
A plate describing how to at-
tach the implement is placed
on the standard implement of
our company.
When you are attaching an
implement (like rotary) not re-
quiring any traction, mount the
assembling spot of the top link
into the hole A or B.
CAUTION
