PTO CLUTCH SWITCH
PTO switch consists of the auto/manu
-
al selector switch and the engage/dis-
engage switch.
1. PTO engagement - AUTO
If the PTO clutch selector switch is
turned to AUTO position, the PTO is
disengaged automatically when the
hydraulic lifting arm (or implement)
is lifted with a position adjusting le-
ver to the predetermined position.

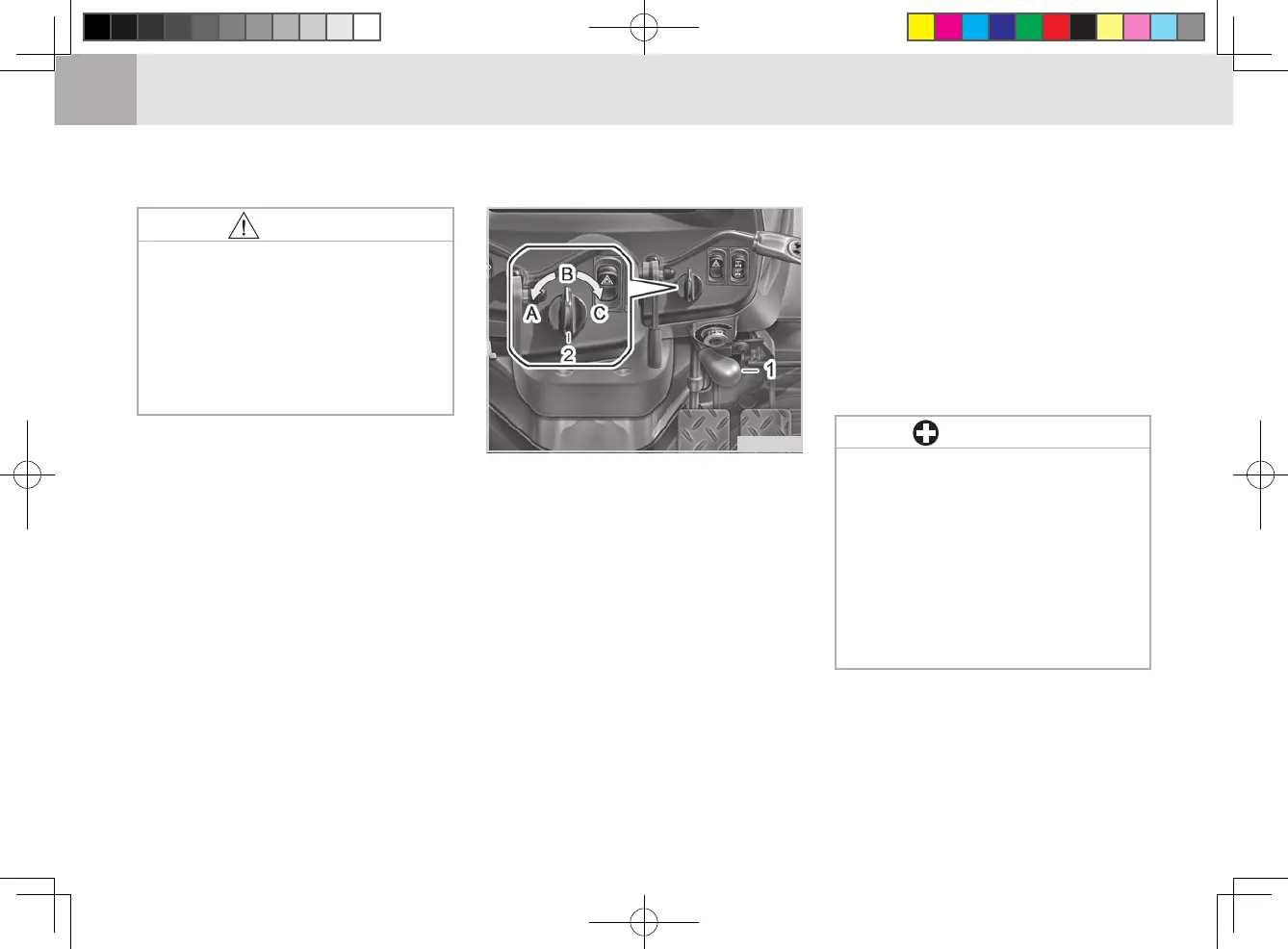

S76o546a
(1) PTO Shift Lever
(2) PTO Selector Switch (Auto / Manual)
(A) AUTO (B) NEUTRAL (C) MANUAL
2. PTO Engagement - Manual
If the PTO clutch selector switch is
turned to Manual position, the PTO
keeps operating regardless of the
lifting height of the lifting arm.
3. PTO Disengagement
Turn the PTO clutch switch to "OFF"
position.
When PTO is engaged, slow
down the engine to prevent any
impact load on the PTO. Then,
accelerate the engine at recom-
mended speed.
Disengage the clutch complete-
ly before shifting the PTO shift
lever to prevent transmission
damage.
•
•
IMPORTANT
To avoid personal injury:
When you assemble, remove,
adjust, or clean the PTO drive
system, disconnect the PTO
and stop the engine to be sure
all moving parts of the tractor
are stopped completely.
•
CAUTION
