KIP 7900 - Page 32

Chapter 2 Basic Operations 2-9

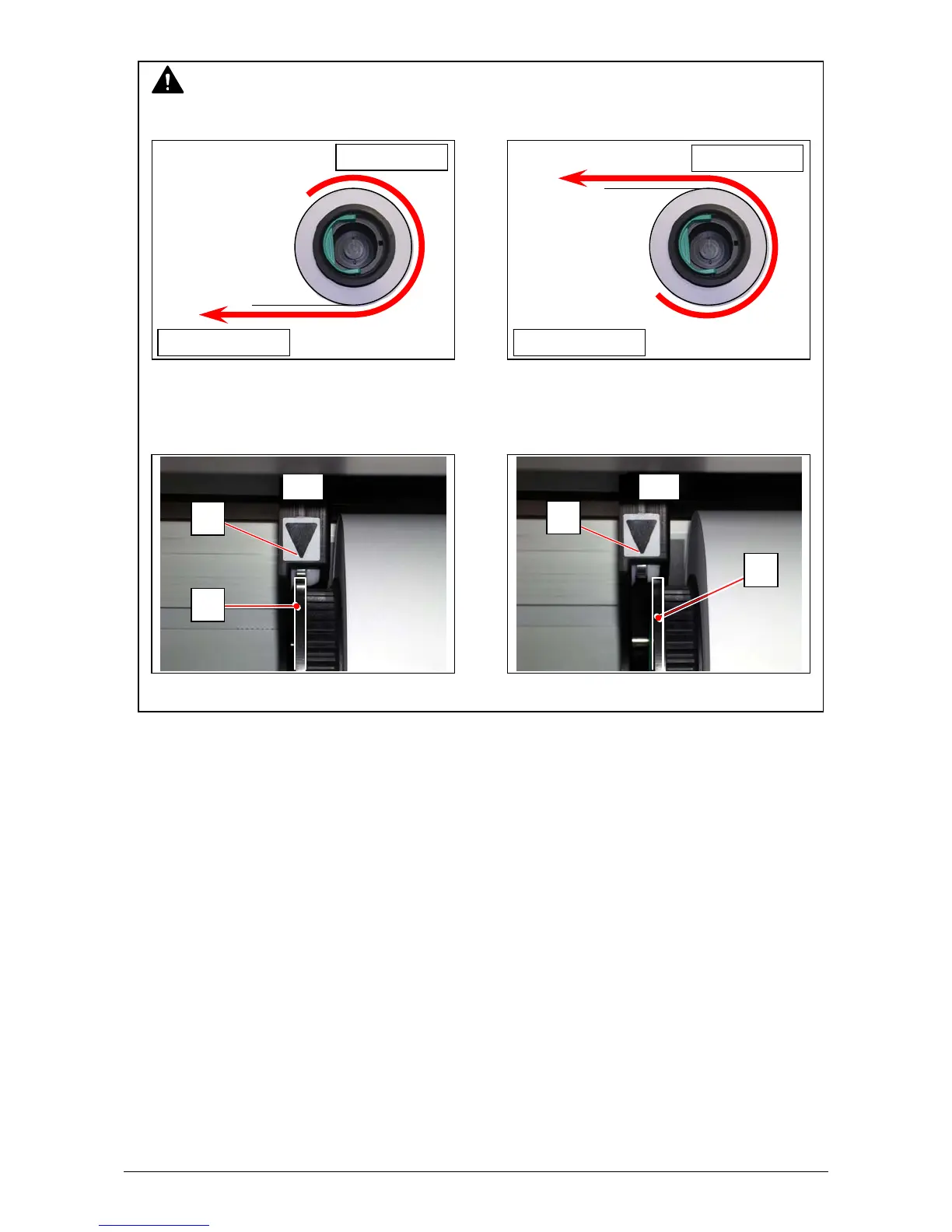

NOTE
(1) Note the rewinding direction.
Correct: Edge comes from bottom Wrong: Edge comes from top
(2) The outside rim (7) of Flange should meet the black triangle (8) marked on Slide Guide.
Otherwise the roll media may fall in Roll Deck or result in an incorrect media feeding.
Correct Wrong
Front: to media
p
ath
8
7
Rear: Deck back
Rear: Deck back
Front: to media
p
ath
OK NG
OK NG
7
8
