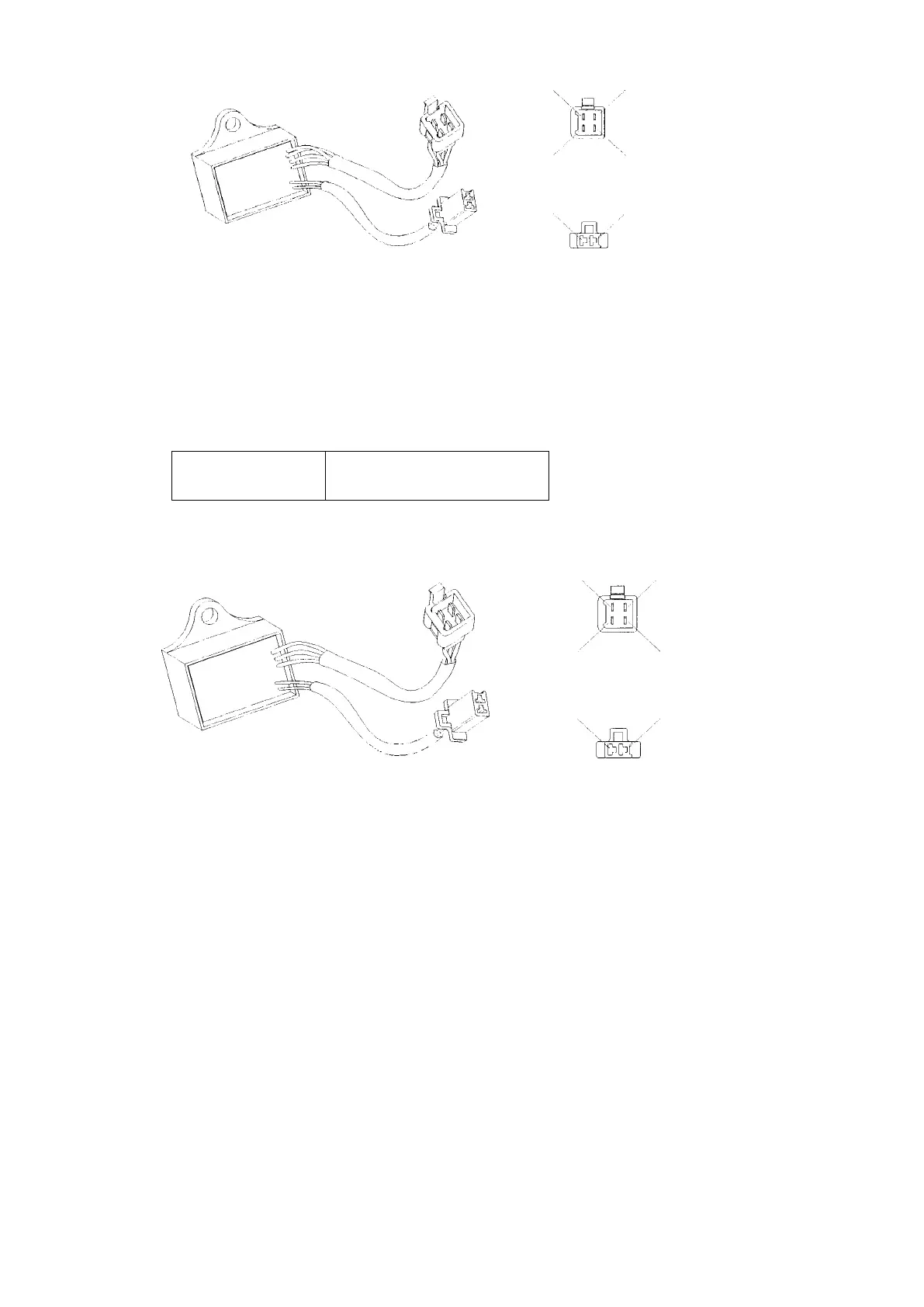

d. Ignition Control Relay
Start the engine, turn off the smart throttle and measure the voltage between green and yellow/green
wires on the connection of the control module. Replace the ignition control module if the voltage exceeds
stipulated voltage.
Ignition voltage
(AC)
27~32V
Yellow Green No
Orange Grey
Green Yellow Green
