8.3 Alternator

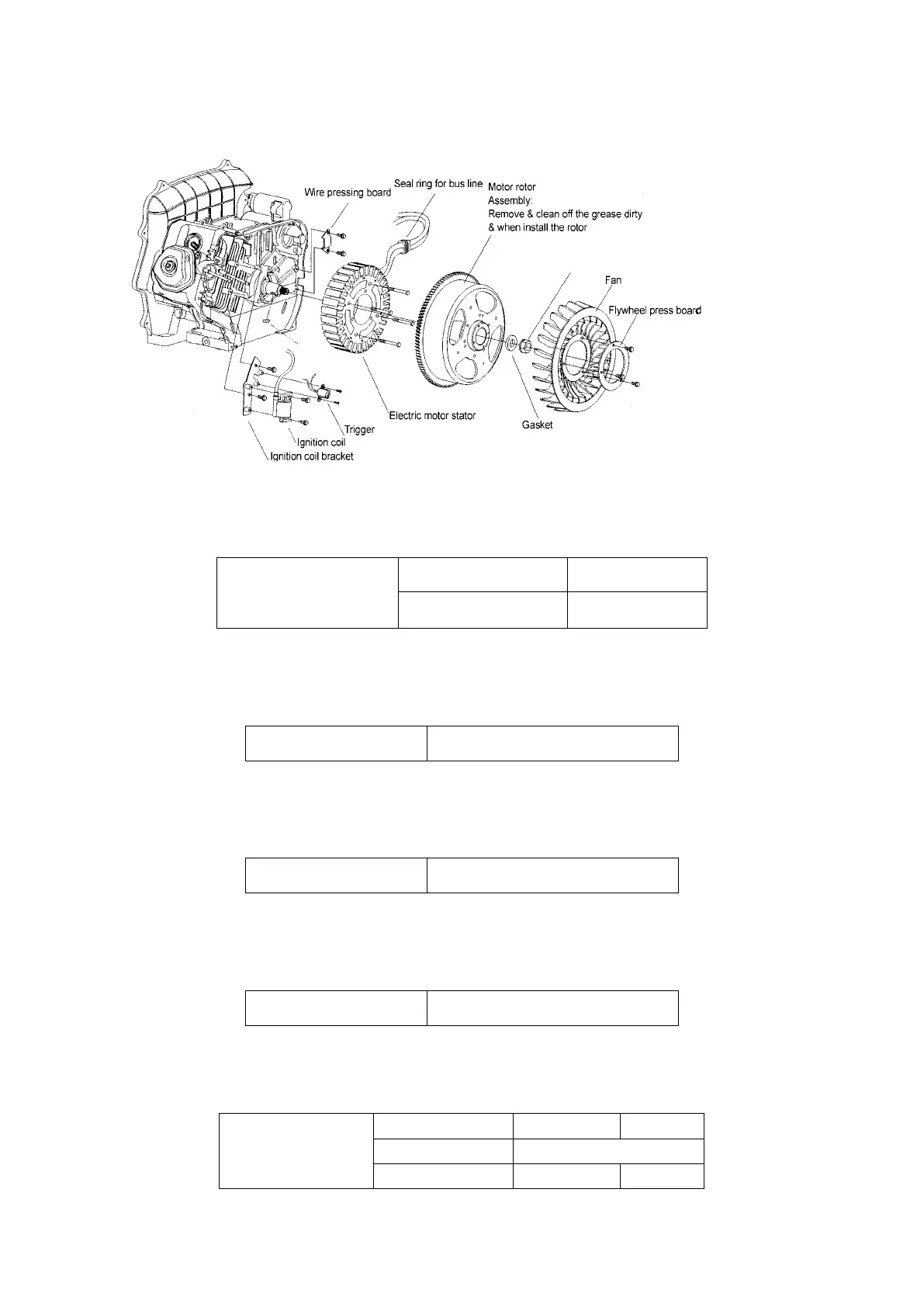

a. Disassembly and reassembly
b. Inspection
(1) Ignition coil
Resistance value
Orange-Yellow/green 0.22~0.24Ω
Gray-Orange 0.15~0.17Ω
(2) External charging coil
Measure the resistance between the two blue wires
Resistance value 0.03~0.04Ω
(3) Built-in charging coil
Measure the resistance between the two purple wires.
Resistance value 0.12~0.16Ω
(4) Sub winding coil
Measure the resistance between two white wires (or green depending on the date of manufacture).
Resistance value 0.08~0.12Ω
(5) Main winding
Measure the resistance between three wires in black(or red).
Resistance value
120/240V 120V 240V
Double voltage Single voltage
0.45~0.60Ω
0.09~0.10Ω
0.9~1.1Ω
Flywheel nut M8x1.5
120-130Nm)
