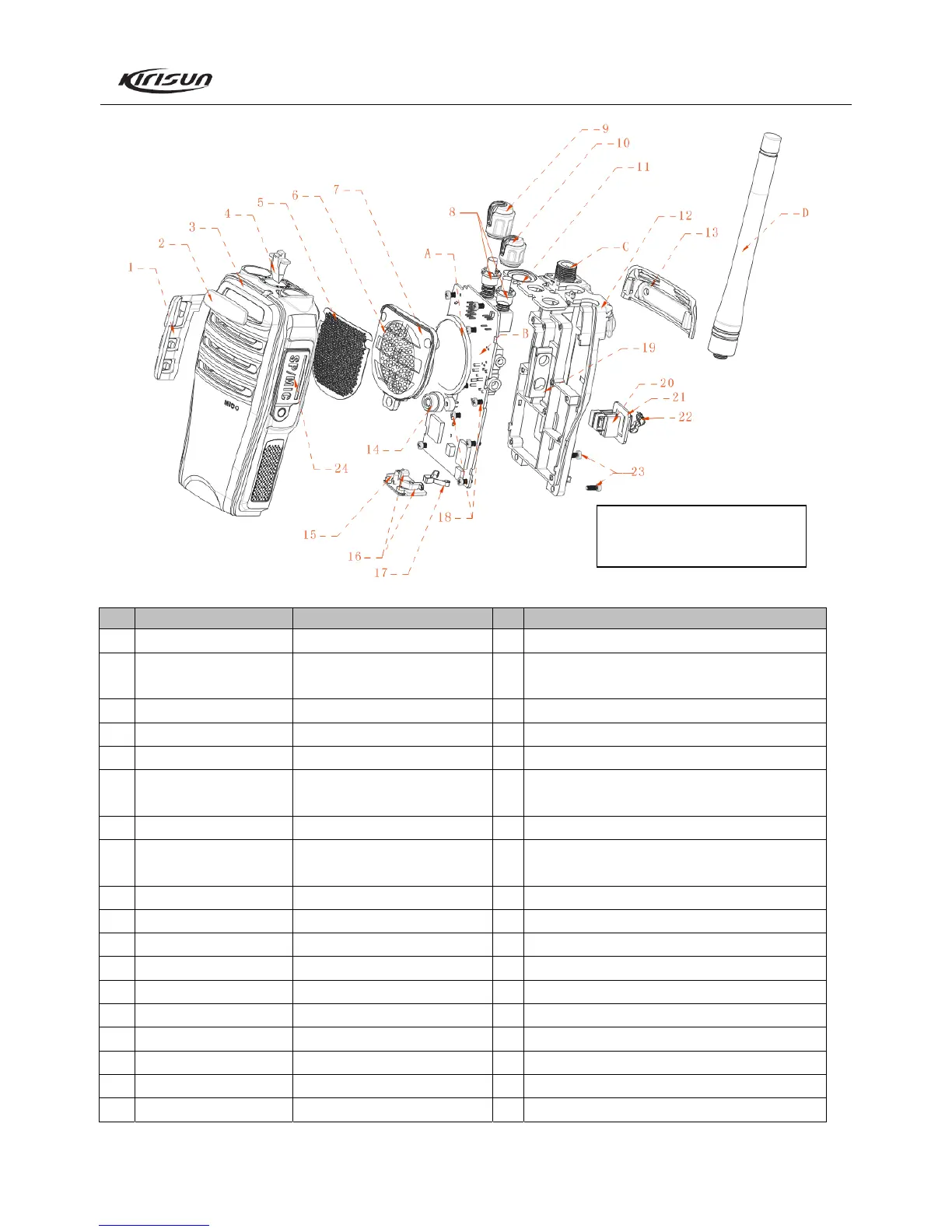

PT260 Service Manual
11
No. Part No. Description Psc Note
1
7MHR-7134-01A-WO PT260 PTT button 1 Material: 50 degree silica gel, black
2
7MHP-7134-06A-WCA PT260 LOGO 1
Material: PMMA, silk-screen, black background, argent
logo
3
7MHP-7134-01A-W0A PT260 Front cabinet 1 Material: ABS, black, silk-screen
4
7MHP-7134-07A-WC PT260 Light guide 1 Material: PMMA, translucence
5
7MHS-7134-01A-W PT260 Stainless steel net 1 Material: steel, hardness: 0.2mm, aperture: ø0.8mm
6
7GCB-360001-W0 36 waterproof net of the speaker 1
Material: black waterproof cloth, diameter 36mm*
depth 0.1mm(558)
7
7MHP-7134-04A-WO PT260 Speaker base 1 Material: ABS, black
8
7NRC-060090058-W1
Screws of VOLUME/CHANNEL
SELECTOR Knob localizer
2 Material: copper, M6mm*9mm, 5.8mm (Depth)
9
7MHP-7025-02A-WOB PT260 Channel selector 1 Material: ABS, black, argent
10
7MHP-7025-03A-WOB PT260 Volume knob 1 Material: ABS, black, argent
11
7MHR-7025-03B-WO PT-3500S Waterproof gasket 1
Material: silica gel, black, hardness: 55
°
12
7MHL-7025-01A-LA PT260 Al alloy cabinet 1 Material: Al alloy, surface process, silvery white
13
7MHP-7134-02A-WO PT260 Back cover 1 Material: ABS, black
14
7MHR-7033-04A-W2 330 Speaker gasket 1 Material: silica gel, rose red
15
7MHP-7134-03A-WO PT260 Battery latch 1 Material: ABS, black
16
7MHP-7025-08A-WO PT-3500S Battery hook (left) 1 Material: POM, black, anneal process
16
7MHP-7025-13A-WO PT-3500S Battery hook (right) 1 Material: POM, black, anneal process
17
7MHF-7025-01A-N PT-3500S Battery hook spring sheet 1 Material: manganic steel, depth: 0.3mm, white
A: Speaker B: Circuitry Board
C: Antenna Head D: Antenna
