INSTALLATION
INSTALLATION

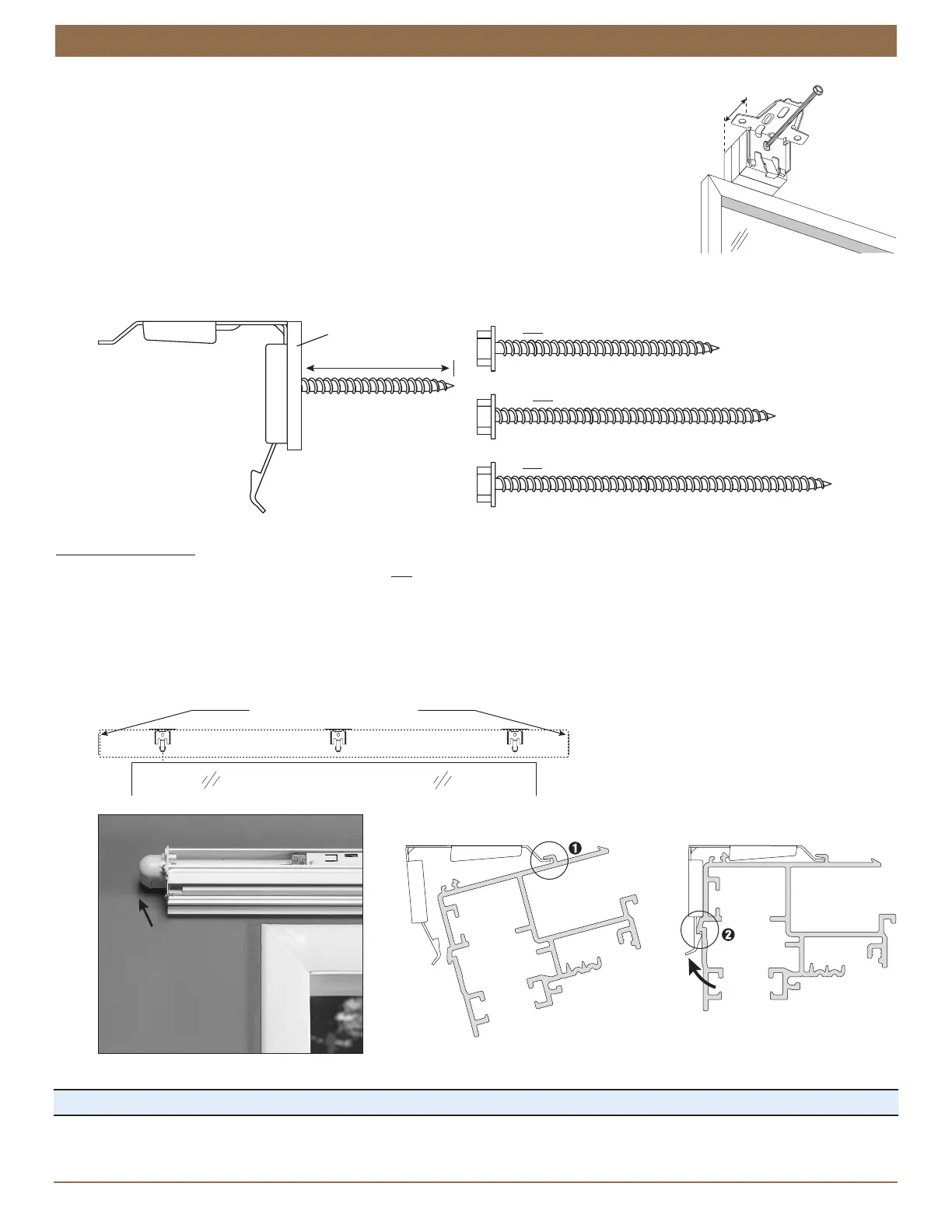

Attach the spacer blocks and installation brackets with #6 hex head mounting screws long
enough for a secure installation. (See chart below.) Longer screws are not provided.
The top of the spacer blocks should be at the desired shade height.
The front edges of the installation brackets must be level and aligned to each other.
CAUTION: Use drywall anchors when mounting into drywall.
CAUTION: The rear of the spacer blocks must be flush against a flat surface. Do not mount
spacer blocks and installation brackets on curved molding.
IMPORTANT: The provided 1
1
⁄
2
" screws can only be used with a maximum of one
1
⁄
8
" shim. You
will need to supply longer screws if additional clearance is required.
A minimum 1
1
⁄
4
" length of screw threads must extend beyond the last spacer block or shim. Use
appropriate wall anchors when mounting into drywall.
Mount the Headrail
Mount the headrail into the installation brackets. Do not remove any components from the headrail. Both end plates should remain
attached to the ends of the headrail.
Carefully align the headrail with the end marks on the mounting surface. Headrail position cannot easily be adjusted after
the headrail is mounted. (Remember that the end of the gear box is the end of the headrail on the stacking side.)
Place the front groove on the headrail onto the front lip of the installation brackets.
Rotate the rear of the headrail up and push back until the headrail snaps in place.
Proceed to “Install the Fabric Stack” on page 7.
3" (Not provided; up to 1
1
∕
2
" of spacer blocks/shims)
2
1
∕
2
" (Not provided; up to 1
1
⁄
8
" of spacer blocks/shims)
Never use more than 1
1
∕
2
" of spacer blocks/shims!
2" (Not provided; up to
5
∕
8
" of spacer blocks/shims)
1
1
∕
4
" Minimum
Shim
Maximum of One
Shim with Provided
1
1
∕
2
" Screws
Align Headrail with End Marks
Align End of
Gear Box with
End Mark
Longer Screw
(Not Provided)
Maximum
1
1
∕
2
"
Snap in
Place
Front of Bracket
To Next Page
