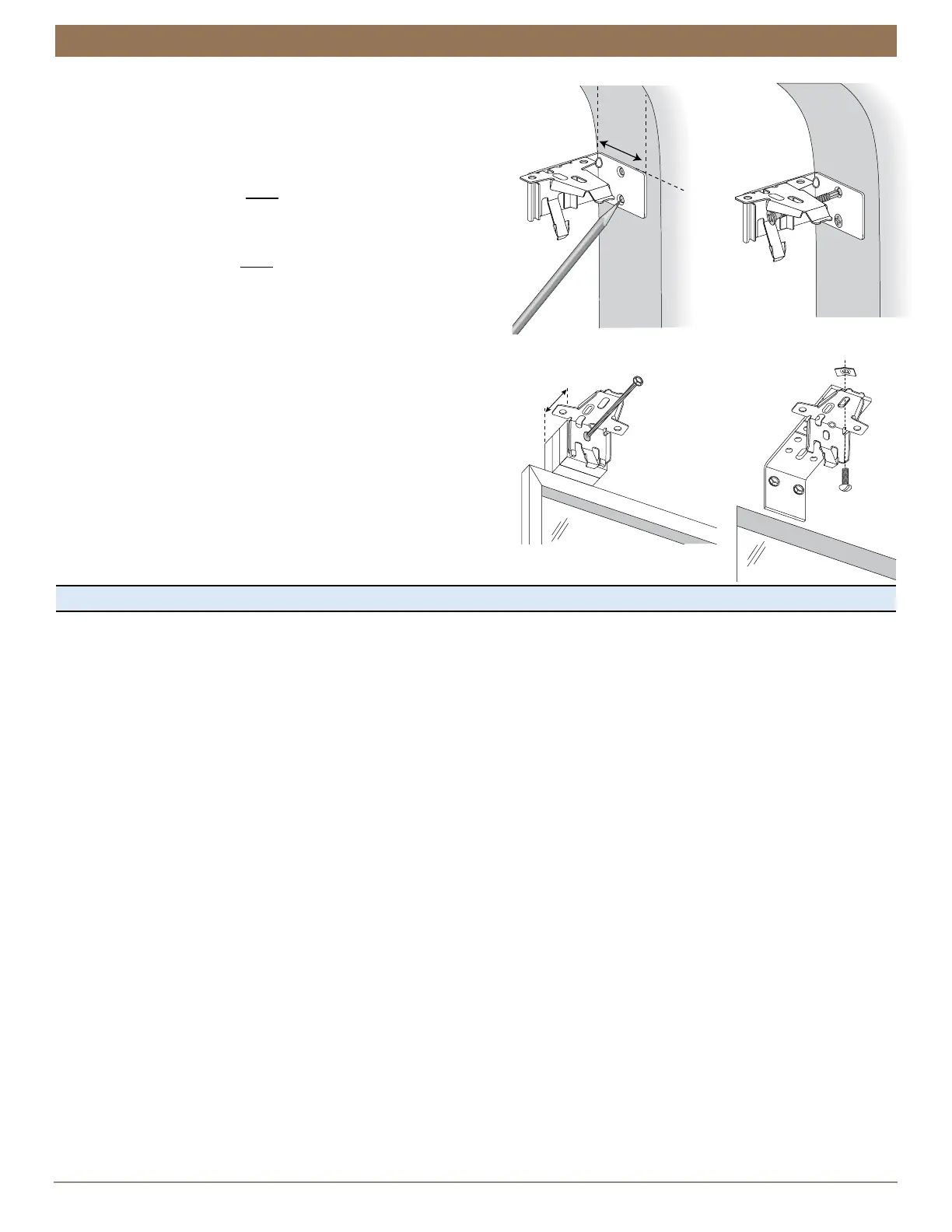

Mount the Installation Brackets — End Mount
End mount the headrail when conventional mounting techniques
will not work — for example, in an arched window opening.
■
Position the end mount brackets so that the top of the attached
installation brackets are at the ordered height of the shade.
CAUTION: Both brackets must be installed at the same depth
and height.
■
Mark both screw holes for each end mount bracket.
➤
The mounting surface must be vertical and flat, not part of an
arched curve.
IMPORTANT: Add
1
⁄
2
" to the following minimum mounting depths
if a battery wand is used; add
3
⁄
4
" to the following minimum
mounting depths if a rechargeable battery wand is used.
➤
Minimum mounting depth is 1
1
⁄
4
" for
3
⁄
8
" and
3
⁄
4
" cell sizes
and 2" for the 1
1
⁄
4
" cell size. Minimum mounting depth for
a fully recessed end mount is 2
3
⁄
8
" for
3
⁄
8
" and
3
⁄
4
" cell sizes
and 3" for the 1
1
⁄
4
" cell size.
■
Drill the screw holes using a
3
⁄
32
" drill bit.
■
Attach the end mount installation brackets using the flat head screws provided.
CAUTION: Drywall mounting is not recommended.
IMPORTANT: For instructions on installing an arch over a rectangular shade, see the Installation
Instructions that came
with your arch shade.
Proceed to "STEP 2: Mount the Battery Wand" on page 6
