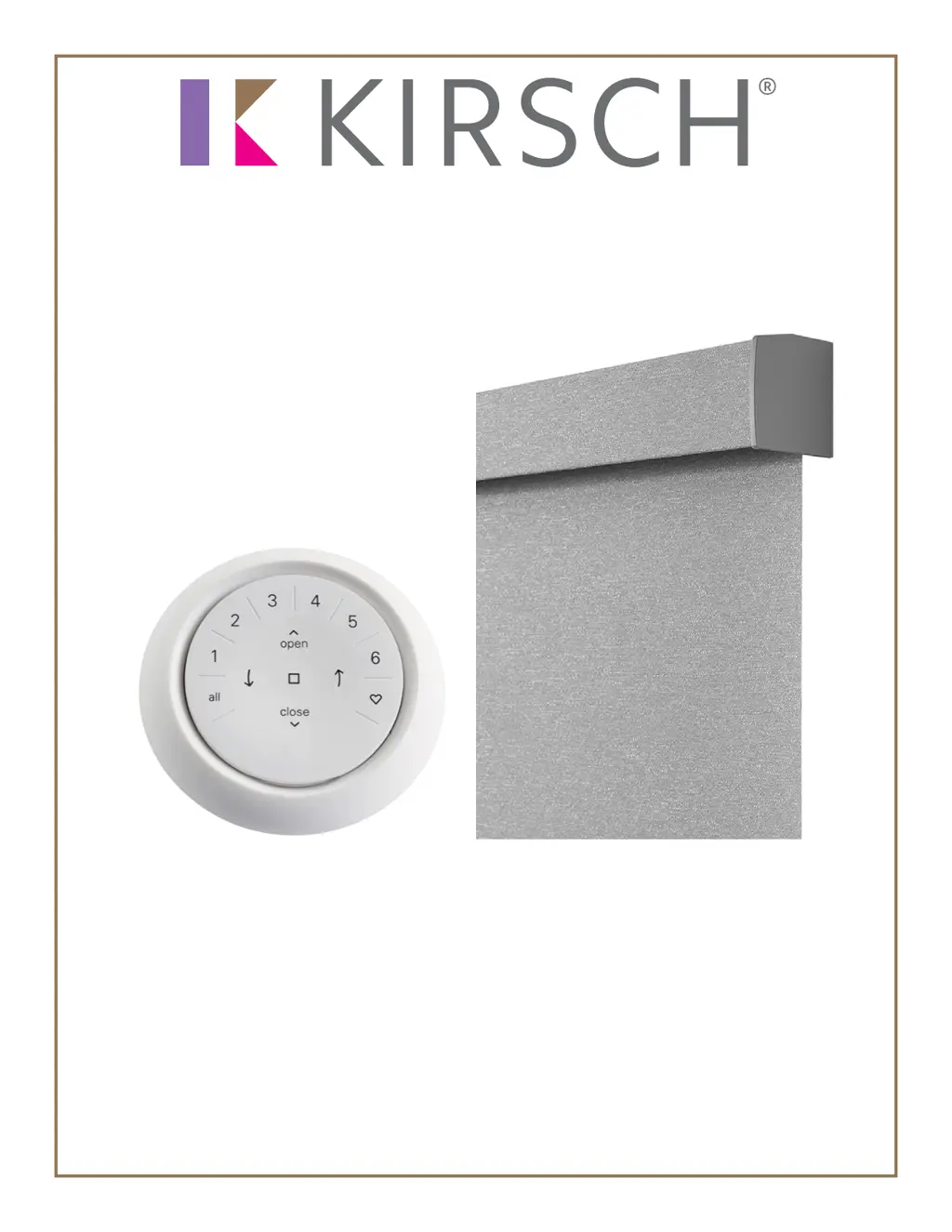

Kirsch Roller & Screen Shade - User Manual

Roller & Screen Shade Collection
Automation III Installation Instructions
Rev. A 5/3/22

Summary

Getting Started

Product View - Standard Shade

Diagram showing the components of a standard roller shade.

Product View - Cassette Shade

Diagram showing the components of a cassette shade.

Product View - Fascia and Pocket Shade

Diagrams showing fascia and pocket shade components.

Product View - Dual Roller Shade

Diagram showing the components of a dual roller shade.

Tools and Fasteners Needed

Lists necessary tools and specific fasteners for different shade types.

Installation Procedures

Installation Overview

Outlines the main steps for installing the shade.

Installation Brackets for Standard Shades

Describes how to mount brackets for standard shades.

Installation Brackets for Cassette Shades

Details bracket requirements for cassette shades based on width.

Installation Brackets for Fascia Shades

Explains bracket placement for fascia shades.

Dual Roller Brackets

Describes bracket placement for dual roller shades.

Mounting Types and Window Terminology

Defines inside/outside mount and window terms.

Inside;End Mount - Standard Shades

Instructions for mounting standard shades inside or at the end.

Outside Mount - Standard Shades

Instructions for mounting standard shades outside the window.

Inside Mount - Cassette Shades

Instructions for mounting cassette shades inside.

Outside Mount - Cassette Shades

Instructions for mounting cassette shades outside.

Fascia Shades Installation

Instructions for assembling and mounting fascia shades.

Inside;End Mount for Fascia Shades

Specific instructions for inside/end mounting fascia shades.

Dual Roller Shades - Inside;End Mount

Instructions for inside/end mounting dual roller shades.

Dual Roller Shades - Outside Mount

Instructions for outside mounting dual roller shades.

Pocket Shades Installation

Instructions and screw requirements for pocket shades.

STEP 2: Install the Battery Wand

Guides installation of battery wands and related components.

Install Battery Wand Clips

Steps to attach battery wand clips to the cassette.

Install Rechargeable Battery Wand

Instructions for installing rechargeable battery wands and clips.

STEP 3: Install the Shade

Covers the process of physically installing the shade.

General Shade Installation Overview

Instructions for installing various shade types and orientation.

Dual Roller Shades Installation Specifics

Details for installing front/rear dual roller shades.

Cassette Shades Installation

Instructions for inserting cassette shades into brackets.

STEP 4: Connect the Power Source

Details connecting power options to the shade motor.

Attached Battery Wand Power

How to connect power to an attached battery wand.

Satellite Battery Pack Power

Instructions for mounting and connecting a satellite battery pack.

Headrail-Mounted Rechargeable Battery Wand

How to install a headrail-mounted rechargeable battery wand.

Satellite-Mounted Rechargeable Battery Wand

Instructions for mounting a satellite-mounted rechargeable battery wand.

18 V DC Power Supply

How to connect a standard 18V DC power supply.

Daisy-Chain Power Supply

How to connect multiple shades using a daisy-chain power supply.

Testing the Shade

Guides verification of shade operation post-installation.

Operation and Control

Operating the Automation App and Automation III Remote

How to use the app and remote for shade control and programming.

Resetting the Shade

Procedures for calibrating and resetting shade travel limits.

Adjusting the Top Limit (Manually)

Manual adjustment for the top limit of standard shades.

Adjusting Hard Top Limit (Cassette)

Specific manual adjustment for cassette shade top limits.

Install the Standard Bracket Cover

How to install optional bracket covers for aesthetics.

Install the Fascia Panel

How to attach the fascia panel for a finished look.

Troubleshooting Guide

Install the Pocket Bottom

Optional step to attach the pocket bottom for pocket shades.

Troubleshooting Common Issues

General guide to common problems and solutions.

Remote Control Not Responding

Solutions for when the shade does not respond to the remote.

Slow Shade Operation

Solutions for sluggish or slow shade movement.

Fabric Wrinkles or Ripples

Method to fix fabric creases, wrinkles, or ripples using heat.

Battery Wand Battery Replacement

Instructions for replacing batteries in the battery wand.

Rechargeable Battery Wand Charging

Methods for charging the rechargeable battery wand.

Rechargeable Battery Wand Issues

Solutions for issues with rechargeable battery wands.

Fabric Skewing Fix

How to correct fabric skewing during shade operation.

Care and Maintenance

Removing the Shade

Step-by-step instructions for removing different shade types.

Cassette Removal

Specific instructions for detaching cassette shades.

Cleaning Procedures

Methods for cleaning shade fabric and components.

Spot-Cleaning Instructions

Guidelines for spot cleaning specific shade fabrics.

Child Safety Information

Child Safety Warnings

Warnings regarding cord strangulation hazards for children.

Declarations and Compliance

FCC Statement

FCC compliance information for the device.

Canadian ICES-003

Canadian compliance information for the device.

CE Statement

CE compliance statement for the device.

Warranty Information

10-Year Limited Warranty

Details of the product's 10-year limited warranty coverage.

Kirsch Roller & Screen Shade Specifications

General

Brand	Kirsch
Model	Roller & Screen Shade
Category	Window Blinds
Language	English
