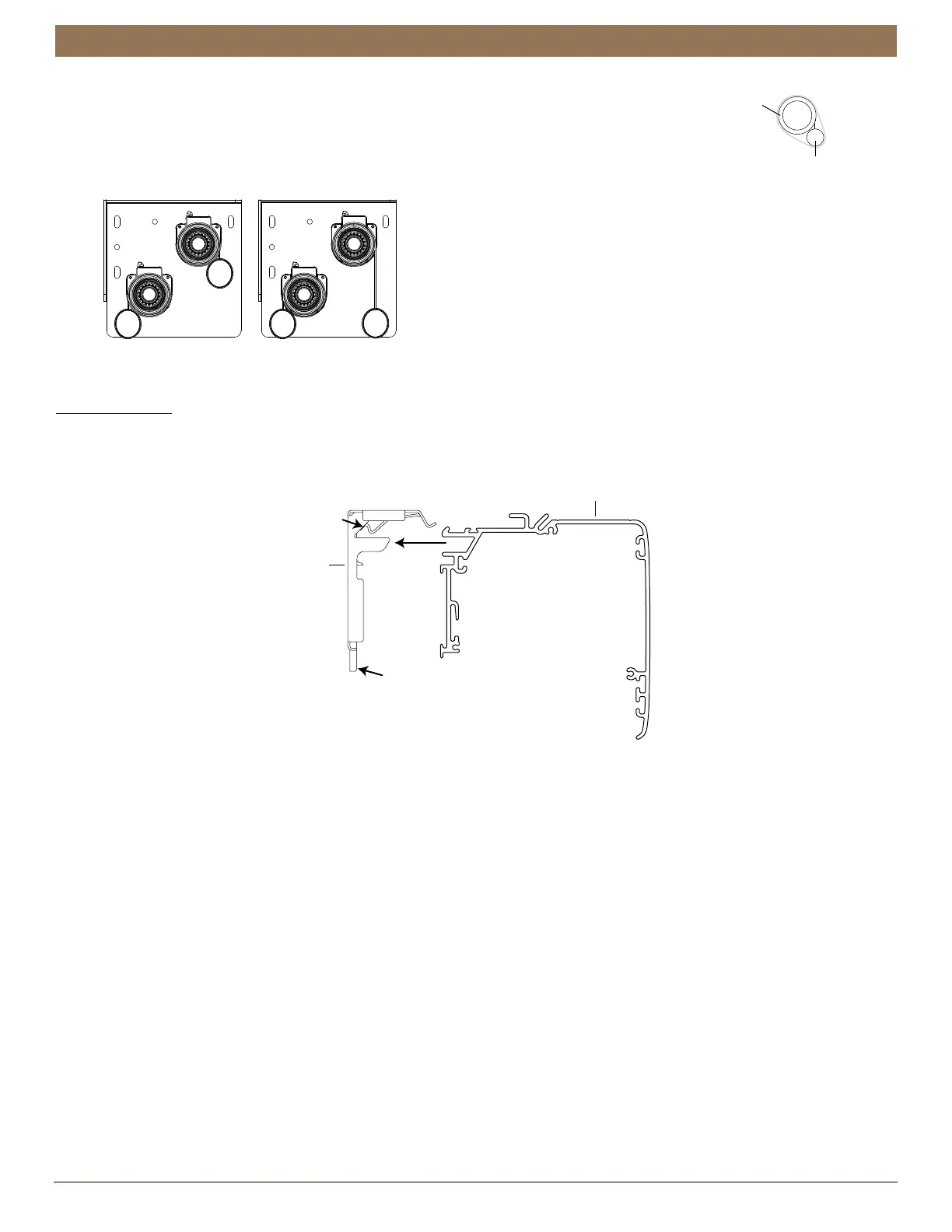

Dual Roller Shades. Install the front shade (using the steps on the previous page) in the front of the dual roller bracket. This
shade is a reverse roll shade and should be oriented as such before installing.
➤
Route the motor cable through the wire retainer to ensure the cable does interfere with the
rear shade.
➤
The front shade is set at the factory to roll tight when raised. You can adjust the top limit to
hide the rear shade roll, if desired. See “Adjusting the Top Limit (Manually)” on page 31.
Cassette Shades
■
Install the cassette straight into the bracket as shown to ensure the features on the bracket align with the open sections in the
back of the cassette.
■
Push the cassette back to snap the spring tab on the bracket.
Standard Roll
Bottom
Bar
Paper
Banding
Tube and
Shade
Fabric
Reverse Roll
Factory Setting Top Limit Adjusted to
Hide the Rear Shade Roll
Spring
Tab
Bracket
Cassette
Release Tab
