15
INSTALLATION
INSTALLATION
■

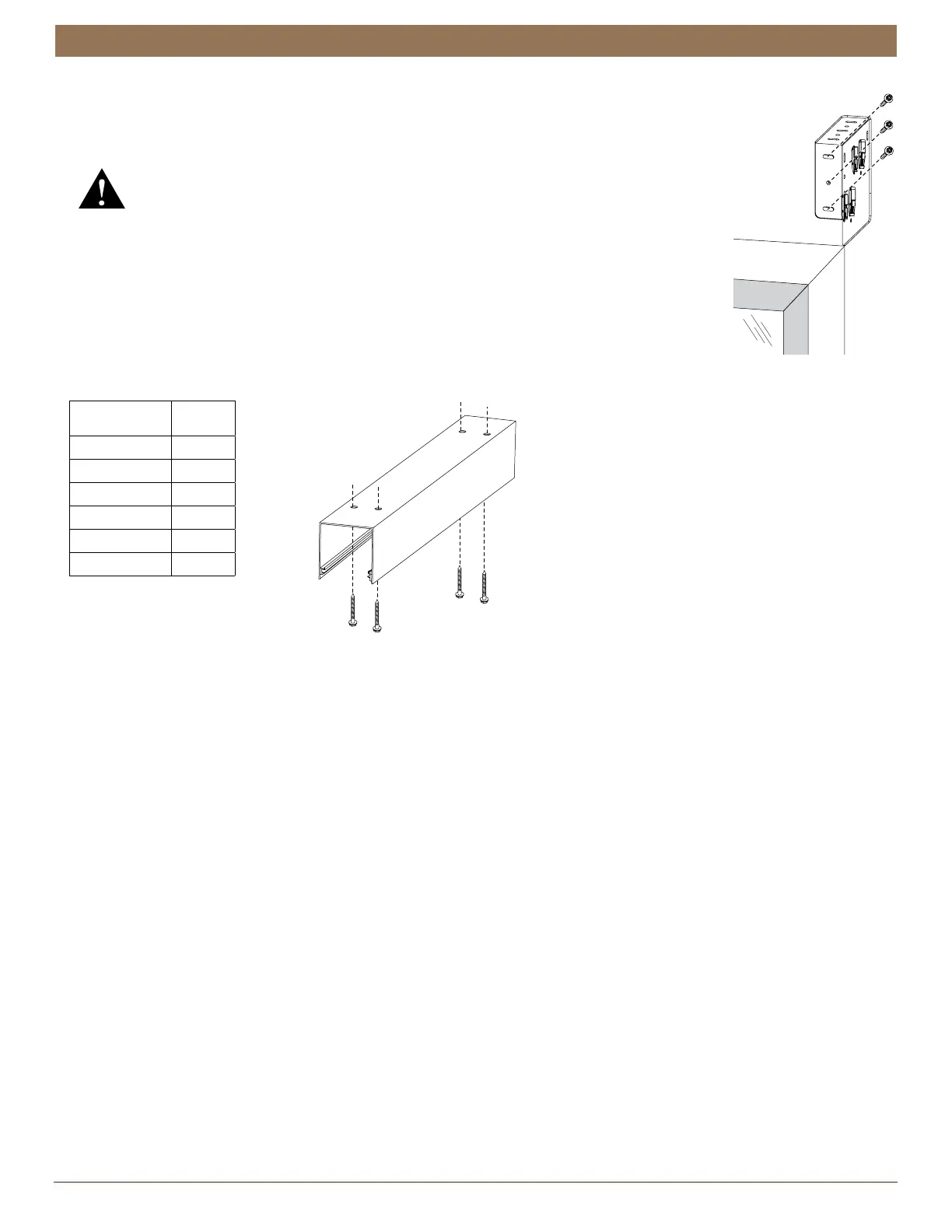

Place the outside edge of motor-side bracket on the previously made mark and mark each of the screw holes.
➤
The top of the installation brackets should be at the desired height.
IMPORTANT: The top of the installation brackets must be level and aligned to eachother.
■
Use a
1
∕
8
” drill bit to drill the screw holes.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with concrete
anchors. Drywall anchors are not recommended.
■
Use a level to check that the mounting surface is level. Shim the brackets if necessary.
■
Attach the installation brackets using the screws provided.
Pocket Shades
CAUTION: Kirsch® strongly recommends that shades in a pocket be mounted through wood or metal
studs by a professional installer.
The number of #10 x 1
1
⁄
2
” Phillips hex washer head screws (not provided) required will vary depending
on the width of the shade, as shown in the table below.
■
Locate the studs or other substantial material for your mounting surface.
■
Mark the pocket for the locations you have chosen for the screw holes.
■
Drill the screw holes into the pocket and the mounting surface using a
1
⁄
8
” drill bit.
■
Fasten the pocket to the mounting surface using the screws.
Outside Mount – Right Side
Shade
Width
Screws
Required
Up to 36" 4
36
1
⁄
8
" – 66" 6
66
1
⁄
8
" – 90" 8
90
1
⁄
8
" – 120" 10
120
1
⁄
8
" – 150" 12
150
1
⁄
8
" – 180"
14
Brackets Removed for Clarity
To Next Page
