INSTALLATION
INSTALLATION
Dual Roller Shades - Inside/End Mount
The installation brackets are always mounted so that the inner surfaces face each other. The brackets must be mounted so the
shade is level wheninstalled.
■
Center the ordered width -
1
⁄ 8 ” in the window casement and mark its location.
➤
The minimum depth required for mounting is 3
1
⁄ 4 ”. The fully recessed depth is 5
1
⁄ 2 ”.
■
Place the outside edge of the brackets on the previously made marks and mark each of the screw holes.
■
Remove the adhesive backing on the wire retainer and place it to the upper back corner of the motor-side bracket.
IMPORTANT: The front edges of the installation brackets must be level and aligned to eachother.
■
Use a
1
⁄ 8 ” drill bit to drill the screw holes.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with concrete anchors.
Drywall anchors are not recommended.
■
Check that the mounting surface is level. Shim the brackets if necessary.
■
Attach the installation brackets using the screws provided.
➤

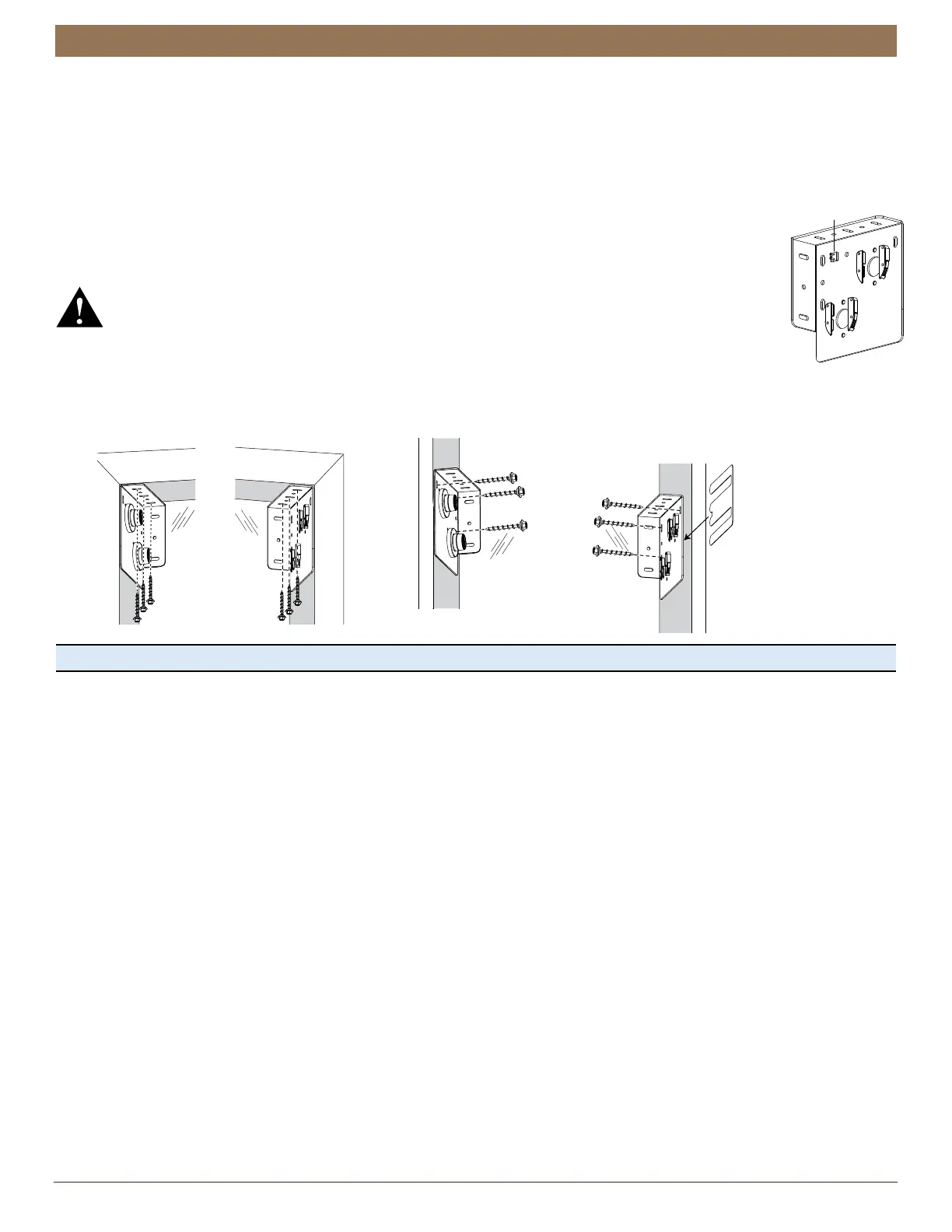

End Mount Shims (Optional). To ensure light gap is even on both sides, you may need to shim the bracket. Orient the shim
as shown. Slide the shim in between the bracket and window casement. Tighten the screws fully.
Proceed to “STEP 3: Install the Shade” on page 18.
Wire
Retainer
Shim
(Optional)
End Mount
Inside Mount
