4-4

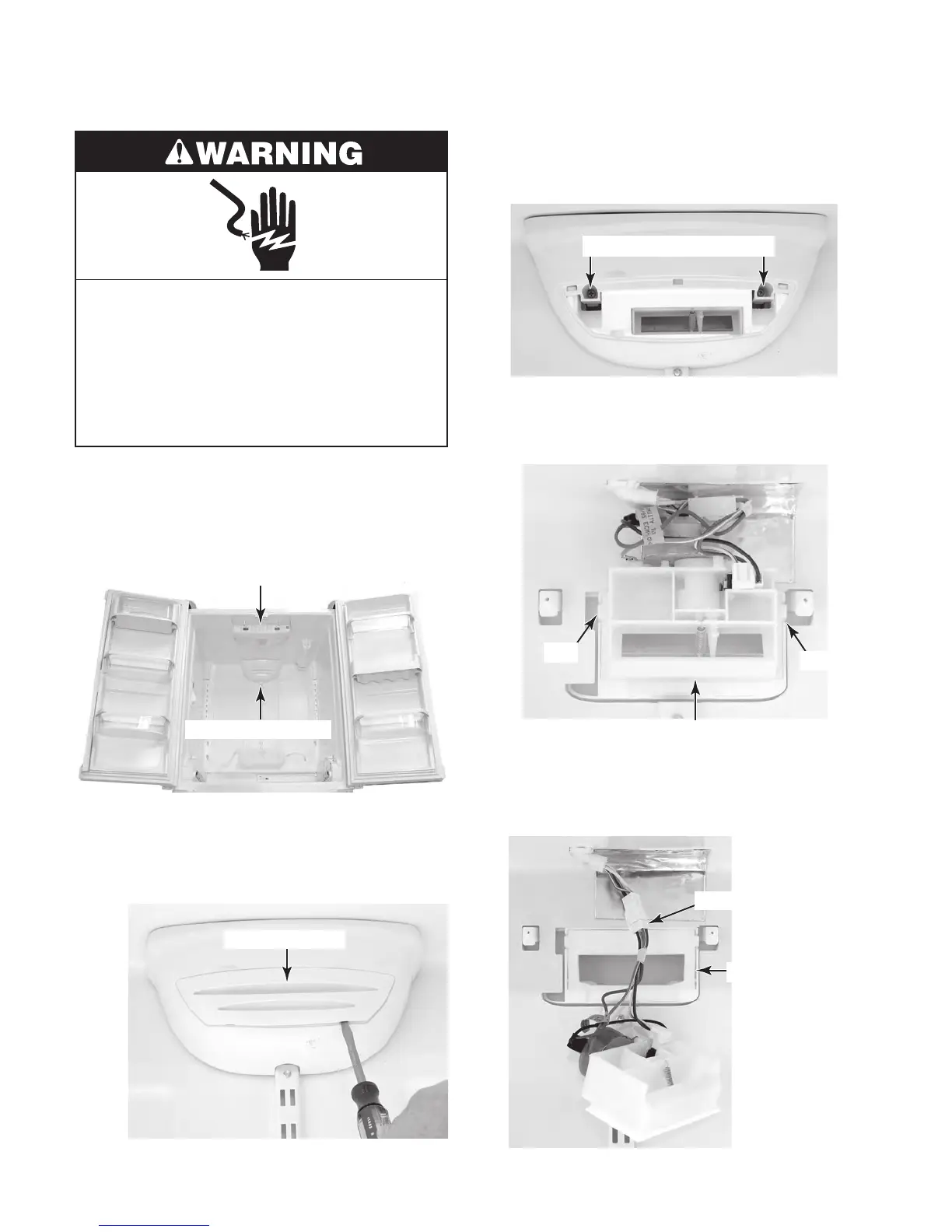

REMOVING THE MOTORIZED AIR DOOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug refrigerator or disconnect power.
2. Open the refrigerator compartment doors
and remove any items that are below the
user interface.
3. Place the tip of a flat-bladed screwdriver
into the slot of the motorized air door
cover, pry out to release the locking tabs,
and remove the cover.
User Interface
Motorized Air Door
Air Door Cover
4. Remove the two screws from the motor-
ized air door housing, and remove the
housing from the liner.
Air Door Housing Screws
5. Push out on the two tabs to release the
motorized air door, and remove the air
door from the liner.
Motorized Air Door
6. Disconnect the motorized air door con-
nector from the wiring harness.
7.
Remove the foam gasket from the liner.
Tab
Tab
Air Door Connector
Foam Gasket
To Next Page
