4-23

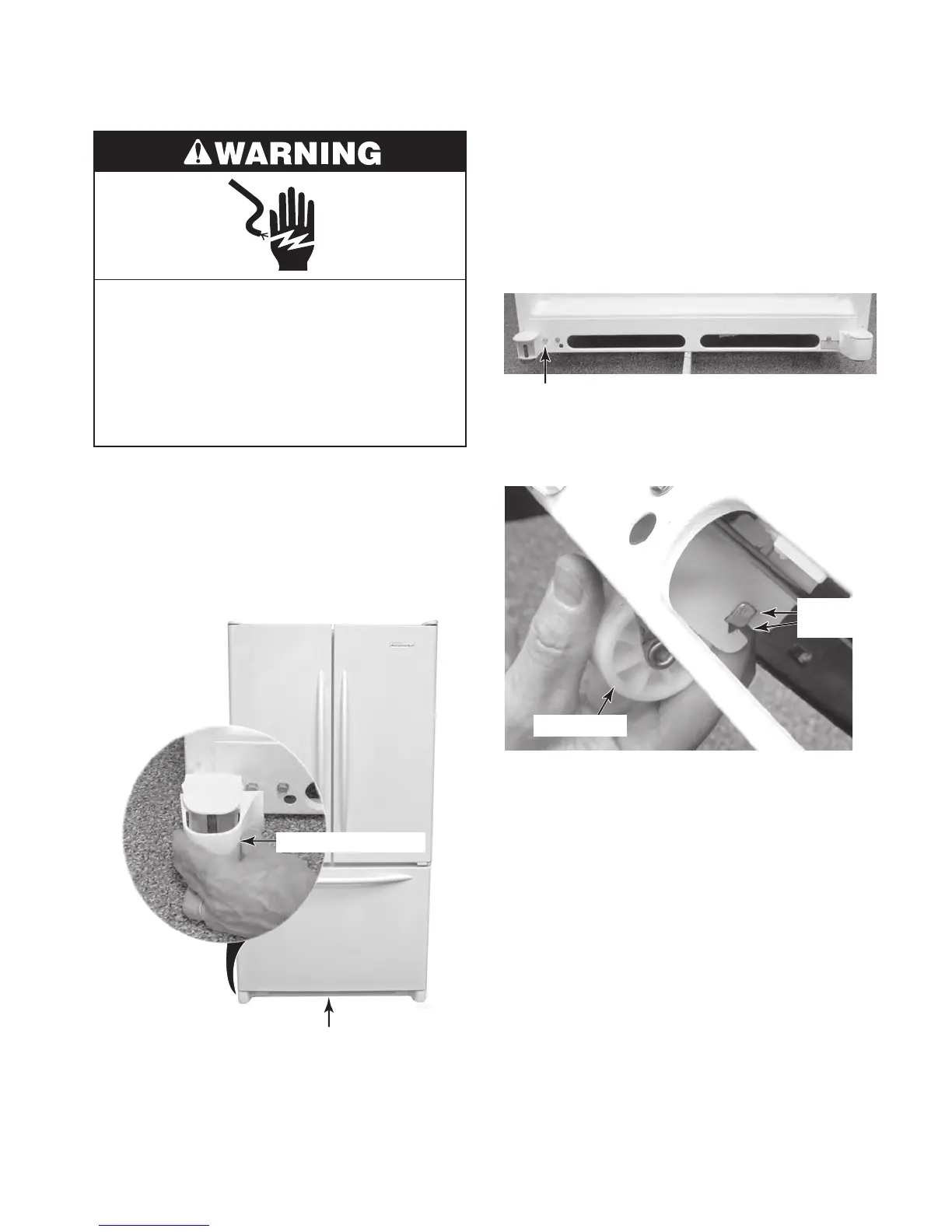

REMOVING THE FRONT AND REAR ROLLERS
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug refrigerator or disconnect power.
2. Pull the refrigerator away from the wall.
3. Unsnap and remove the air grille from the
refrigerator.
4. Pull the front roller cover off the roller you
are removing.
5. To remove a front roller:
a) Tilt the refrigerator back approximately
3˝ and prop the front up.
b)
Turn the silver (outer) leveling screw
to the left (counterclockwise) and re-
move
the threaded end from the front
roller.
Air Grille
Front Roller Cover
c) Rotate the front roller so that the brack-
et tab aligns with the chassis slot, and
remove the roller.
Front Roller
Bracket
Tab In Slot
Front Roller Leveling Screw
6. To remove a rear roller:
a) Tape the refrigerator doors closed.
b) Tilt the refrigerator forward approxi-
mately 4˝ and prop the back up.
Continued on the next page.
