KitchenAid KBFA25ER - Removing the Freezer Door Switch & Light Socket

4-10

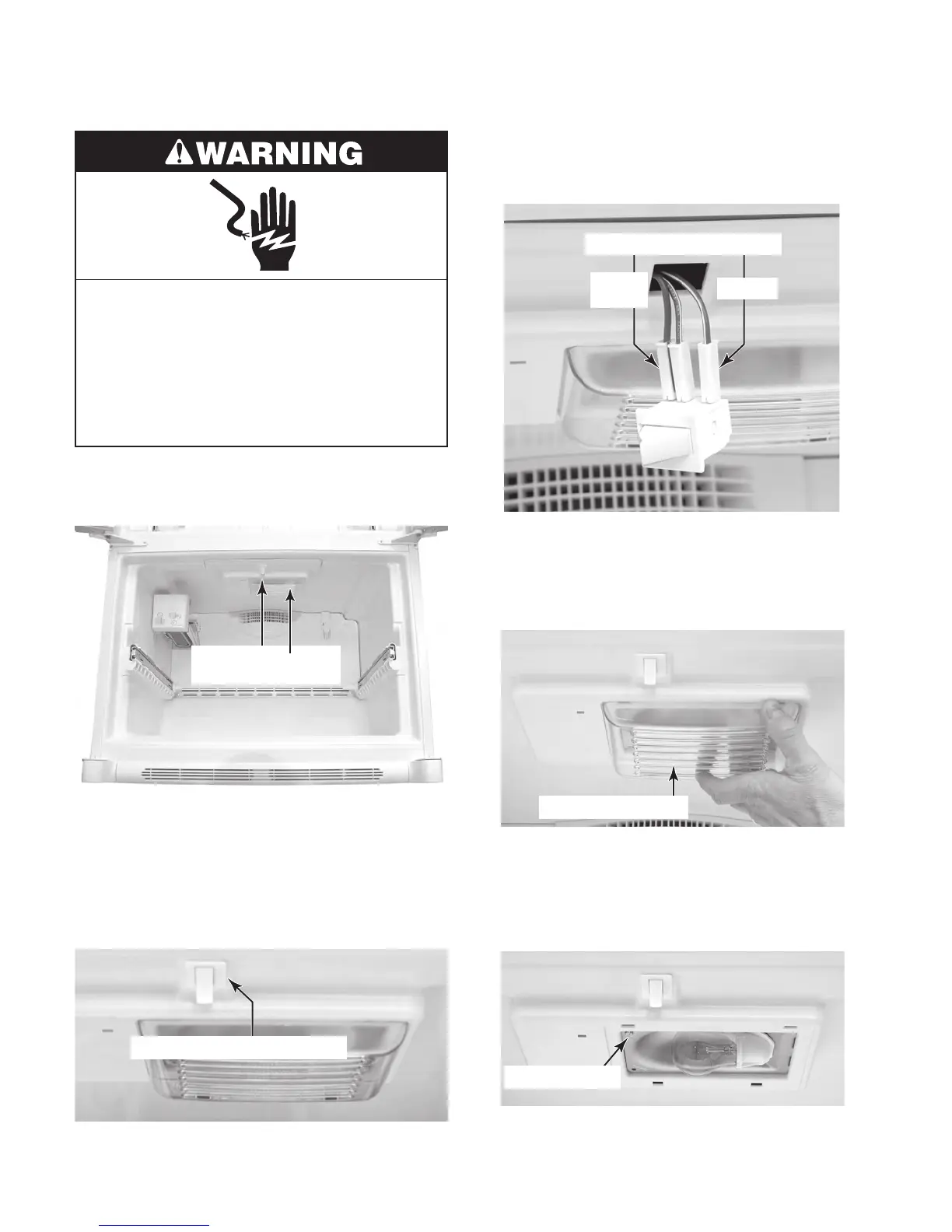

3. To remove the freezer door switch:
a) Slide the end of a putty knife under the
left flange of the freezer door switch,
press it firmly against the locking tab
of the switch, and pry the switch out of
the liner.
b) Disconnect the wires from the freezer
door switch terminals and remove the
switch.
REMOVING THE FREEZER DOOR SWITCH & LIGHT SOCKET
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug refrigerator or disconnect power.
2. Open the freezer compartment.
Freezer Door Switch
& Light Socket
Pry Out Freezer Door Switch
Freezer Door Switch Wires
RD-WH
RD &
VI-WH
4. To remove the freezer light socket:
a) Pull the back of the freezer light cover
forward to release the two tabs, then
pull down, and remove the cover.
Freezer Light Cover
b) Remove the freezer bulb from the light
socket.
c)
Remove the hex-head screw from the
reflector and lower the reflector.
Reflector Screw
