4-6

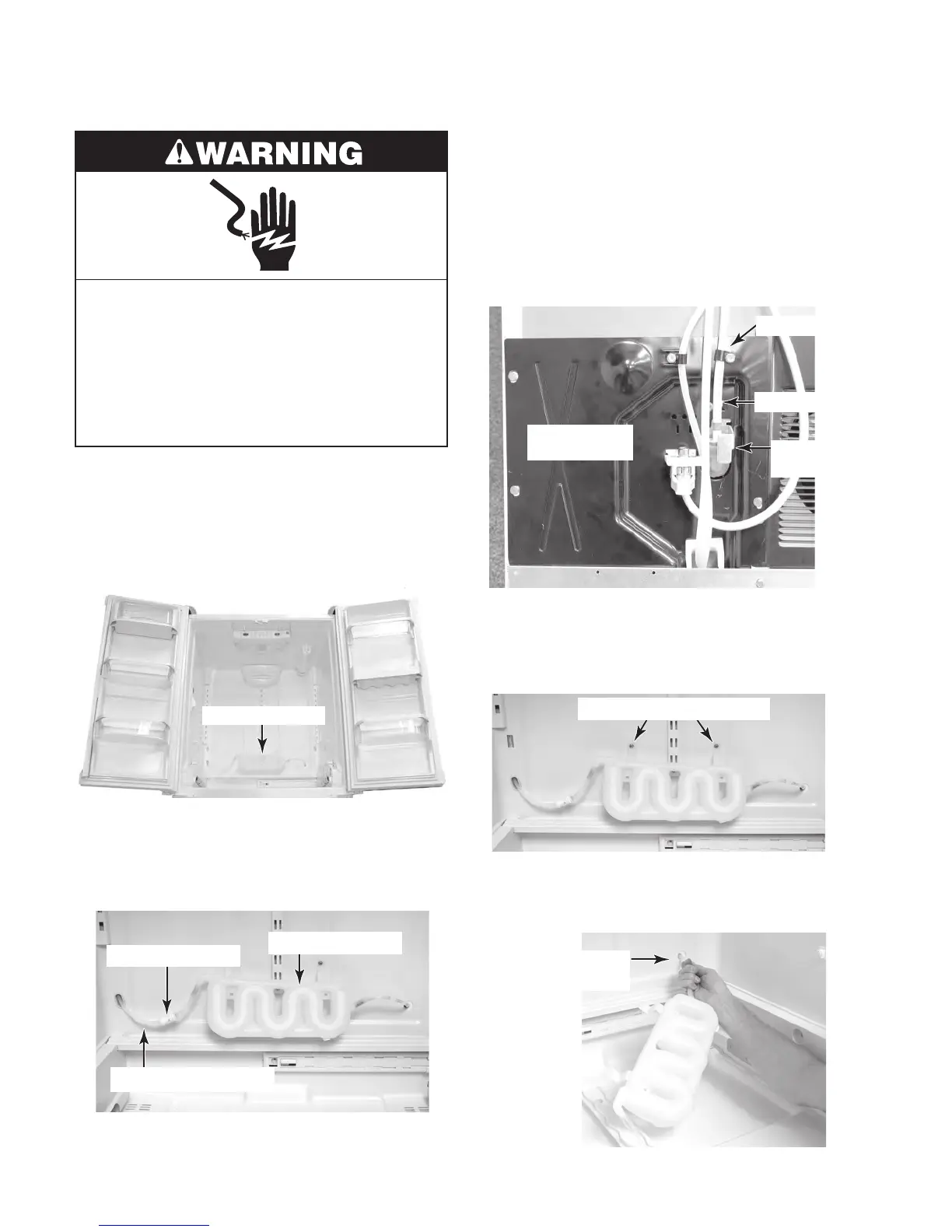

REMOVING THE WATER RESERVOIR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug refrigerator or disconnect power.
2. Turn off the water supply to the refrigerator.
3. Open the refrigerator compartment doors
and remove the items inside to access
the water reservoir.
Water Reservoir
Quick-Disconnect
Water Dispenser Tube
Water Reservoir
4. Remove the water dispenser tube from
the quick-disconnect on the left side of
the water reservoir, and drain any water
from the tube into a container.
5. Pull the refrigerator away from the wall.
6. Remove the hex-head screw from the
dual water valve tube clamp and remove
the clamp from the tube.
7.
Pull the end of the water tube from the
quick-disconnect on the dual water
valve.
Water Valve
Access Cover
Dual Water
Valve
Tube Clamp
Water Reservoir Screws
8. Remove the two hex-head screws from
the water reservoir. NOTE: Be
careful
not to spill any of the water in the reser-
voir when removing it.
9.
Pull the water reservoir tubing out of the
channel in the refrigerator liner and re-
move the reservoir
.
Pull Tubing Out
Of Channel
Water Tube
To Next Page
