4-14

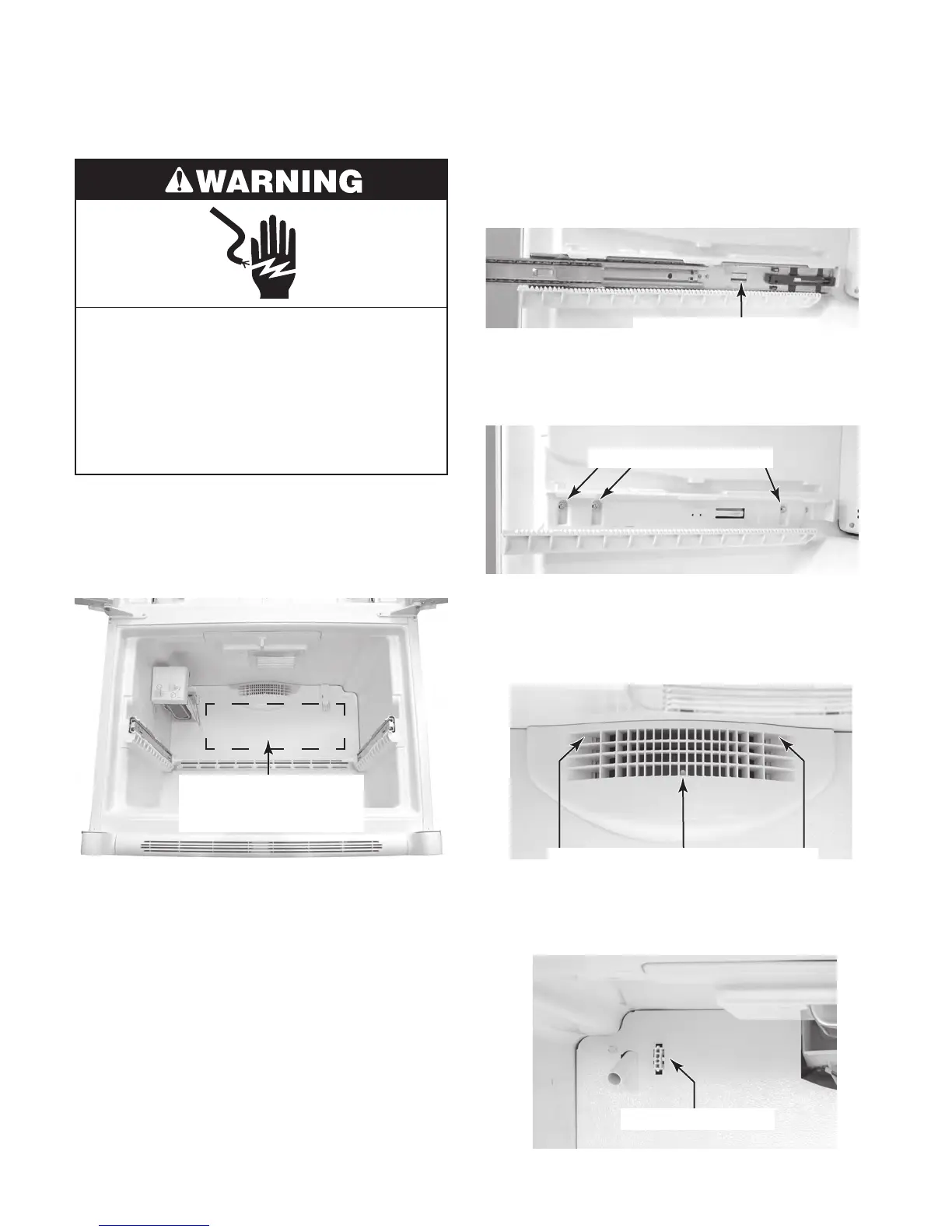

REMOVING THE EVAPORATOR FAN MOTOR, DEFROST
BIMETAL, DEFROST HEATER, & EVAPORATOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug refrigerator or disconnect power.
2. Open the freezer compartment and re-
move all of the items inside the compart-
ment.
Evap Fan Motor, Defrost
Bimetal, Defrost Heater,
& Evaporator
3. Remove the freezer thermistor (see page
4-12 for the procedure).
4.
Remove the freezer basket and left and
right freezer basket glides. Press the re-
l
ease lever to remove the glides.
6. Remove the three hex-head screws from
the left glide support and remove the sup-
p
ort.
Left Glide Support Screws
5. Press the release arm on the left freezer
basket glide, and pull the glide out of its
support.
Left Glide Release Arm
7. Press a screwdriver blade against the left,
right, and then center air diffuser release
tabs, and pull the diffuser off the evaporator
cover.
3 Air Diffuser Release Tabs
8. Press the locking tabs to release the ice
maker power connector, and push the con-
n
ector inside the evaporator cover opening.
Ice Maker Connector
To Next Page
