11

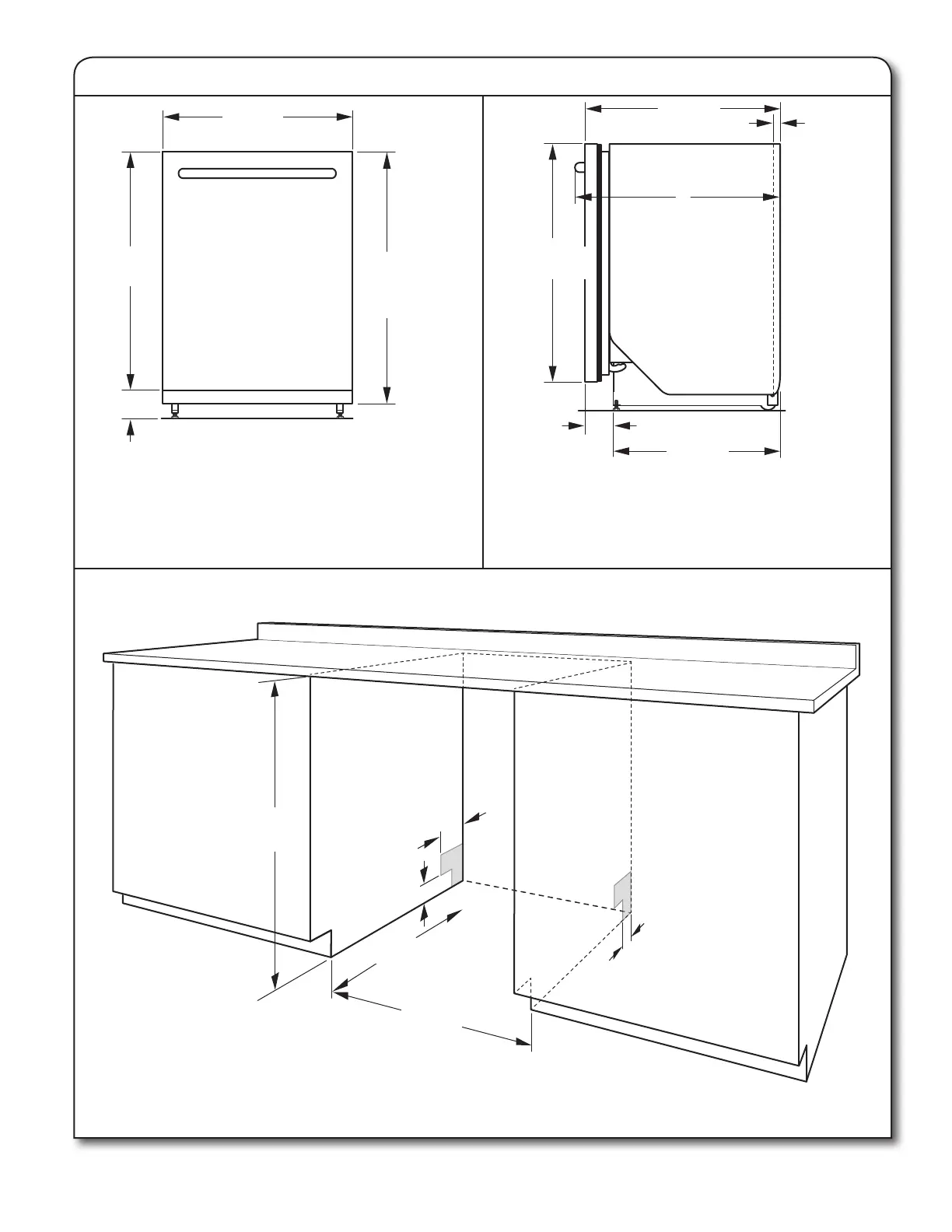

PRODUCT AND CABINET OPENING DIMENSIONS:
.
B
A
C
D
E
23
7
/8"
(60.4 cm)
30"
(76.2 cm)
30"
(76.2 cm)
24½"
(62.6 cm)
3/4"
(1.9 cm)
3¾"
(9.7 cm)
20
13
/16"
(52.9 cm)
33½"
(85.1 cm)
min. with legs
removed
3
1
/2" - 4
1
/2"
(8.4 cm - 10.6 cm)
A. Insulation may be compressed (not used on all models).
B. For panel-ready models, dishwasher depth is 24"
(61.0 cm), not including the 3/4" (1.9 cm) custom door
panel.
C. Door handles may protrude forward of the face of the
dishwasher, varies by model.
Check that all surfaces have no protrusions
that would prohibit dishwasher installation.
34"
(86.4 cm)
21"
(53.4 cm)
3"
(7.6 cm)
4"
(10.2 cm)
24"
(62.0 cm)
2"
(5.1 cm)
6¼"
(15.9 cm)
NOTE: Shaded areas
of cabinet walls
show where utility
connections may be
installed.
D. Measured from the lowest point on the underside of
the countertop. May be reduced to 33½" (85.1 cm) by
removing the wheels and perforated area of insulation
(blanket) on dishwasher.
E. Minimum, measured from narrowest point of opening.
