KitchenAid KDTM404KPS0 - Drain Hose Connection Options; Option A: Waste Disposer, No Air Gap; Option B: No Waste Disposer, No Air Gap; Option C: Waste Disposer, With Air Gap

25

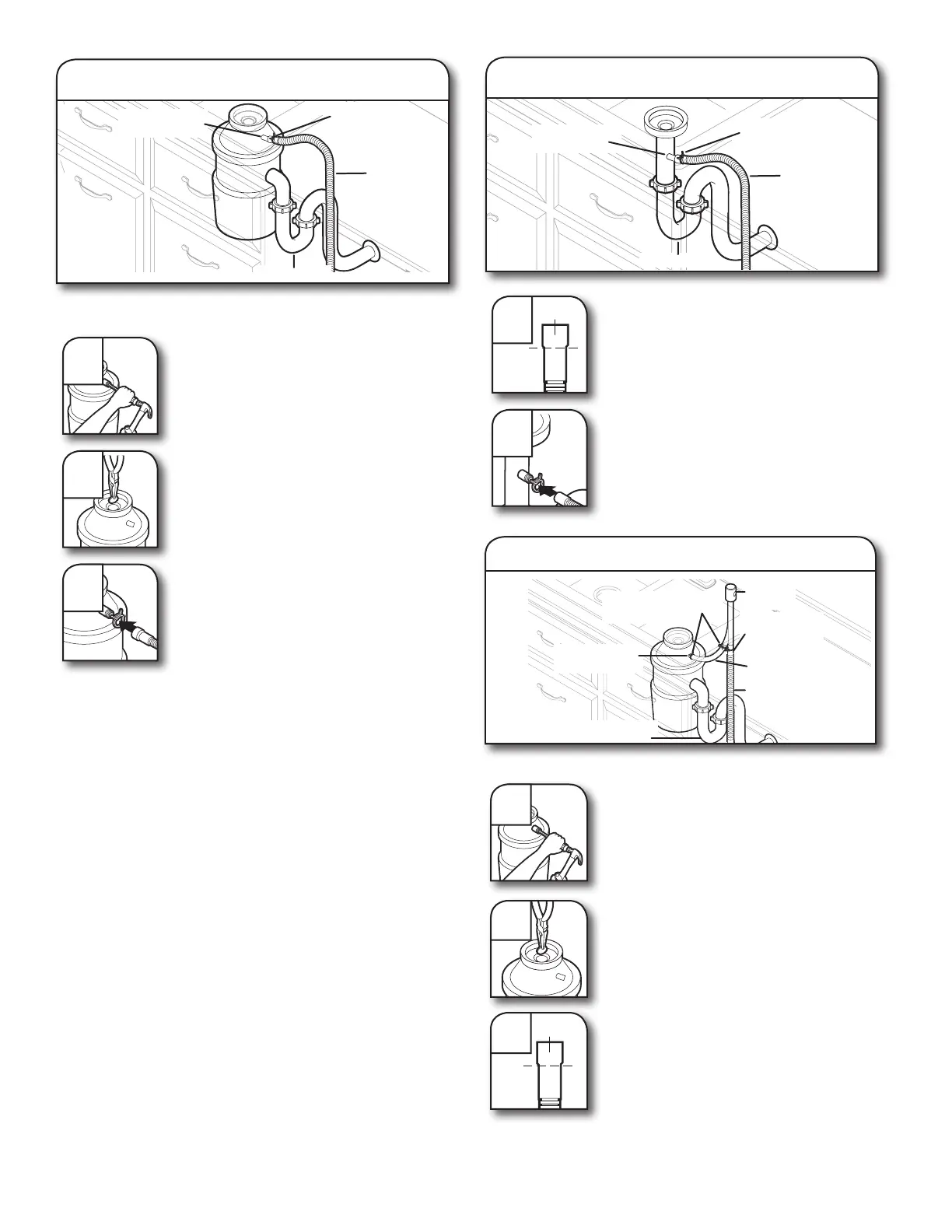

Option A: Waste disposer—no air gap
Disposer inlet
Large drain
hose clamp
Drain hose
Drain trap
Helpful Tip: Remove disposer knockout plug.
1
1. Using a hammer and screwdriver, knock
plug into disposer.
2
2. Use needle-nose pliers to remove plug.
3
3. Attach drain hose to disposer inlet with
large drain hose clamp (provided). Use
pliers to squeeze clamp open and move
into position.
Option B: No Waste disposer—no air gap
Waste tee
Large drain
hose clamp
Drain hose
Drain trap
1
Rubber
end
1. Fit rubber end of drain hose
towastetee.
2
2. Attach rubber end of drain hose to
waste tee with a large drain hose clamp
(provided). Use pliers to squeeze clamp
open and move into position. If the drain
hose was cut, use a 1½" to 2"
(3.8 cm to 5.0 cm) screw-type clamp
(not provided).
Helpful Tip: Remove disposer knockout plug.
1. Using a hammer and screwdriver, knock
plug into disposer.
2. Use needle-nose pliers to remove plug.
3. Connect rubber end of drain hose
toairgap.
NOTE: Do not cut ribbed section.
Option C: Waste disposer – with air gap
Large drain
hose clamp
Drain hose
Screw-type clamps
Air gap
Rubber hose
connector
Drain trap
Disposer inlet
1
2
Rubber
end
3
