COMPONENT LOCATIONS

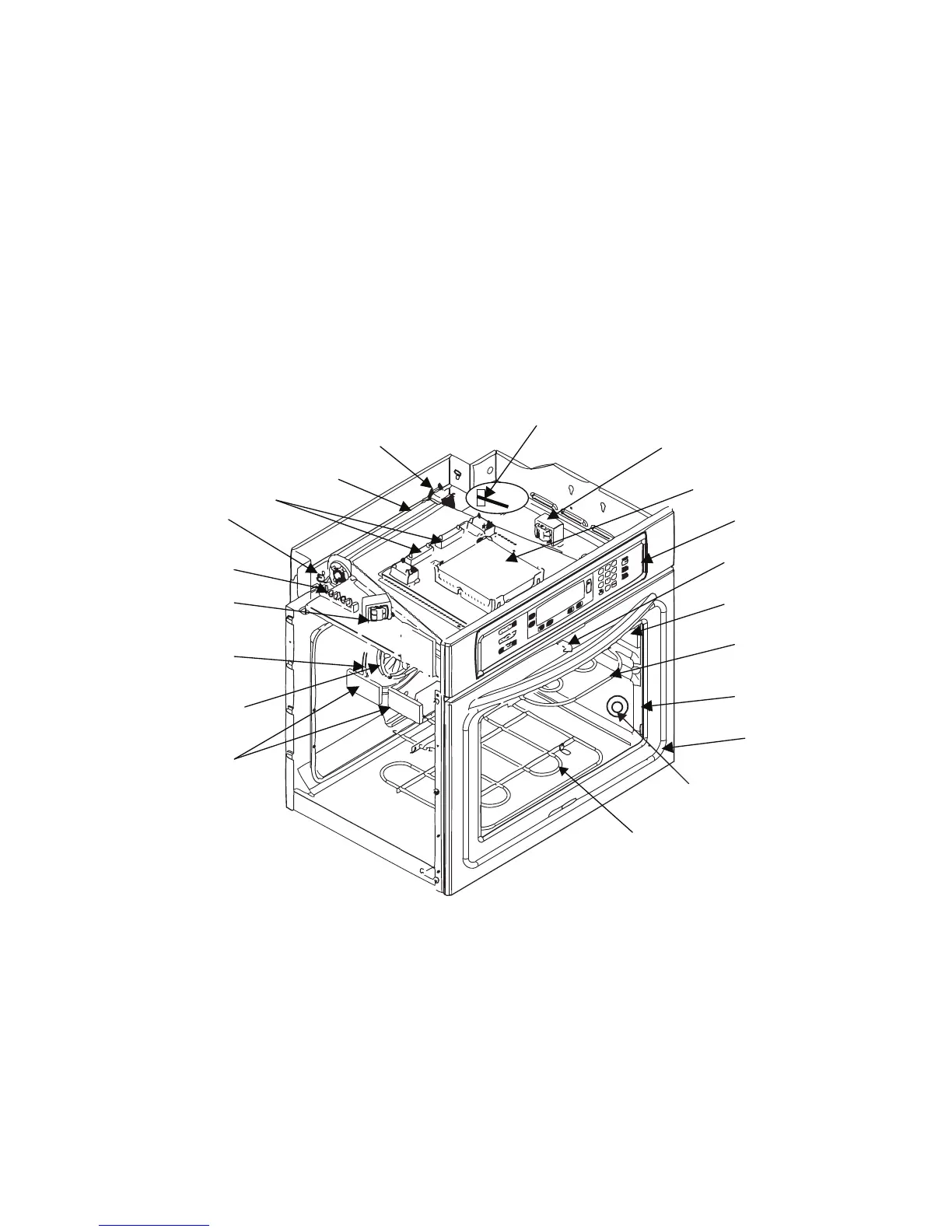

Upper Oven Components
This section instructs you on how to service each component inside the KitchenAid 27˝ & 30˝
Electric Built-In Double Oven. The upper oven components and their locations are shown below.
The lower oven component locations are shown on page 4-23.
COMPONENT ACCESS
Hidden Bake Element
KeyPad (User Interface
Boardplaced behind it)
Oven Shutdown
Thermal Cuto
(Non-resettable)
(*) For SomeModelsOnly
Light Power
Supply
Power Board
MeatProbe(*)
ControlPower Transformer
UpperTemperature
Sensor (onRearPanel)
Door Lock Latch
Halogen Light
IN/OUT Broil Element
OvenDoor Glass
Door Gasket
HalogenLight (2X)
Convection
FanMotor(*)
Convection
Ring Element(*)
Terminal Block
Blower Motor
Blower
Blower Speed
Resistor
