4-7

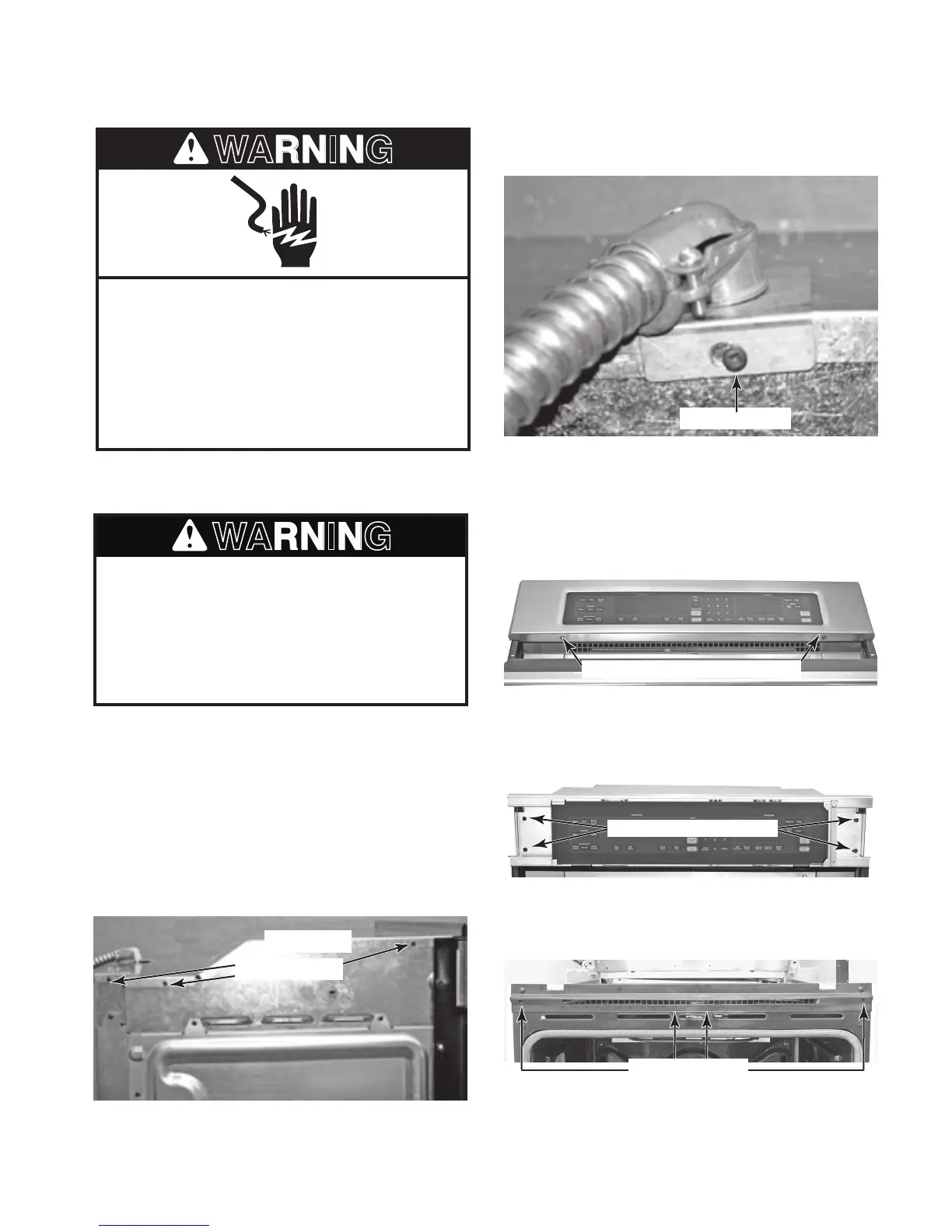

REMOVING THE UPPER DOOR LATCH ASSEMBLY
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug oven or disconnect power.
Top Cover
Screws (3 of 6)
4. Unhook and remove the AC wiring conduit
connector from the back of the cover
Conduit Screw
5. Open the upper oven door, remove the
two at-head screws from the bottom of
the control panel frame, and remove the
frame.
Control Panel Frame Screws
6. Remove the four screws from the front
control subpanel, remove the subpanel
assembly, and lay it on top of the oven.
Front Subpanel Screws
Air Vent Screws
7. Remove the four screws from the upper
oven air vent and remove the vent.
Continued on the next page.
2. Remove the oven from its mounting location
(see “Installation Information” in Section 2)
and pull it forward so that you can access
the top cover.
3. Remove the six screws from the top cover
and remove conduit screw and remove
the cover.
Excessive Weight Hazard
Use two or more people to move and
install oven.
Failure to do so can result in back or
other injury.
To Next Page
