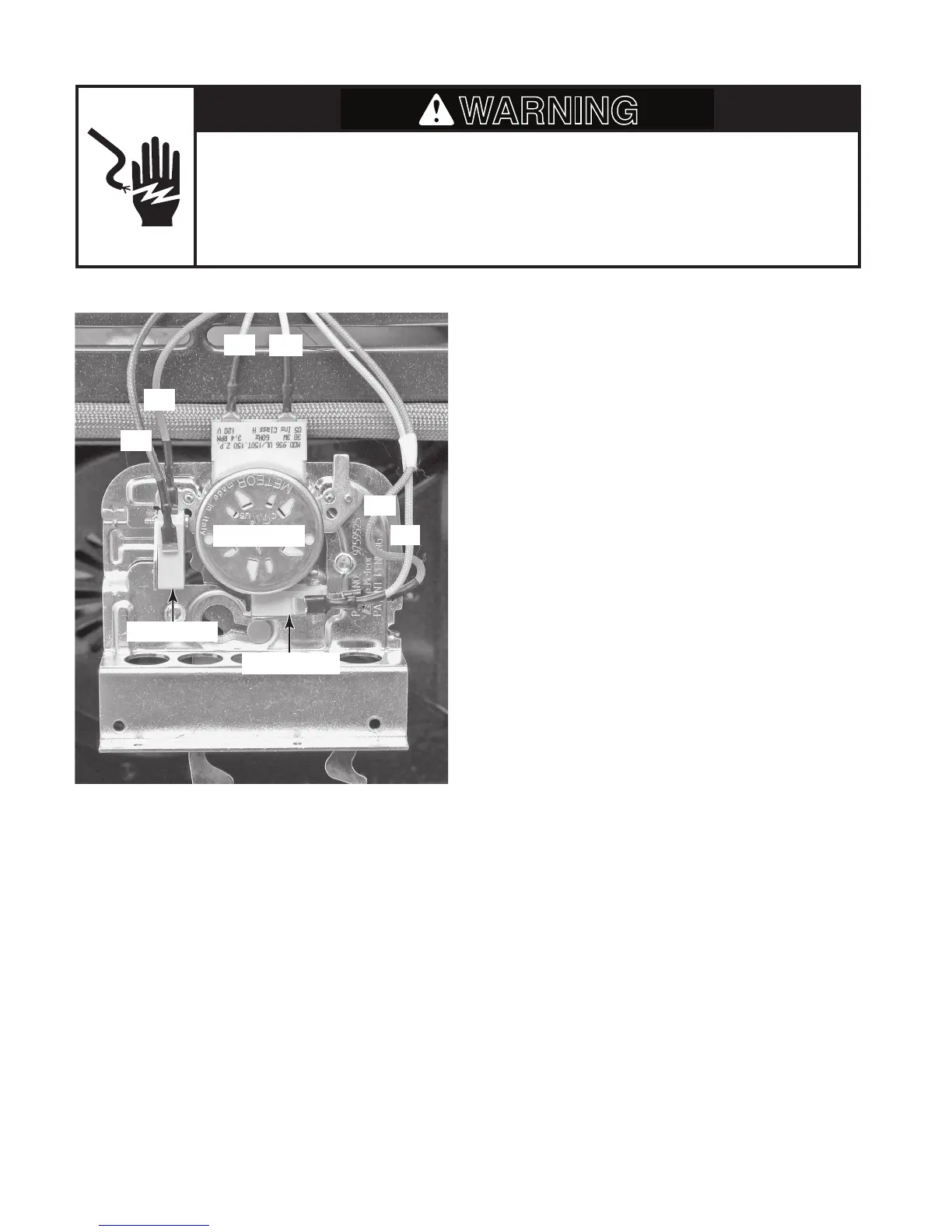

DOOR LATCH ASSEMBLY
Latch Motor
Latch Switch
Door Switch
BR
OR
YL WH
TN
BU
Refer to page 4-7 for the procedure for access-
ing the door latch assembly.
1. Unplug oven or disconnect power.
2. Set the ohmmeter to the R x 1K scale.
3. Touch the ohmmeter test leads to the wire
connector terminals. The meter should
indicate as shown below:
Latch Switch: (BU) and (TN). The meter
should indicate an open circuit (innite)
with door unlocked, and a closed circuit
(0 Ω) with the door locked.
Door Switch: (OR) and (BR). The meter
should indicate an open circuit (innite)
with door unlocked, and a closed circuit
(0 Ω) with the door locked.
Latch Motor: (YL) and the neutral (WH)
terminal. The meter should indicate ap-
proximately 2450 Ω.
