4-2

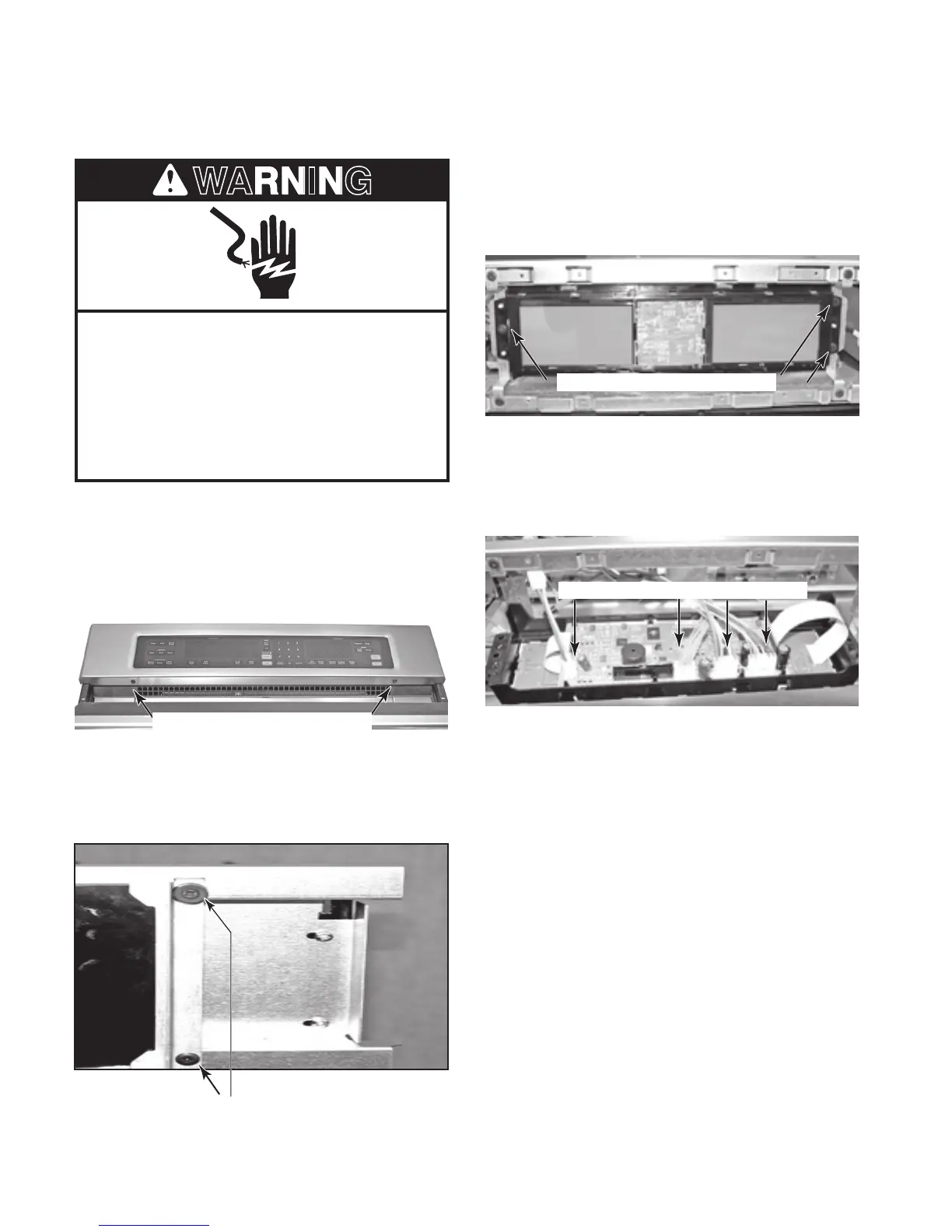

REMOVING THE KEYPAD AND USER INTERFACE BOARD
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug oven or disconnect power.
2. Open the upper oven door, remove the
two at-head screws from the bottom of
the control panel frame, and remove the
frame.
Control Panel Frame Screws
4. Remove the three screws from the front
user interface board and remove the user
interface board from inner frame.
Keypad Retainer Screws
3. Remove two keypad retainer screws on
right side of keypad.
Interface Board Screws
5. Disconnect wire connections from interface
board and remove.
Interface Board Wire Connections
To Next Page
