Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.

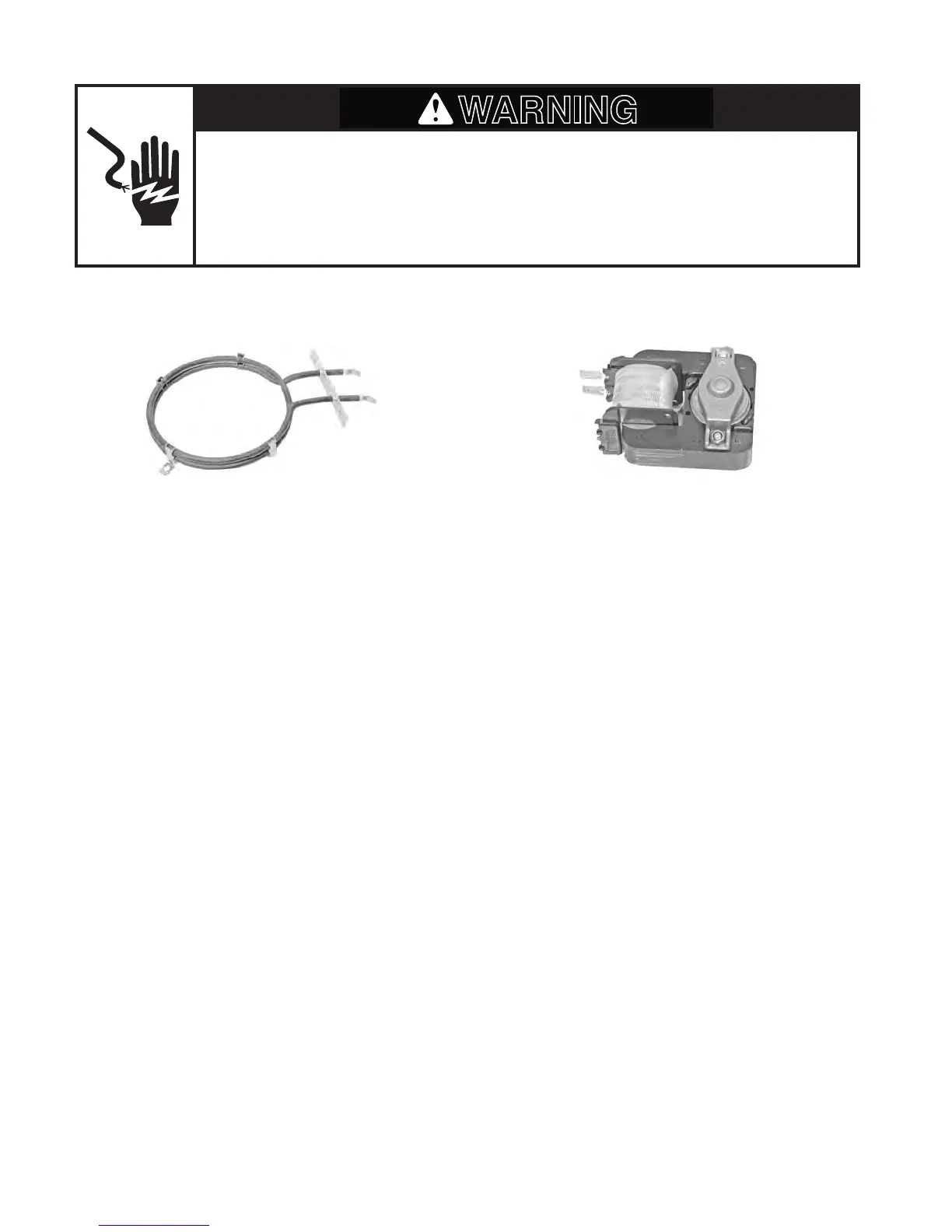

MICROWAVE CONVECTION
RING ELEMENT
Refer to page 4-22 for the procedure for ac-
cessing the microwave convection ring ele-
m
ent.
1. Unplug oven or disconnect power.
2. Disconnect one of the wires from the con-
vection ring element terminals.
3.
Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the con-
vection ring element terminals. The meter
should indicate approximately 12 Ω.
MICROWAVE CONVECTION
FAN MOTOR
Refer to page 4-22 for the procedure for ac-
cessing the microwave convection fan motor.
1. Unplug oven or disconnect power.
2. Disconnect one of the wires from the con-
vection fan motor terminals.
3.
Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the fan
motor terminals. The meter should indicate
approximately 45 Ω.
