Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
HIDDEN BAKE ELEMENT
Refer to page 4-38 for the procedure for ac-
cessing the hidden bake element.
NOTE: The hidden bake element will be tested
at the appliance manager board (see page
4-18).
1. Unplug oven or disconnect power.
2. Set the ohmmeter to the R x 1 scale.
3. Touch the ohmmeter test leads to wire con-
n
ectors T3-3 (RD) and T1-1 (RD). The meter
should indicate between 26 and 30 Ω.

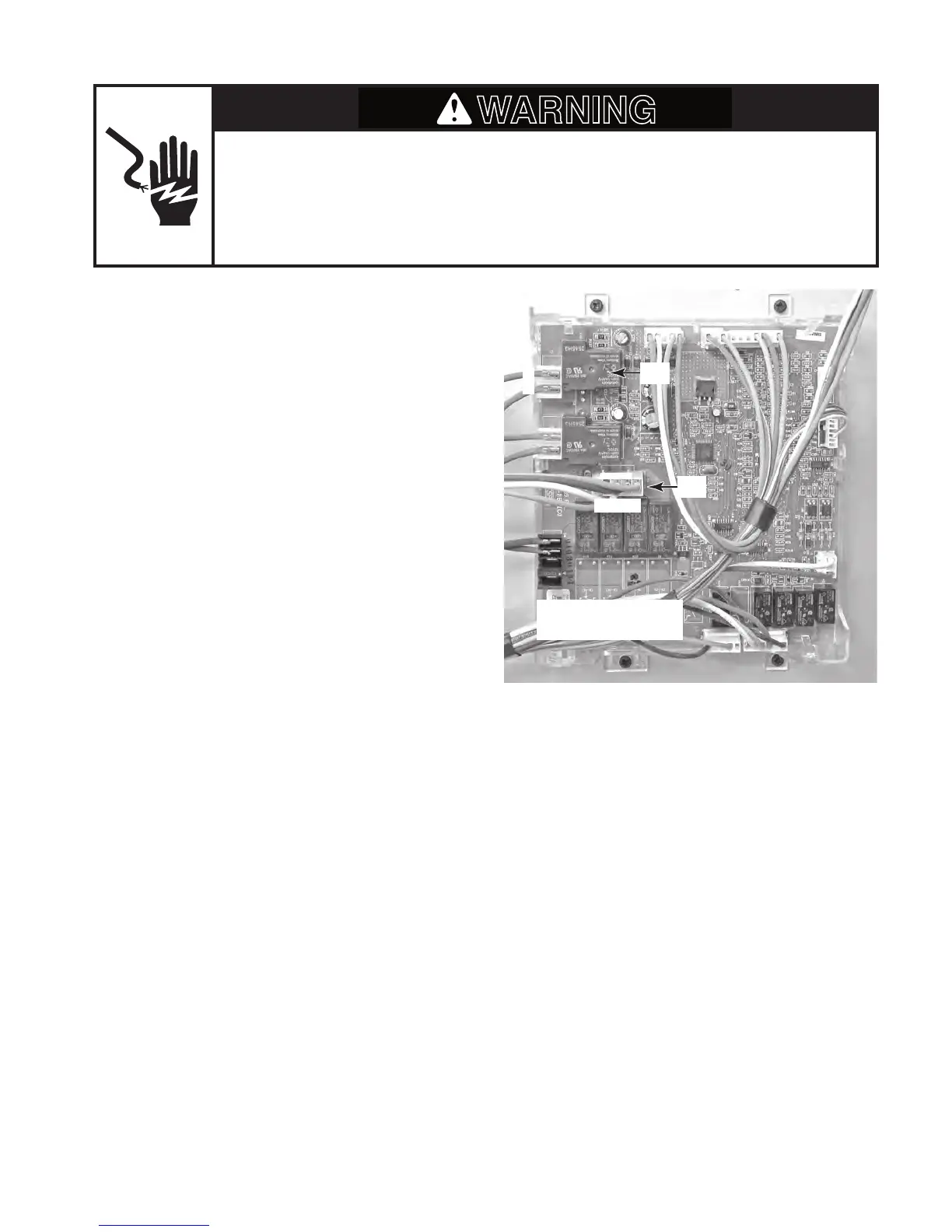

Lower Oven
Appliance Manager
T3
1 2 3 4 5
T1
1 2
