4-3

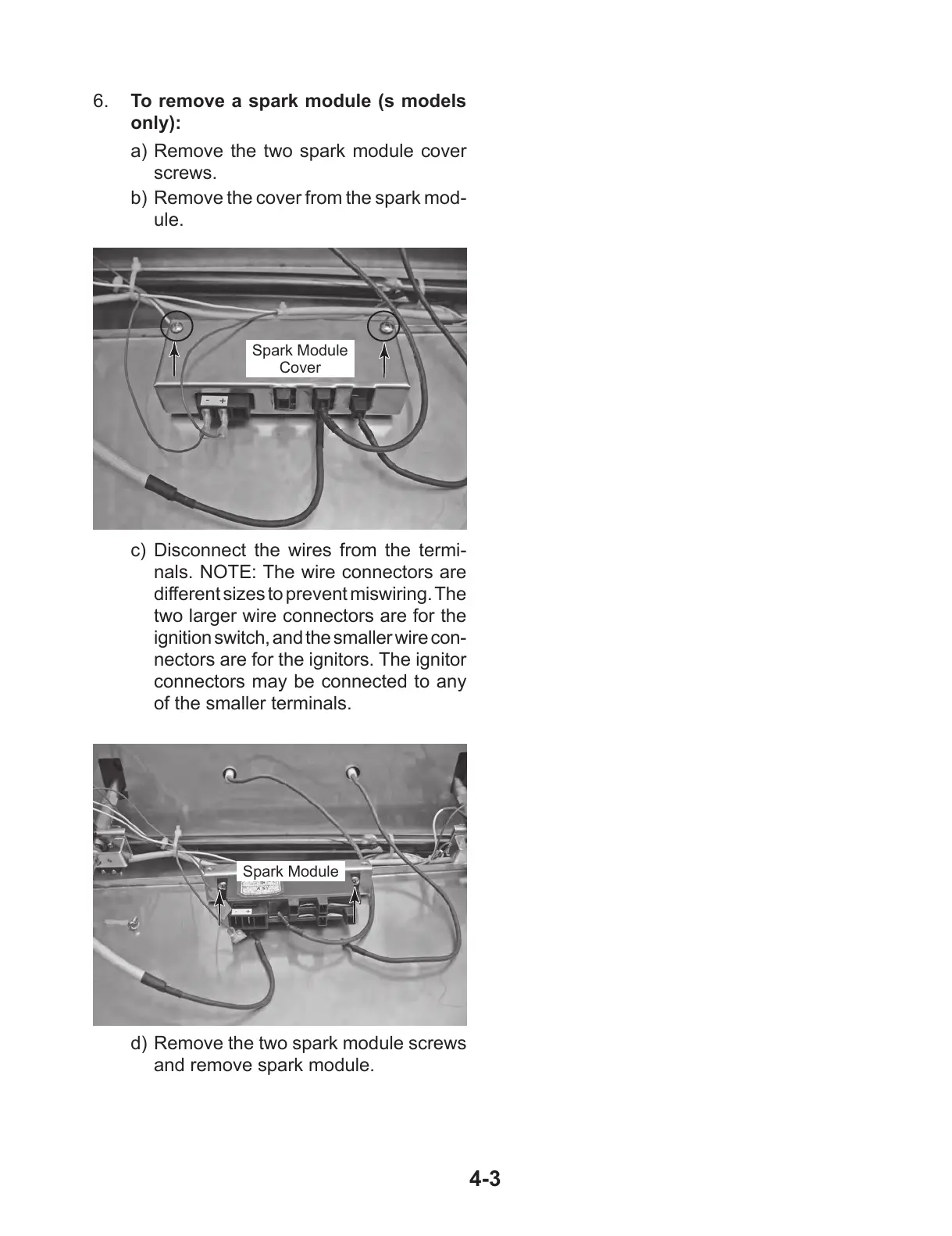

6. To remove a spark module (s models
only):
a) Remove the two spark module cover
screws.
b) Remove the cover from the spark mod-
ule.
c) Disconnect the wires from the termi-
nals. NOTE: The wire connectors are
different sizes to prevent miswiring. The
two larger wire connectors are for the
ignition switch, and the smaller wire con-
nectors are for the ignitors. The ignitor
connectors may be connected to any
of the smaller terminals.
d) Remove the two spark module screws
and remove spark module.
Spark Module
Cover
Spark Module
