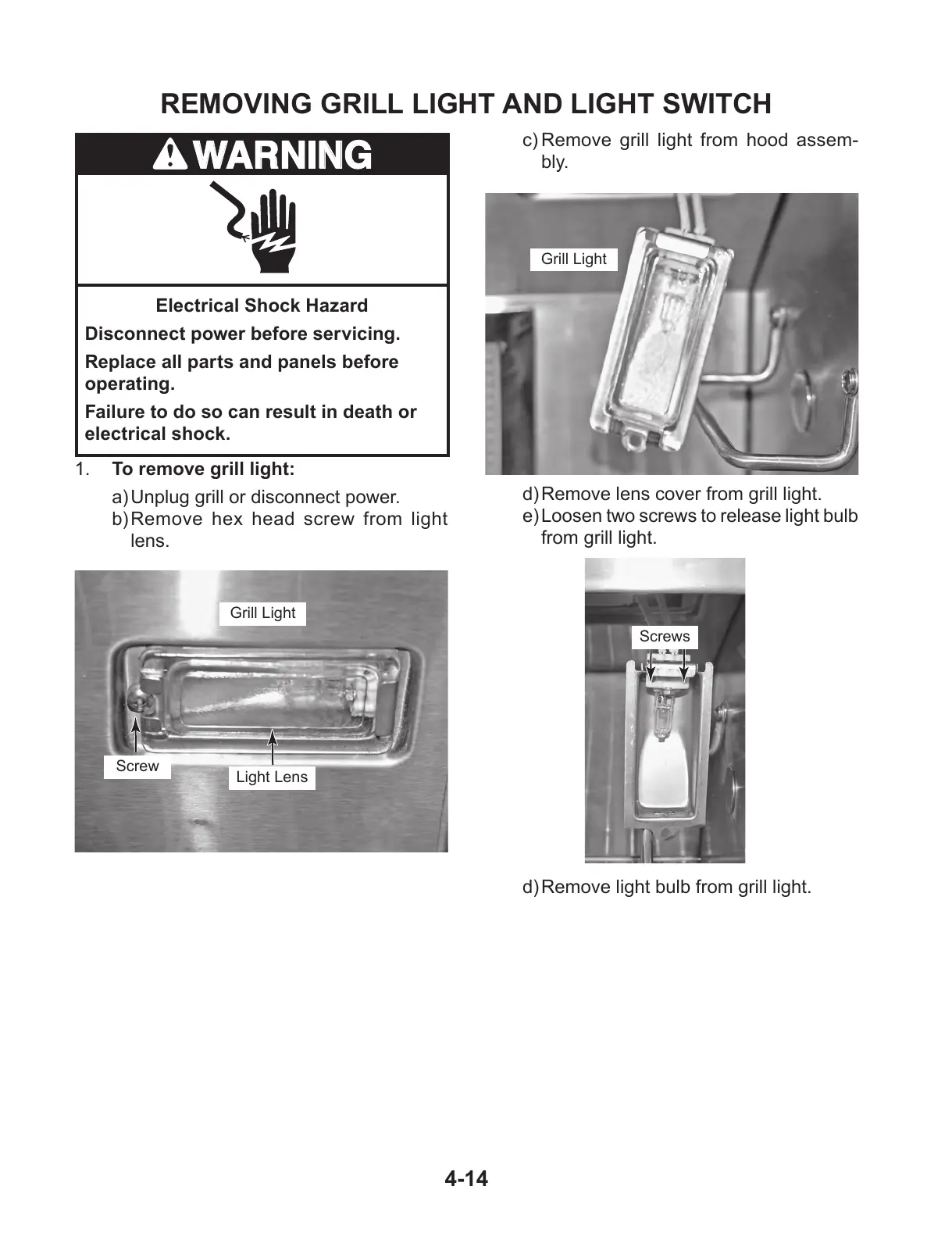

REMOVING GRILL LIGHT AND LIGHT SWITCH
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. To remove grill light:
a) Unplug grill or disconnect power.
b) Remove hex head screw from light
lens.
Screw
Light Lens
Grill Light
c) Remove grill light from hood assem-
bly.
Grill Light
d) Remove lens cover from grill light.
e) Loosen two screws to release light bulb
from grill light.
Screws
d) Remove light bulb from grill light.
